DeWalt DWS780 Manual

11
ENGLISH
Residual Risks
The following risks are inherent to the use of saws:
• Injuries caused by touching the rotatingparts.
In spite of the application of the relevant safety regulations and the
implementation of safety devices, certain residual risks cannot be avoided.
These are:
• Impairment ofhearing.
• Risk of accidents caused by the uncovered parts of the rotating sawblade.
• Risk of injury when changing theblade.
• Risk of squeezing fingers when opening theguards.
• Health hazards caused by breathing dust developed when sawing wood,
especially oak, beech andMDF.
The following factors increase the risk of breathing problems:
• No dust extractor connected when sawingwood.
• Insufficient dust extraction caused by uncleaned exhaustfilters.
Electrical Safety
The electric motor has been designed for one voltage only. Always check
that the power supply corresponds to the voltage on the rating plate.
Your DeWALT tool is double insulated in accordance with
IEC62841; therefore no earth wire is required.
If the supply cord is damaged, it must be replaced only by DeWALT or an
autorised service organisation.
Using an Extension Cable
If an extension cable is required, use an approved 3–core extension cable
suitable for the power input of this tool (see Technical Data).The minimum
conductor size is 1.5 mm
2
; the maximum length is 30 m.
When using a cable reel, always unwind the cablecompletely.
Package Contents
The package contains:
1 Assembled mitre saw
2 Base extentions and installation hardware
1 Blade wrench (see placement in Fig. A2)
1 Saw blade
1 Dustbag
1 Material clamp
1 Instruction manual
• Check for damage to the tool, parts or accessories which may have
occurred duringtransport.
• Take the time to thoroughly read and understand this manual prior
tooperation.

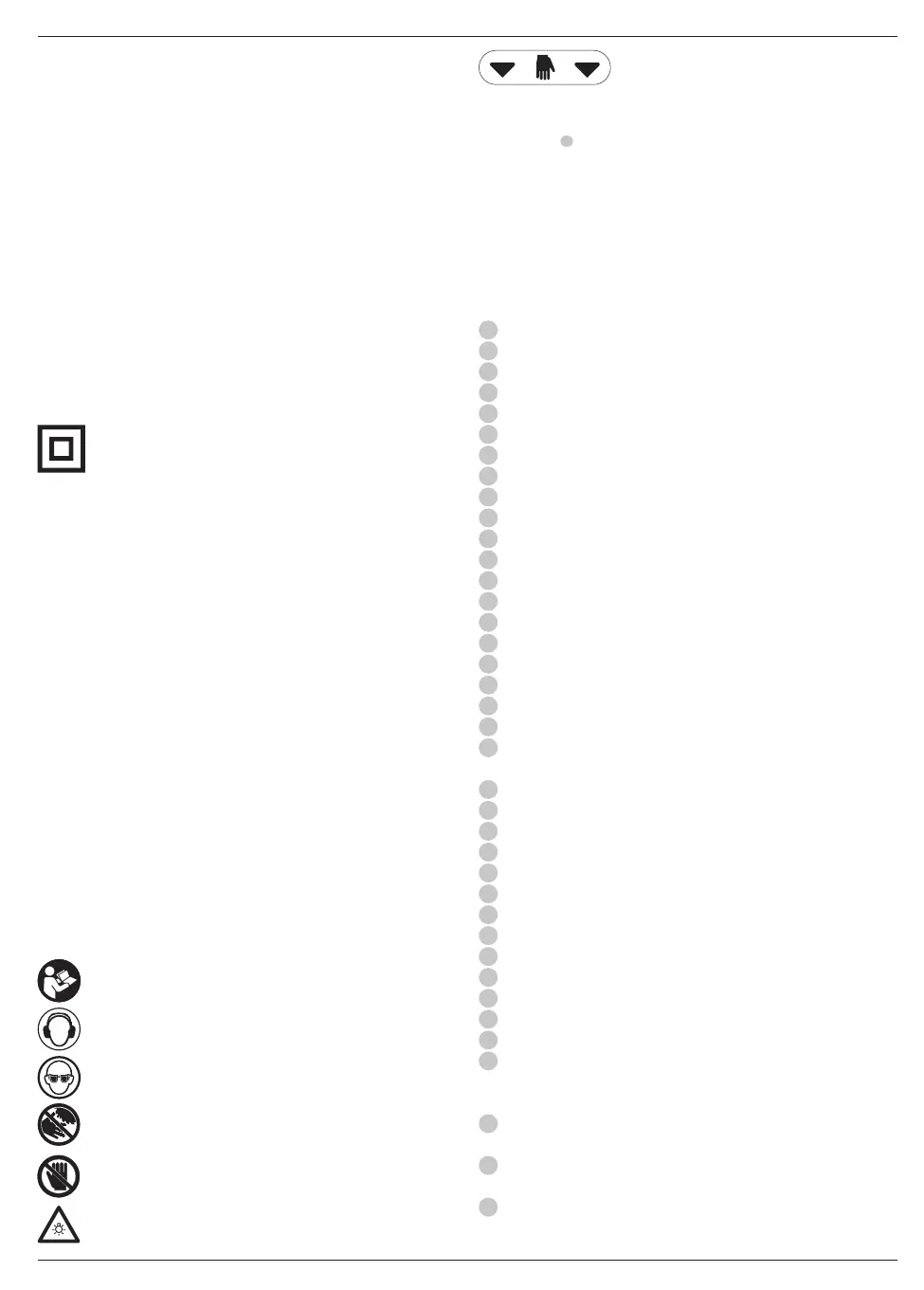

Markings on Tool
The following pictograms are shown on the tool:
Read instruction manual beforeuse.
Wear earprotection.
Wear eyeprotection.
Keep hands away fromblade.
Keep hands 100 mm from either side of saw blade.
Do not stare directly into the light source.
Carryingpoint.
Date Code Position (Fig. A1)
The date code
6
, which also includes the year of manufacture, is printed
into thehousing.
Example:
2019 XX XX
Year of Manufacture
Description (Fig. A1–E)

WARNING: Never modify the power tool or any part of it. Damage or
personal injury couldresult.
Fig. A1
1
Lower guard
2
Operating handle
3
Carrying handle
4
Rail lock knob
5
Rail set screw adjustment
6
Date code
7
Rails
8
Bevel scale
9
Lock down pin
10
Fence adjustment knob
11
Fence
12
Base fence
13
Base extension handles
14
Hand indentation
15
Table
16
Bench mounting holes
17
Mitre scale
18
Dust duct inlet
19
Mitre lock handle
20
Mitre latch button
21
Kerf plate
Fig. A2
22
Trigger switch
23
Lock-off lever
24
Padlock hole
25
XPS on/off switch
26
Wing nut
27
Depth adjustment screw
28
Grooving stop
29
Blade wrench
30
Base
31
Bevel lock knob
32
0° bevel stop override
33
Dust extraction port
34
Belt cover
35
Workpiece clamp (Fig. B)
Optional accessories
Fig. C
36
DW7053-XJ Dustbag
Fig. D
37
DE7023-XJ / DE7033-XJ Leg stand
Fig. E
38
DE7025-XJ Clamp brackets

DeWalt DWS780 Specifications

General

Input power	1675 W
Power source	AC
Blade bore	30 mm
Blade diameter	305 mm
Saw blade included	Yes
Idle speed (max)	3800 RPM
Cutting capacity 45° miter	212 x 76 mm

Weight and Dimensions

Depth	470 mm
Height	396 mm
Weight	24800 g
