A. Panel assembly
B. Nozzle holder
C. Professional Spray gun
D. Wheel
E. Quick-connect
spray wand
F. Frame
G. Engine dipstick/oil plug
H. Engine switch
I. Starter grip
J. Engine
K. Throttle control lever
L. Choke control
M. Fuel valve lever
N. Gas cap
O. Handle assembly
P. High-pressure hose
Q. High-pressure pump
R. Top handle
DXPW4240 PRESSURE WASHER
Refer to the engine instruction manual for location and
operation of other engine controls.
For best results, pump oil designed specifically for
pressure washers is recommended, as these contain a
rust inhibitor and an anti-foaming agent. If this oil is not
available, an SAE 30W non-detergent oil may be used.
H
G
K
L
M
I

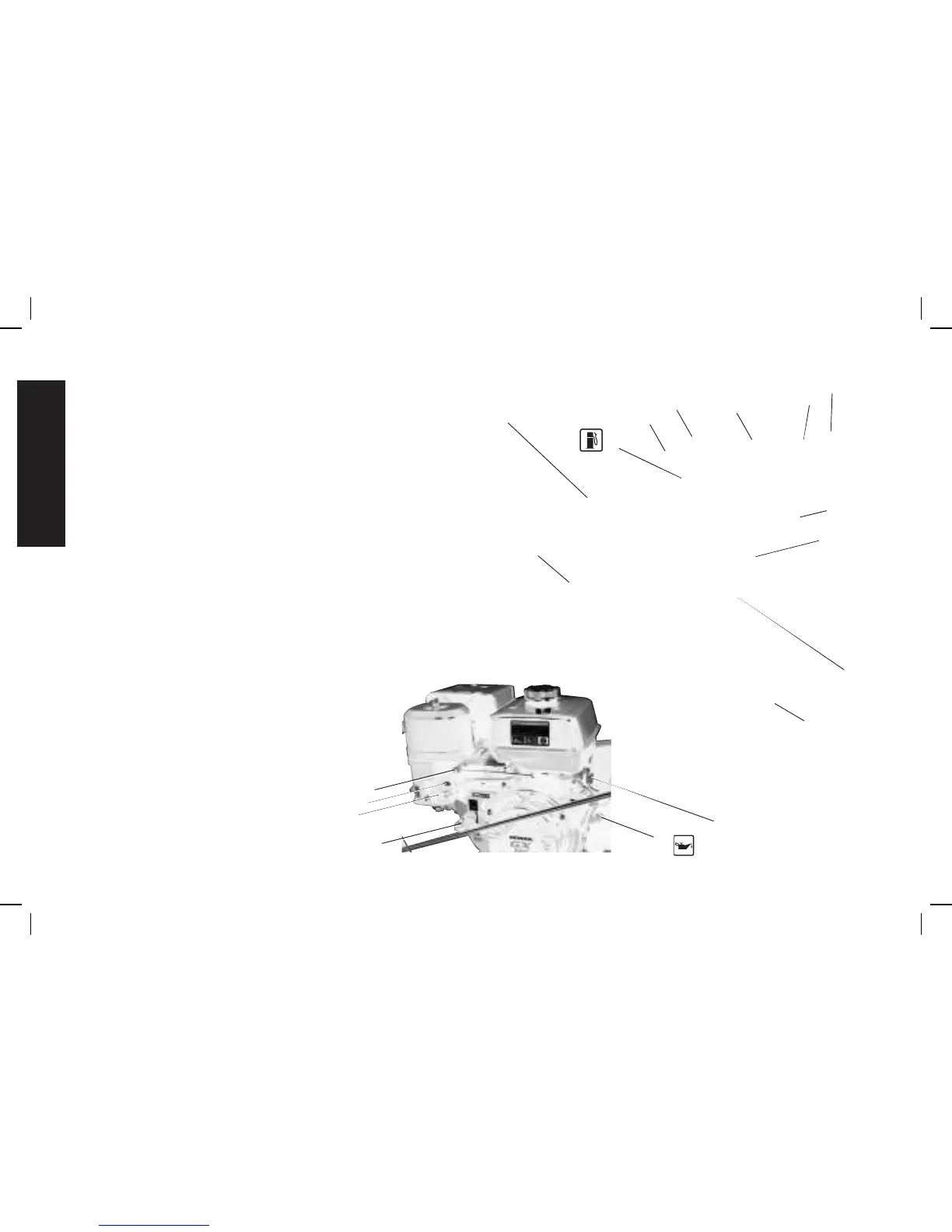

FIG. 1
J
C
E
A
B
Q
N
D
F
O
P
R
