DeWalt XR DCD805 Original Instructions

9
ENGLISH
2. For long storage, it is recommended to store a fully charged
battery pack in a cool, dry place out of the charger for
optimalresults.
NOTE: Battery packs should not be stored completely
depleted of charge. The battery pack will need to be recharged
beforeuse.

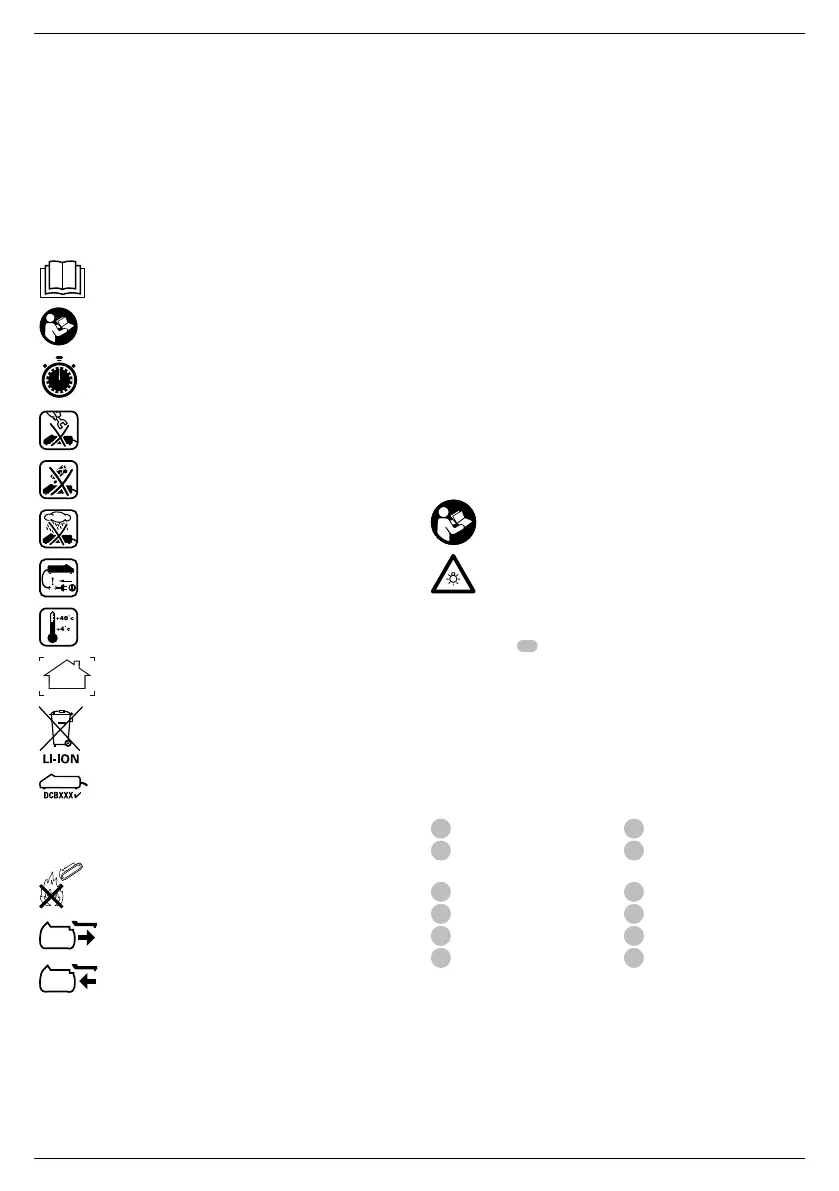

Labels on Charger and Battery Pack
In addition to the pictographs used in this manual, the labels
on the charger and the battery pack may show the following
pictographs:
Read instruction manual beforeuse.
See Technical Data for chargingtime.
Do not probe with conductiveobjects.
Do not charge damaged batterypacks.
Do not expose to water.
Have defective cords replacedimmediately.
Charge only between 4 ˚C and 40 ˚C.
Only for indooruse.
Discard the battery pack with due care for
theenvironment.
Charge DeWALT battery packs only with designated
DeWALT chargers. Charging battery packs other
than the designated DeWALT batteries with a
DeWALT charger may make them burst or lead to
other dangeroussituations.
Do not incinerate the batterypack.
USE (without transport cap). Example: Wh rating
indicates 108 Wh (1 battery with 108 Wh).
TRANSPORT (with built-in transport cap). Example:
Wh rating indicates 3 x 36 Wh (3batteries of 36Wh).
Battery Type
The DCF850 operates on an 18 volt batterypack.
These battery packs may be used: DCB181, DCB182, DCB183,
DCB183B, DCB184, DCB184B, DCB185, DCB187, DCB189,
DCB546, DCB547, DCB548. Refer to Technical Data for
moreinformation.
Package Contents
The package contains:
1 Impact driver
1 Charger
1 Li-Ion battery pack (C1, D1, L1, M1, P1, S1, T1, X1, Y1 models)
2 Li-Ion battery packs (C2, D2, L2, M2, P2, S2, T2, X2, Y2 models)
3 Li-Ion battery packs (C3, D3, L3, M3, P3, S3, T3, X3, Y3 models)
1 Magnetic bit holder
1 Belt hook
1 Kitbox
1 Instruction manual
1 Tool Connect
TM
App instruction manual (Bmodels)
NOTE: Battery packs, chargers and kitboxes are not included
with N-models.
• Check for damage to the tool, parts or accessories which may
have occurred duringtransport.
• Take the time to thoroughly read and understand this manual
prior tooperation.
Markings on Tool
The following pictograms are shown on the tool:
Read instruction manual beforeuse.
Visible radiation. Do not stare intolight.
Date Code Position (Fig. B)
The date code
14
, which also includes the year of manufacture,
is printed into thehousing.
Example:
2019 XX XX
Year of Manufacture
Description (Fig. A)

WARNING: Never modify the power tool or any part of it.
Damage or personal injury couldresult.
1
Trigger switch
2
Forward/reverse control
button
3
Chuck collar
4
6.35 mm hex chuck
5
Battery release button
6
Battery pack
7
Worklights
8
Belt hook (optional
accessory)
9
Mounting screw
10
Main handle
11
Mode selector
12
Magnetic bit holder
Intended Use
This impact driver is designed for professional impact
screwdriving applications. The impact function makes this
tool particularly useful for driving fasteners in wood, metal
andconcrete.
DO NOT use under wet conditions or in the presence of
flammable liquids orgases.
This impact driver is a professional powertool.
