Power supply ground loops

USER MANUAL



5.2. Isolated power supply



Another way of protecting the DAQ device is the usage of the “DS isoPower 75W”. This box includes a

DC/DC converter which galvanically isolates the power supply input of the DAQ System (the example

shows the DEWE-43 V). Due to the isolation, no error current is possible through the supply line.





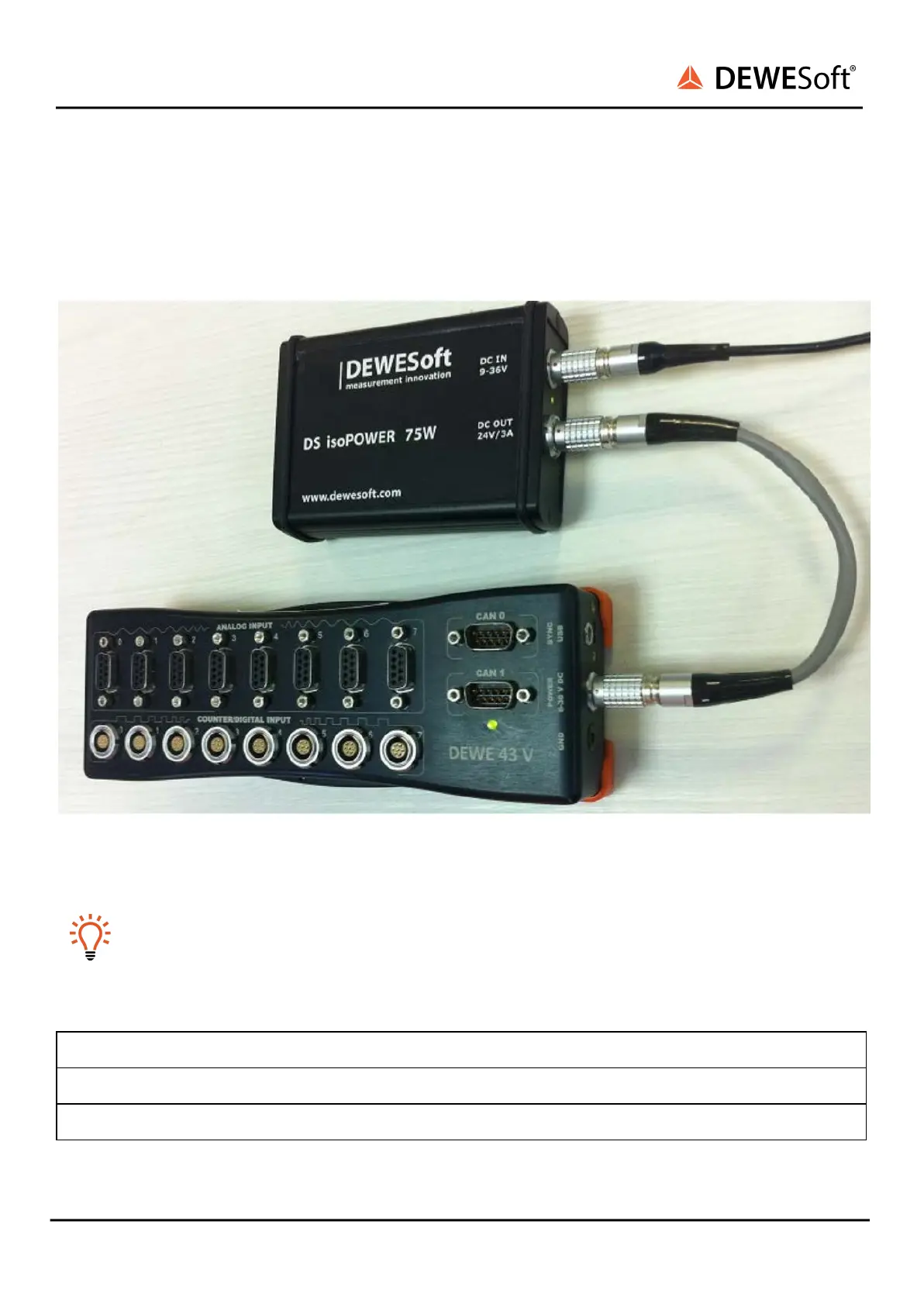

Image 6: Galvanically isolated power supply



The final result is the same: reverse polarity protection of the supply line.



Hint

This isolated power supply device is useful only with an older hardware. All new Dewesoft

devices have the power supply input isolated.



DEWE-43 Hardware revisions:



 

V20-1 7/12 

DEWE-43 V

Initial version

DEWE-43 A

Added isolated CAN ports

DEWE-43 A ISO-POWER

Added isolated power supply
