Deye SUN-5K-SG03LP1-EU User Manual

ON
1 2
ON
1 2
ON
1 2
- 25 -
Ground

L wireCAN N wire PE wire
Battery pack
Grid
CAN/RS 485
L1 N PE L2 L3
LoadGEN Grid LoadGEN Grid LoadGEN Grid

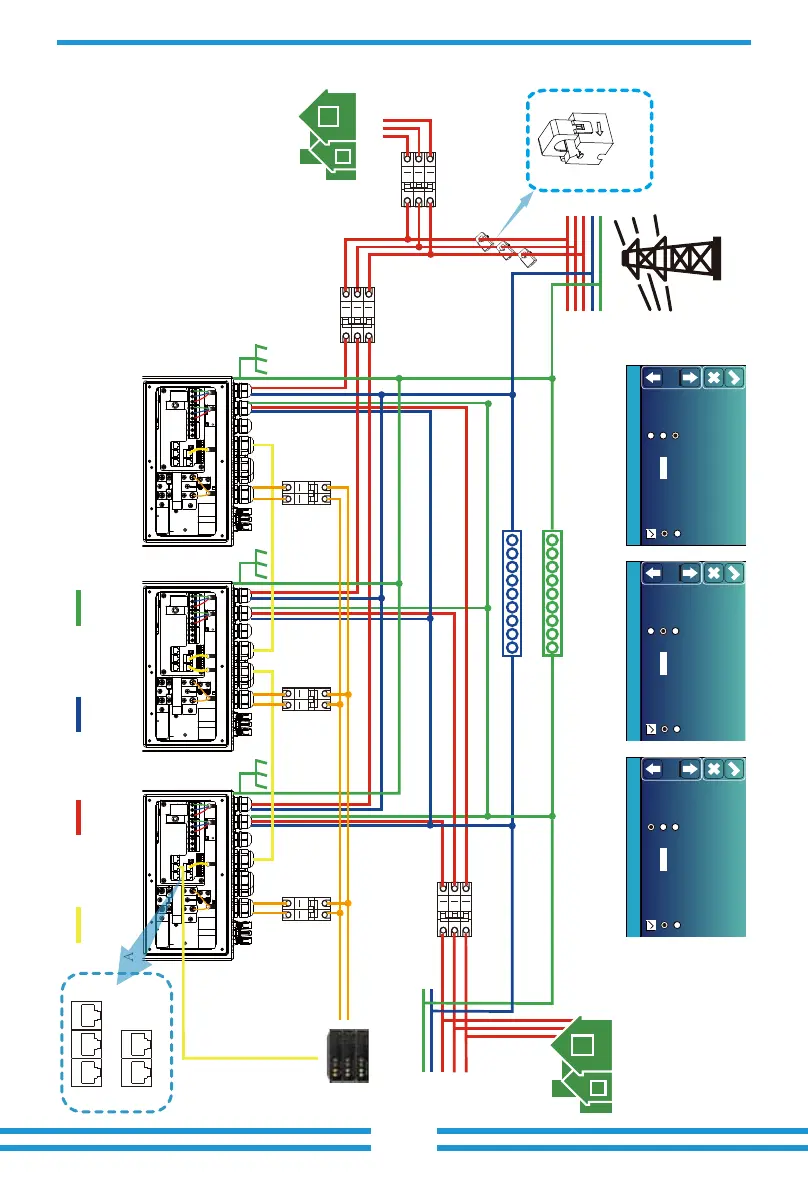

A Phase Inverter No.1(master) B Phase Inverter No.2(master) C Phase Inverter No.3(master)
Backup Load
Parallel
Master Slave
Modbus SN
01
A Phase B Phase C Phase
Advanced Function
Paral.
Set3
Parallel
Master Slave
Modbus SN
02
A Phase B Phase C Phase
Advanced Function
Paral.
Set3
Parallel
Master Slave
Modbus SN
03
A Phase B Phase C Phase
Advanced Function
Paral.
Set3
A Phase Master inverter B Phase Master inverter C Phase Master inverter
Home load
L3 L2 L1
N-BAR E-BAR
④ AC Breaker
⑤ AC Breaker
⑥ AC Breaker
①②③ DC Breaker for battery
① DC Breaker
② DC Breaker
③ DC Breaker
CT1
CT2 CT3
SUN 3K-SG: 150A DC breaker SUN 3.6K-SG: 150A DC breaker SUN 5K-SG: 150A DC breaker SUN 6K-SG: 200A DC breaker ⑤ AC Breaker for grid port SUN 3K-SG: 40A AC breaker SUN 3.6K-SG: 40A AC breaker SUN 5K-SG: 40A AC breaker SUN 6K-SG: 40A AC breaker ④
AC Breaker for backup load
SUN 3K-SG: 40A AC breaker SUN 3.6K-SG: 40A AC breaker SUN 5K-SG: 40A AC breaker SUN 6K-SG: 40A AC breaker
⑥ AC Breaker Depends on Homeload
CT
Arrow pointing
to inverter
RS 485/ METER
parallel_1 parallel_2
BMS 485/ CAN
DRMs
