6. CONNECTION AND OPERATION
Operation
1) Connect PCs to USB-B ports of the unit with USB cables;
Respectively connect MIC and stereo ports of the PCs to those
(above the “HDMI In”) of the unit with 3.5mm audio cables;
Connect PCs to “HDMI In” ports of the unit with HDMI cables.
2) Connect keyboard and mouse to the USB-A ports on the back
panel of the unit; Respectively connect microphones and
amplifiers to the mic and stereo ports (on the front
panel/above “HDMI Out”) of the unit with 3.5mm audio cables;
Connect a display to “HDMI Out” of the unit with HDMI cable.
3) Power the unit with DC 5V and press the power button, the
“Power” indicator lights up. The USB-B ports are connected
normally and the “Online” indicators light up. “Select” lights up
to indicate the current selected PC.
4) Press the buttons on the front panel of the unit to select input,
the corresponding “Select” lights up. After selection, the display
shows corresponding image, and the selected PC can be
controlled by a set of keyboard and mouse.

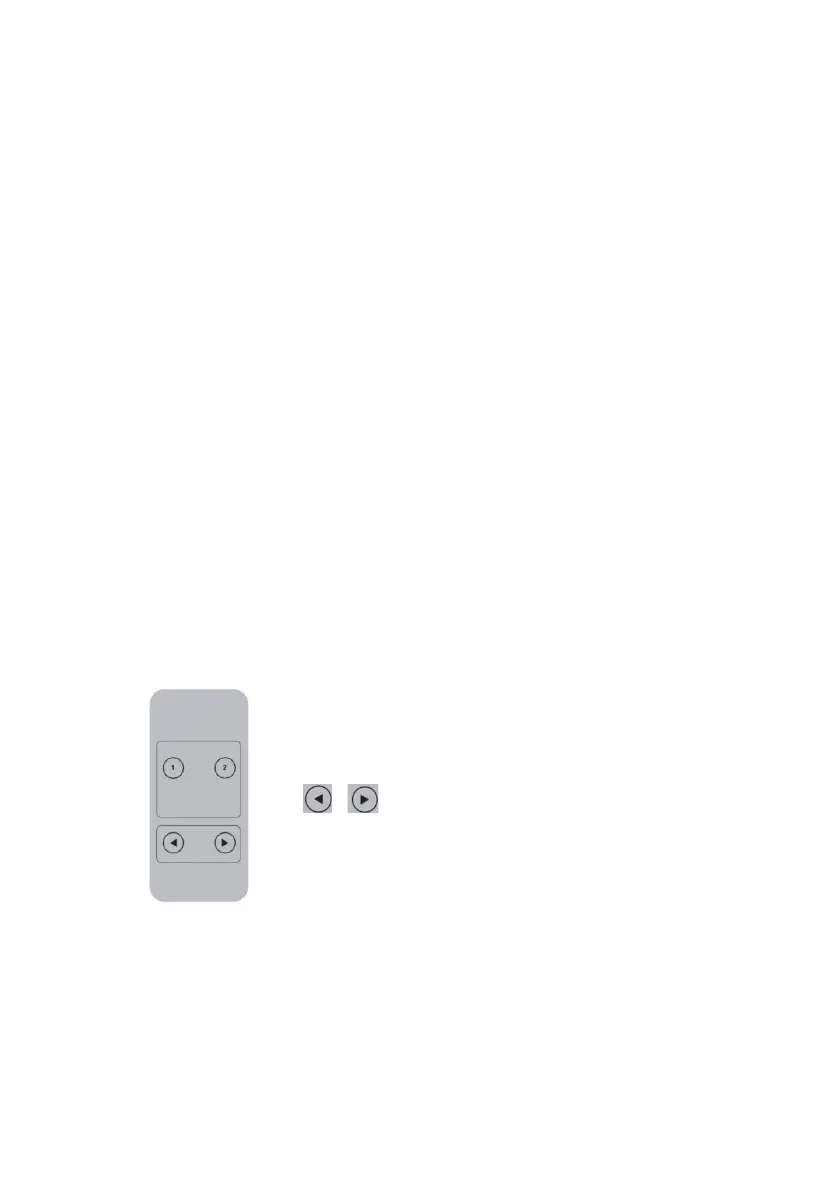

5) Remote control works the same as manual buttons.
1,2: For input selection. 1 specifies PC1 and 2
specifies PC2.
, : For loop switching. Order: PC1→PC2
→PC1→….
6) For external function, connect printer/scanner/U-disk to the
USB-A ports on the front panel of the unit.
Special Function Operation:
1) Mouse traversal function:
