Dish Network ViP 722 User Manual

Satellite Receiver
21

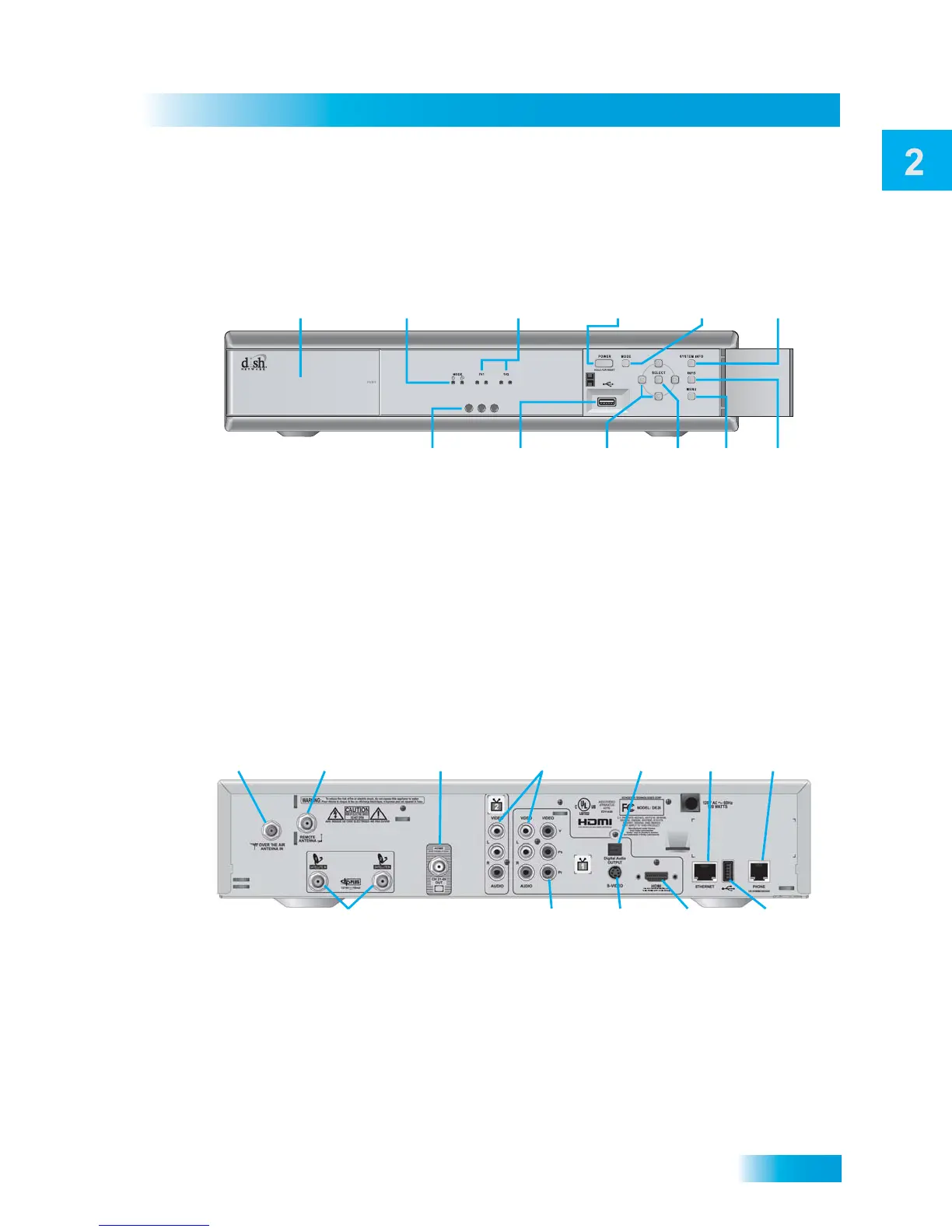

Satellite Receiver Front Panel
Satellite Receiver Front Panel
Satellite Receiver Back Panel
*Some USB multimedia devices may not be compatible.
Smart Card Door
Slot for a future
smart card
Dual and Single
Mode Indicators
Left light indicates
Single Mode, right
indicates Dual Mode
TV1 and TV2
Power and
Record Lights
Left light indicates
power is on, right red
light indicates recording
Power
Turns receiver
power on/off;
press and hold
to reset receiver
Mode
Switches receiver
between Single
and Dual Mode
System Info
Displays the
System
Information
Screen
Infrared
Sensor/Blaster
Receives IR Signals
from your remote and
sends IR signals to
other components
USB Port
Connection to
other
multimedia
devices*
Arrows
Change channels
up/down, and move
around in on-screen
menus and guides
Menu
Displays
the Main
Menu
Select
Selects
menu
items
Info
Displays
program
information
A
ntenna/CATV
Input
Connection to
over-the-air
antenna
Remote
Antenna
Connection to
remote control antenna
In-home
distribution
output
Audio/Video
Output TV1/TV2
High quality
standard
definition
connection
to your TV
audio and video
input
Digital Audio
Output
connection to
a high-quality
digital sound
decoding system
YPbPr/
Component
Output
Optional
connection to
your high
definition TV
video input
Satellite In
Connection to
your satellite
dish
S-Video
High quality
standard-
definition
connection
to your TV
video input
HDMI Output
Provides digital
audio and video
to an HDTV
Ethernet
Port
For future
use
USB
Port
Connect to
other
multimedia
devices*
Phone
Jack
Connect
to your
telephone
line
Note: Your receiver may be a differerent color than the unit pictured in the diagram.
