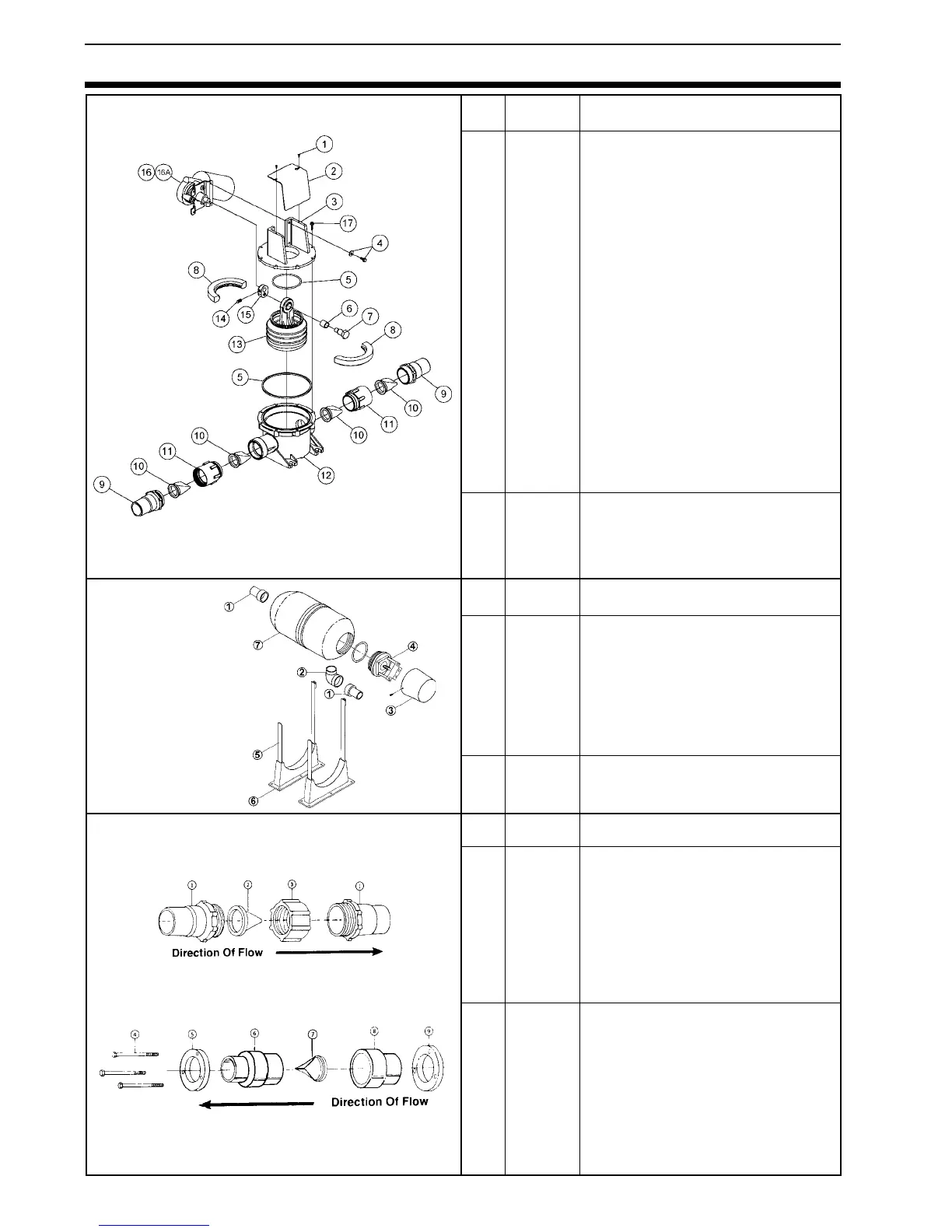

PARTS LIST
VACUUM PUMP, S-SERIES
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16A
17
-
600340237
385640239
600341506
600342332
385310151
600340664
600343006
600347807
600347800
385347802
600347801
600341504
385230980
600347788
600344470
385310245
385310246
600341503
385310249
Cover Screw, #4 x 3/8" Pan Hd SS
Pump Cover
Top Closure
Hex Head Screw, #10-32 x ½" SS
O-Ring Replacement Kit
Bushing, Bellows
Hex Head Shoulder Screw, ½" x .687 x 3/8"-16
Bellows Clamp
Valve Nipple
½" Duckbill Valve (2)
Valve Adapter
Pump Body
Bellows Assembly (incl. item 6)
Set Screw, ¼ -28 x 5/16", ½" Dog Point
Eccentric
Motor, 12VDC
Motor, 24VDC
Hex Washer Head Screw #10-12 x 7/8", SS
Not Shown
Pump Assembly Less Motor
(Includes items 3, 5, 6, 8 through 13)
Item Part No. Description
NOTE: S-Series pump valve adapter and nipple (items 9 and 11)
have right-hand threads (clockwise to tighten, counterclockwise
to loosen).
VACUUM
TANK
1
2
3
4
5
6
7
307341513
307341161
600348037
385318032
600346835
600348361
385310017
Insert Adapter
Street Elbow
Vacuum Switch Cover
Vacuum Switch Assembly
Snap Lock Clamp
Mounting Bracket
Vacuum Tank Kit
(Includes 2 each Item 1 and 1 each Item 2)
Item Part No. Description
1
2
3
4
5
6
7
8
9
600347800
600347802
600347839
600341015
385640116
385230082
600348702
385640113
385640115
308238696
308300011
Valve Nipple
1 ½" Duckbill Valve
Valve Adapter
Hex Head Screw
Pilot Collar
Male Valve Housing Assembly
2" Duckbill Valve
Female Valve Housing
Threaded Collar
Small In-line Check Valve
(includes items 1 through 3)
Large In-line Check Valve
(includes items 4 through 9)
Item Part No. Description
SMALL IN-LINE CHECK VALVE
LARGE IN-LINE CHECK VALVE
