General Information Americana and New Generation Refrigerators
4.3 Component Locations
This section provides the general component locations
for each refrigerator model. Actual model component
locations may vary.
g
d
s
q
u
t
e
o
i
;
t
w
k
l
a
f
y
r
j
h

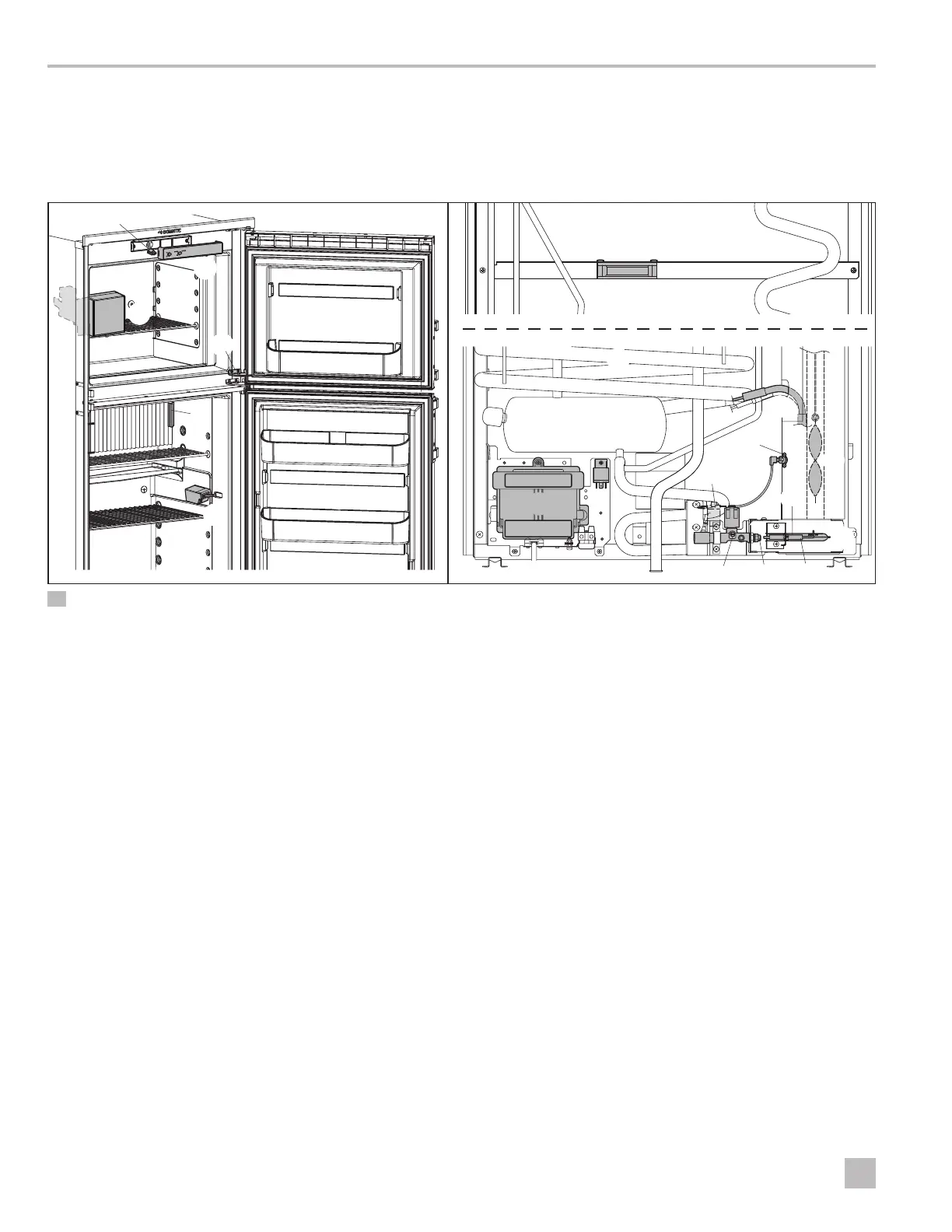

1 Americana Model Component Locations
q
Ice Maker
y
Thermistor
s
Heating Element
j
Orifice
w
Communication Wire Harness
u
Interior Light
d
Flue Baffle
k
Gas Valve
e
Upper Control Module
i
Ventilator Fan/Switch
f
Thermocouple
l
Thermal Fuse
r
Door Hinge
o
Cooling Unit
g
Burner Assembly
;
Lower Control Module
t
Doors
a
Thermo Fuse
h
Electrode
2)
Water Valve (not shown)
