- 7 -
DRAIN WATER HOSE
Drill a hole through flooring. To avoid damage on the hose,
the hole must be positioned so that the hose doesn’t touch the
boiler casing. Seal around the hose that goes through the drilled
hole and ensure that it does not kink when run through the
floor. Check to make sure that the supplied hose is long enough
in order for the water to drain outside of the vehicle. If not, the
installer will have to supply the extra length of hose.
Hole for drain
water hose
Boiler
casing
Hose
INSTALLATION PROCEDURE
b) Secure the refrigerator and the lower front strip
with two screws.
2. Two screws installed in the top frame.
3. One screw installed at the back in the rear base.
GENERAL INSTRUCTIONS
•Make sure the floor is solid and level.
•Do not install the appliance directly on carpeting. Carpet-
ing must be removed or protected by a metal or wood panel
beneath the appliance, which extends at least full width and
depth of the appliance.
•The refrigerator must be level and installed in a substantial
enclosure.

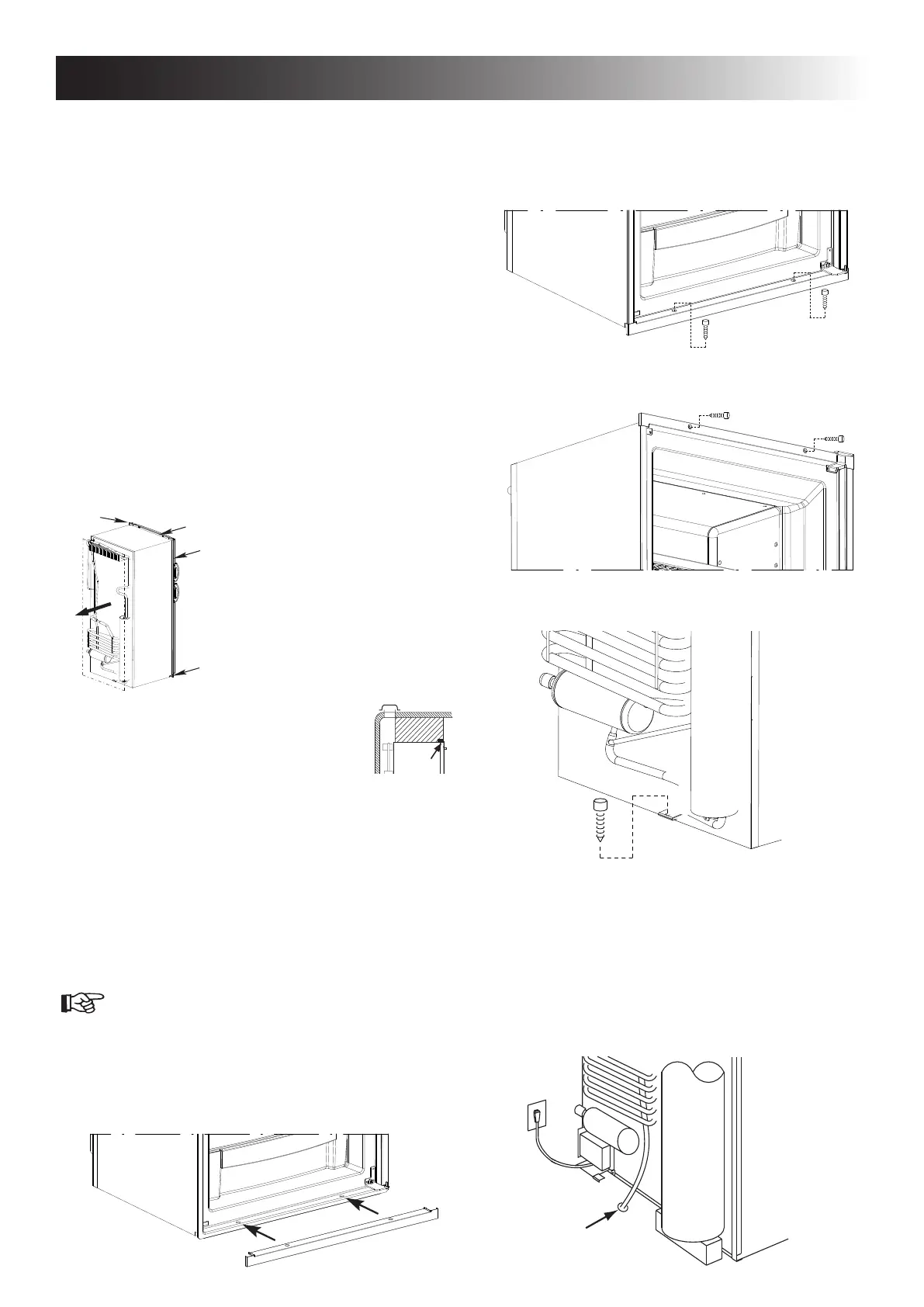

INSTALLING AND SECURING THE
REFRIGERATOR
When installing the refrigerator in the enclosure, all areas with-
in the recess have to be sealed. Verify that there is a complete
seal between the front frame of the refrigerator and the top,
sides and bottom of the enclosure. A length of sealing strip is
applied to the rear surface of the front frame for this purpose.
The sealing strip should provide a complete isolation of the
appliance’s combustion system from the vehicle interior.
Be careful not to damage the
sealing strip when the
refrigerator is put in place!
Wood strip
A wood strip must be in place across the upper
opening of the enclosure. The top frame of the
refrigerator will be anchored to the wood strip
with screws.
After the refrigerator has been installed (ensuring a combustion
seal at the front frame), the refrigerator must be secured in the
enclosure with five screws (not included). Furthermore, a lower
front strip (shipped as a loose part) should be attached.
NOTE! It is important to follow the sequence in securing
the refrigerator since failure in doing that can cause leakage
between the frame and cabinet!
Install the five screws in the following order:
1. Two screws installed through the front base and
installation of the lower front strip.
a) Install the lower front strip by sliding it under the
bottom hinge plate. The hinge plate can be on the
right or left side depending on the door swing.
Once the lower front strip is slipped under the
hinge, the part is possible to swing into place.
