3
5.VENTILATION HEIGHTS
Refer to FIG 1., Page 2
Installation with roof Minimum Ventilation
vent and lower side vent heights in:
REFRIGERATOR INCHES MM
RM2611 54 1372
RM2811 60 1524
LOWER VENT CUTOUT
UPPER VENT CUTOUT
5-1/2"
21-9/16"
13-3/4"
23-3/4"
NOTE: All cutout dimensions are +/– 1/8".

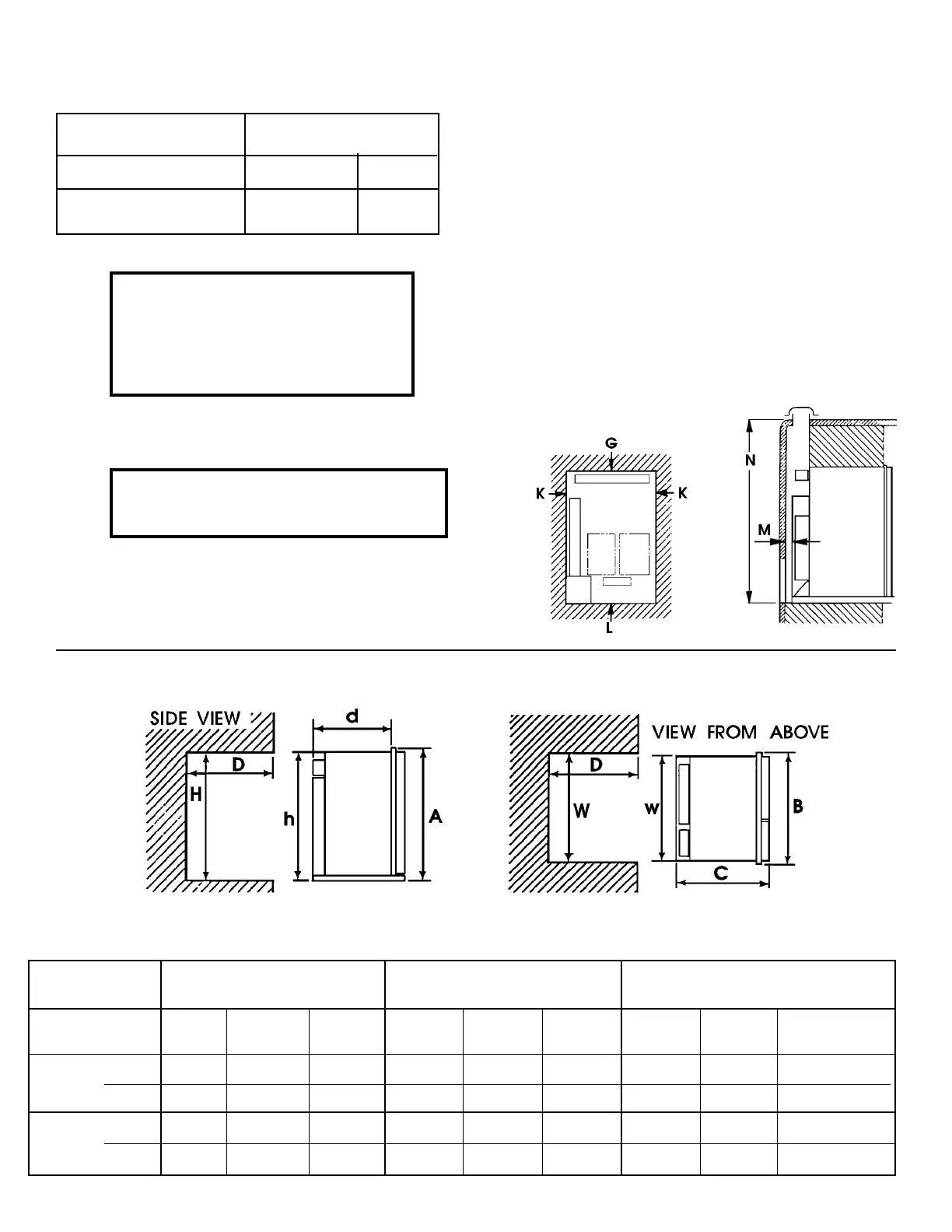

6.CLEARANCES
Minimum clearances in inches to combustible materials are:
G: Top 0"
K: Side 0"
L: Bottom 0"
M: Rear 0"
N: See NOTE
NOTE: Clearance "M" is between the rearmost part of the
refrigerator and the wall behind the refrigerator.
NOTE: Clearance "N" is the distance between the bottom
of the lower vent to the roof material. For ventilation
height, refer to
Section A. Installation, Item 5. Ventilation
Heights
. See FIGS. 1 & 2.
FIG. 2
FIG. 3
Refrigerator Overall Installation Recess
Model Dimensions Dimensions Dimensions
Height Width Depth Height Width Depth Height Width Depth
ABChwdHWD
RM2611 (Inches) 51 22-23/32 24-9/16 49-7/32 21-17/32 23-19/32 49-17/32 21-13/16 24-3/32
(mm) 1295 577 624 1250 547 599 1258 544 612
RM2811 (Inches) 56-13/16 24-39/64 24-9/16 55-1/8 23-7/16 23-19/32 55-7/16 23-11/16 24-3/32
(mm) 1443 625 624 1400 595 599 1408 601 612
