1.4. Engine Assembly

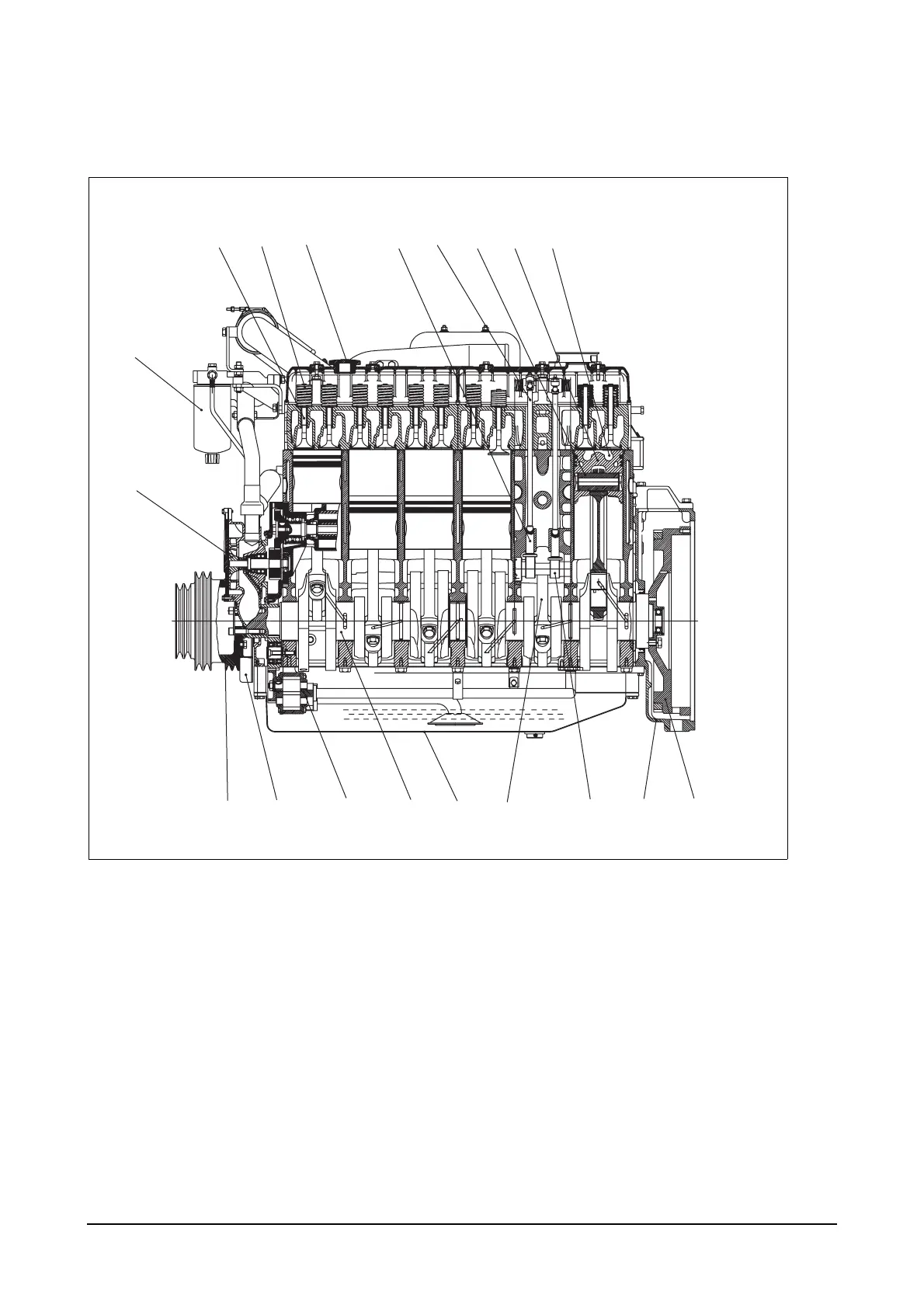

1.4.1. Engine sectional view (longitudinal)
1. Cooling water pump 8. Piston pin 15. Oil pan
2. Fuel filter 9. Piston 16. Connecting rod
3. Valve 10. Chamber 17. Cam shaft
4. Valve spring 11. Crank shaft pulley 18. Flywheel housing
5. Oil filler 12. Vibration damper 19. Flywheel
6. Tappet 13. Oil pump
7. Push rod 14. Crank shaft
2
11
43 5 67 8910
12 13 14 15 16 17 18 19
1
EQM8018I
