3 K0341 Revision B
English
Operation
Keys
The key switches the loop calibrator on and off. Press and hold for 2
seconds.
The key changes the measure or source operating mode. Pressing
the keys makes menu selections, sets numerical values and
controls step and ramp functions (up/down).
The select advanced functions shown on the bottom of the
display. When no key is pressed for 10 minutes, the loop calibrator times
o
u
t and switches off. To disable this automatic time out, select autpower
down in the set-up menu.

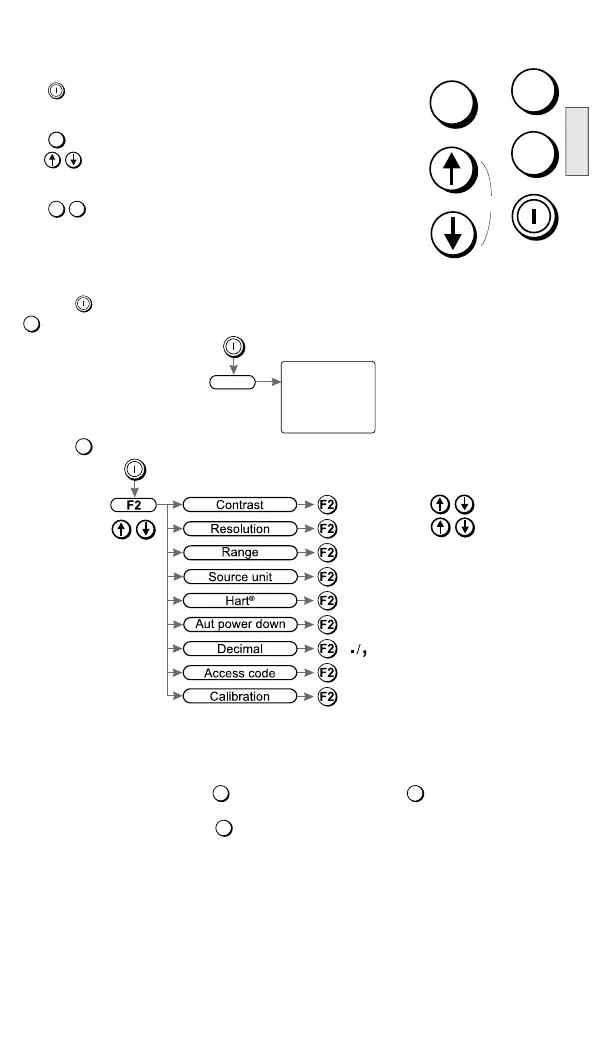

Operating Modes
Pressing switches the instrument on and the display shows the start-up sequence. Pressing
, at this time, the display shows the information screen:
Pressing , at this time, the display shows the set-up screen:
The calibrator can be used in two modes measure or source.
Measure mode
The display shows the measured value; depending on the settings made in set-up and advanced
settings:
When measuring current pressing enables linear or flow, pressing enables mA or % (value
of 4 to 20 mA or 0 to 20 mA).
When measuring voltage pressing changes the resolution between 0.00V and 0.000V.
To measure continuity the displays shows an open or closed switch symbol with an audible signal
o
n
switch closure.
F1
F1
Information
Serial number
VERSION
CAL. DATE
HART
BATTERY
F2
adjust
adjust
4-20mA/0-20mA
mA/%
ON/OFF
ON/OFF
menu
menu
F1
F2
