Dual XD1228 User Manual

3

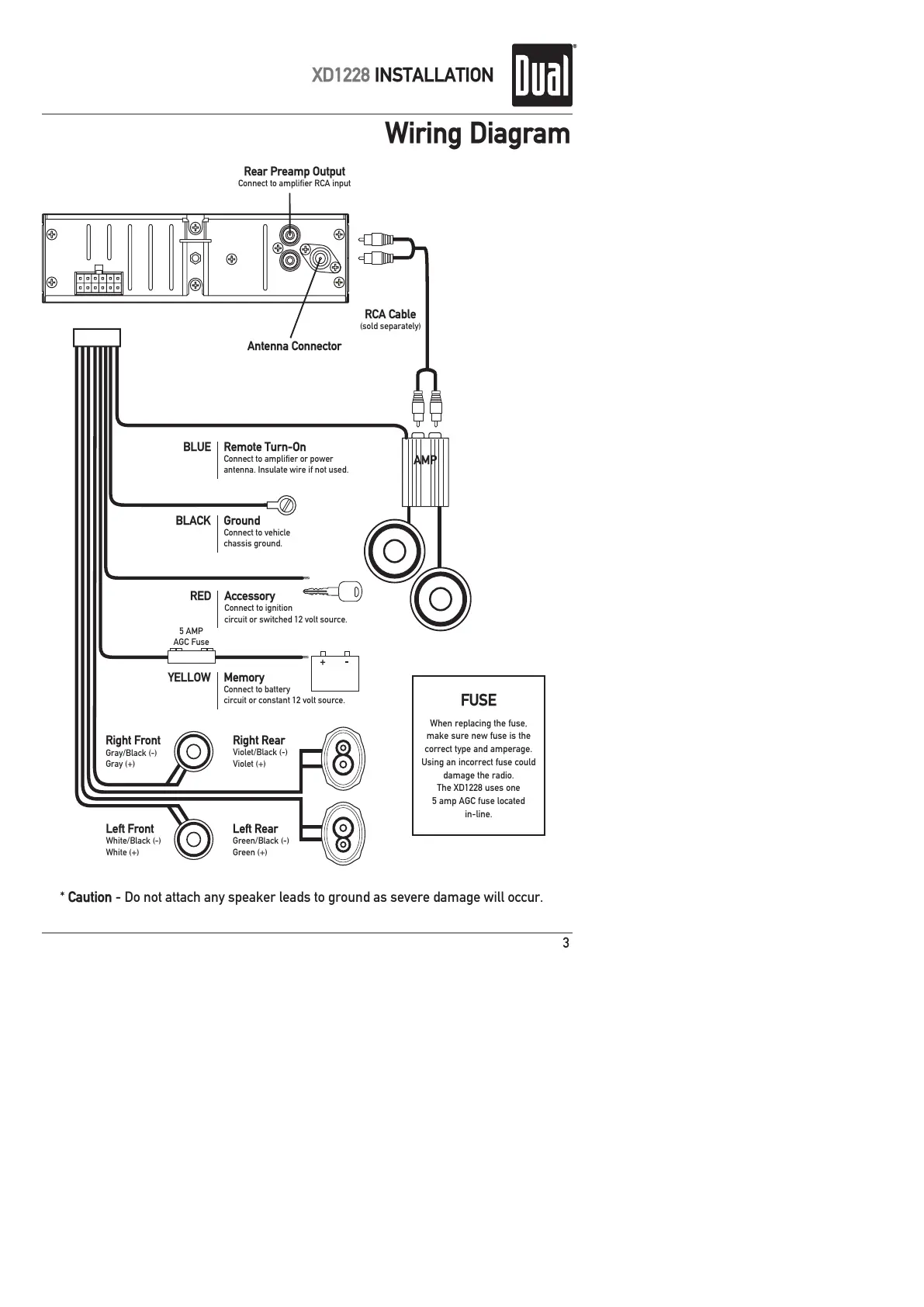

XD1228 INSTALLATION
Rear Preamp Output
Connect to amplifier RCA input
Antenna Connector
RCA Cable
(sold separately)
AMP
BLUE
BLACK
RED
YELLOW
Remote Turn-On
Connect to amplifier or power
antenna. Insulate wire if not used.
Ground
Connect to vehicle
chassis ground.
Accessory
Connect to ignition
circuit or switched 12 volt source.
Memory
Connect to battery
circuit or constant 12 volt source.
Right Front
Gray/Black (-)
Gray (+)
Left Front
White/Black (-)
White (+)
Right Rear
Violet/Black (-)
Violet (+)
Left Rear
Green/Black (-)
Green (+)
5 AMP
AGC Fuse
Wiring Diagram
* Caution-Donotattachanyspeakerleadstogroundasseveredamagewilloccur.
FUSE
Whenreplacingthefuse,
makesurenewfuseisthe
correcttypeandamperage.
Usinganincorrectfusecould
damagetheradio.
TheXD1228usesone
5ampAGCfuselocated
in-line.
All manuals and user guides at all-guides.com

Dual XD1228 Specifications

General

MP3 playback	No
CD-R playback	Yes
Supported radio bands	AM, FM
Preset stations quantity	30
Output power	60 W
Product color	Black
Ready for iPod	-
Equalizer bands quantity	3
Display type	LCD
USB version	2.0
Line outputs (RCA)	1
Compatible memory cards	Not supported
RMS rated power	28 W
