Ducati 996 User Manual

20
E
3
4
PUSH
2
1
1
1
0
0

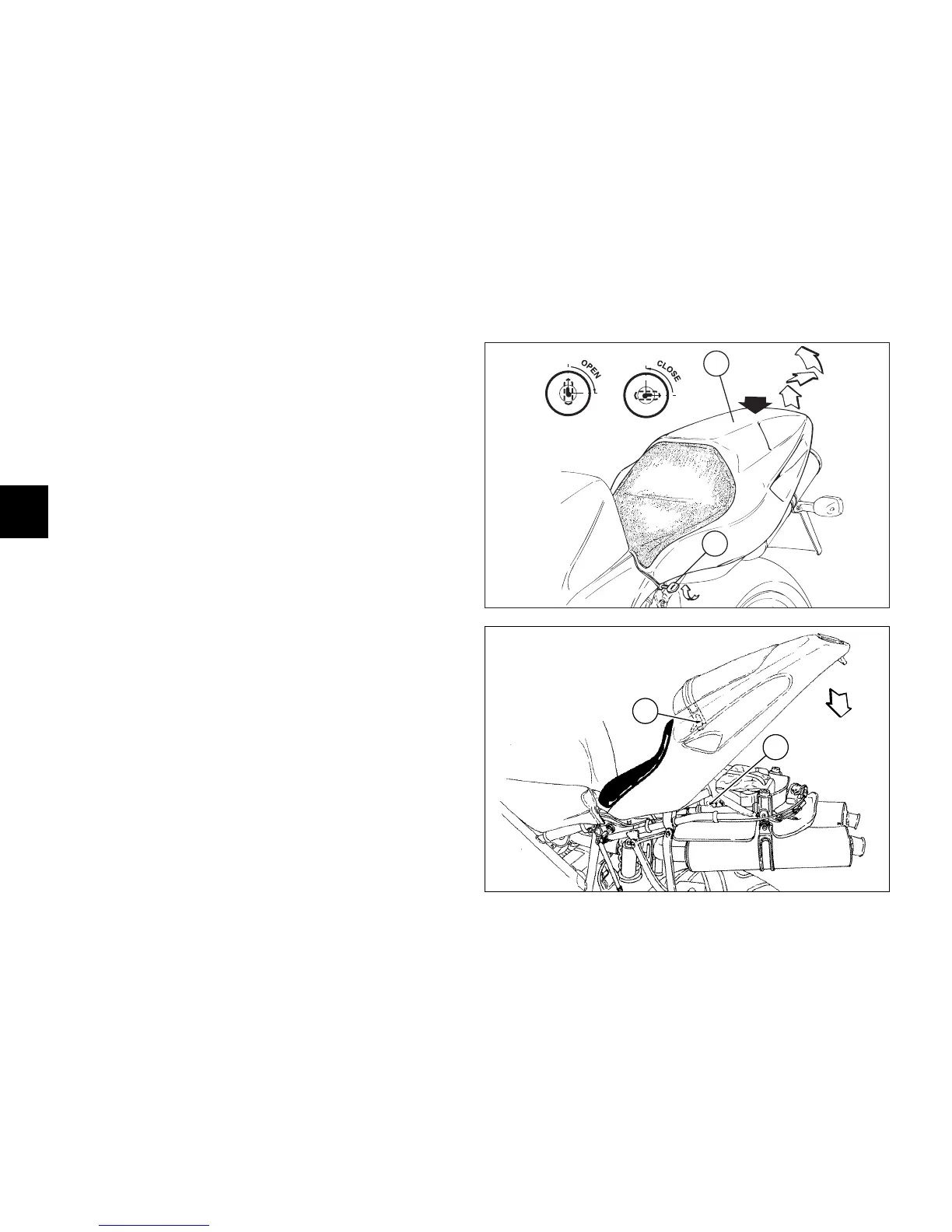

fig. 14.3
Closing
Single-seat (fig. 14.3)
Arrange all parts properly inside the compartment under
the seat.
Lower the tail guard to its horizontal position. Press on
the rear end (2) of the seat until you hear the catch click.
Double-seat (fig. 14.4)
Pull gently the tail guard outwards and lower it to its
horizontal position. Press on the passenger pillion to
allow the clips (3) – integral with the fairing - to catch the
pins (4) – integral with the frame, until you hear the catch
click.
Pull the tail guard gently up to make sure it is firmly
secured to the frame.
fig. 14.4
996S
996/748

Ducati 996 Specifications

General

Displacement	996 cc
Compression ratio	11.5:1
Fuel System	Electronic fuel injection
Transmission	6-speed
Frame	Tubular steel trellis
Front suspension	Showa upside-down fork, fully adjustable
Rear suspension	Showa monoshock, fully adjustable
Seat Height	790 mm (31.1 in)
Engine type	L-twin, 4-valve per cylinder, desmodromic, liquid-cooled
Bore x Stroke	98 mm x 66 mm
Front brakes	2 x 320 mm discs, 4-piston calipers
Rear brakes	Single 220 mm disc, 2-piston caliper
Fuel capacity	17 L (4.5 US gal)
Wheelbase	1410 mm
Power	112 hp @ 8500 rpm
Dry weight	198 kg
