Ducati 996 User Manual

34
E
MAINTENANCE

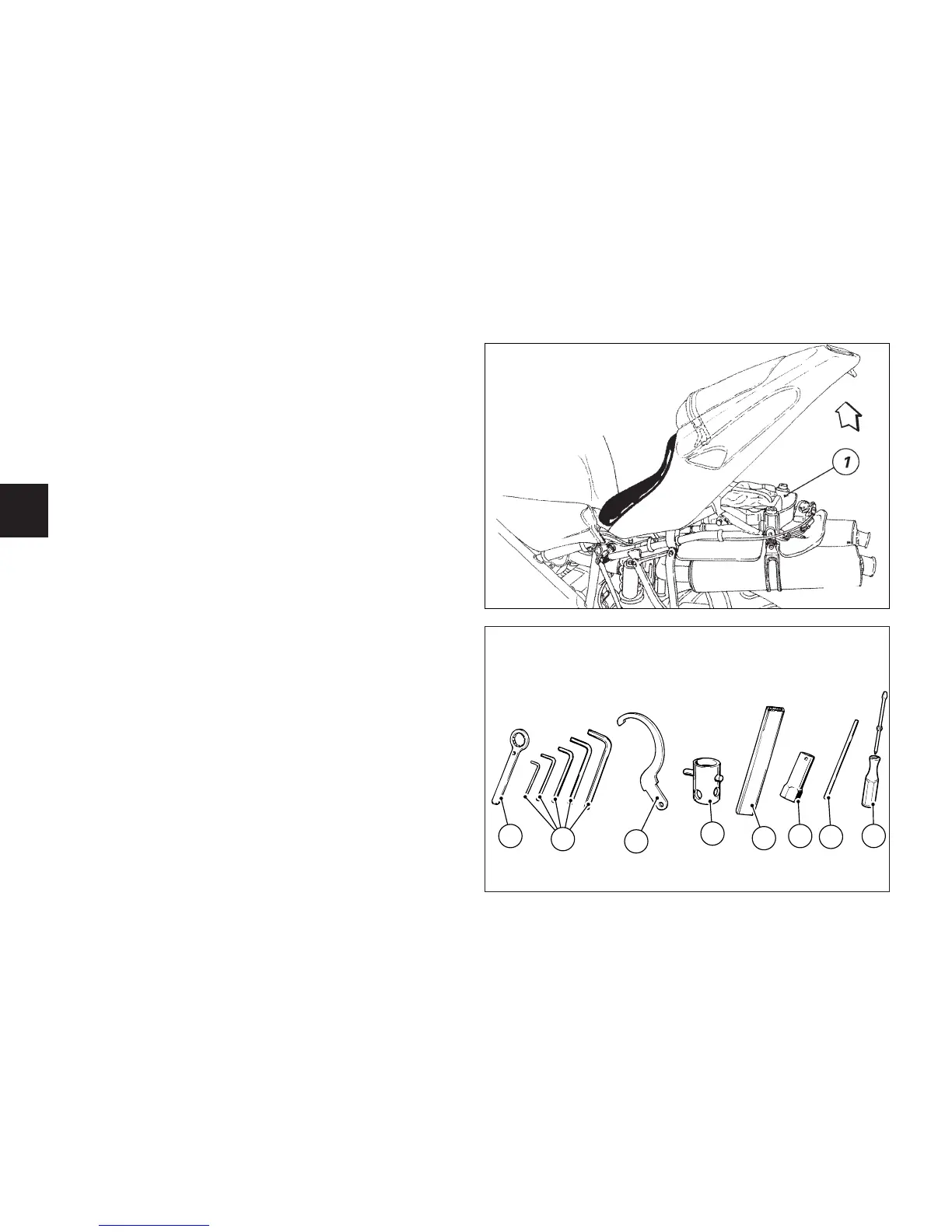

Tool kit and accessories (fig. 23)
The compartment (1) under the tail guard holds:
an Owner’s manual;
a helmet fastening cable;
a tool bag for usual maintenance and checks.
To reach this compartment, the tail guard must be lifted
by opening the catch (page 19).
The tool bag (fig. 24) holds:
1)14-mm (0.55-in.) box wrench;
2)10/8/6/5/4-mm Allen wrench;
(0.39/0.31/0.24/0.20/0.16-in.)
3) rear eccentric wrench;
4) front wheel spindle wrench;
5) extension for rear eccentric wrench;
6) box wrench for spark plugs;
7) tommy bar;
8) double-bit screwdriver.
1
2
3
4
5
6
7
8
fig. 24
fig. 23

Ducati 996 Specifications

General

Displacement	996 cc
Compression ratio	11.5:1
Fuel System	Electronic fuel injection
Transmission	6-speed
Frame	Tubular steel trellis
Front suspension	Showa upside-down fork, fully adjustable
Rear suspension	Showa monoshock, fully adjustable
Seat Height	790 mm (31.1 in)
Engine type	L-twin, 4-valve per cylinder, desmodromic, liquid-cooled
Bore x Stroke	98 mm x 66 mm
Front brakes	2 x 320 mm discs, 4-piston calipers
Rear brakes	Single 220 mm disc, 2-piston caliper
Fuel capacity	17 L (4.5 US gal)
Wheelbase	1410 mm
Power	112 hp @ 8500 rpm
Dry weight	198 kg

Summary

Safe Riding Practices

General Safety Warnings

Essential advice for safe operation, including protective gear and traffic rules.

Motorcycle Controls

Control Locations

Identifies the position of key controls on the motorcycle, shown in a diagram.

Instrument Panel Functions

Dashboard Indicators and Gauges

Explains the function of various lights and gauges on the instrument panel.

Ignition System

Key and Ignition Switch Operation

Details the use of keys and the four positions of the ignition switch and steering lock.

Handlebar Switch Operations

Left Handlebar Switch Functions

Primary Riding Controls

Throttle and Brake Controls

Front Fork Settings

Damping and Preload Adjustment

Rear Shock Settings

Damping and Spring Preload

Initial Riding Recommendations

Running-In: First 1000km

Guidelines for the first 1000 km, focusing on speed and braking.

Running-In: 1000-2500km

Extended Break-In Period

Guidelines for 1000-2500 km, allowing higher engine speeds.

Pre-Ride Safety Checks

Comprehensive Pre-Ride Inspection

Checklist of critical items to verify before riding the motorcycle.

Engine Start Procedures

Starting at Regular Temperatures

Steps for starting the engine at regular ambient temperatures.

Starting in Extreme Temperatures

Procedures for starting the engine in high or cold ambient temperatures.

Essential Riding Operations

Starting and Gear Shifting

Step-by-step guide for starting from a stop and changing gears.

Braking System Usage

How to use both brakes effectively and safely.

Stopping and Parking the Bike

Safe Stopping and Engine Shutdown

Steps to safely stop the motorcycle and switch off the engine.

Fueling Procedures

Safe Refueling Practices

Warnings and instructions for safe refueling to prevent overfilling.

Air Filter Maintenance

Air Filter Cleaning/Replacement

Coolant System Care

Coolant Level Inspection

Brake & Clutch Fluid Management

Fluid Level and System Checks

Cable and Battery Maintenance

Battery Electrolyte Level Check

Battery Charging Procedure

Safe Battery Charging

Steps for safely removing, charging, and reinstalling the battery.

Drive Chain Care

Chain Tension and Lubrication

Lighting System Service

Headlamp Bulb Replacement

Tyre Management

Tyre Pressure and Punctures

Recommended tyre pressures and guidance for tyre punctures.

Tyre Tread and Oil Level Check

Engine Oil Level Inspection

Spark Plug Service

Spark Plug Inspection and Gap

Engine and Timing System

Engine Specifications and Performance

Technical data for the engine, including bore, stroke, power, and torque.

Performance and Braking Systems

Brake System Components

USA Market Information

Safety Defect Reporting Process

Procedure for reporting safety defects to NHTSA and Ducati North America.

Noise Emission Warranty Details

Information concerning the warranty for the exhaust system's noise standards.

Emissions Control Systems

Crankcase and Evaporative Emissions

Explanation of emission control systems like crankcase and evaporative.

Tampering Warnings and Issues

Warnings against tampering and common problems affecting emissions.

Safe Riding Practices

Defensive Riding Techniques

Advice on safe riding techniques, including lane changes, slopes, and braking.

Safety, Fuel, and Identification

Fuel Safety and Protective Gear

Warnings about gasoline safety and the importance of protective apparel.

California Evaporative Emission System

System Components and Malfunction Handling

Describes the system components and how to handle malfunctions.

Emission Control System Warranty

Warranty Coverage and Duration

Explains what the emission control system warranty covers and for how long.

Warranty Limitations and Legal Rights

Warranty Exclusions and Owner Rights

Details what the warranty does not cover and the owner's legal rights.
