Installation and Operation of 613 & E Series Gas Fired Convection Oven
20
• Remove the Combustion Compartment Cover by
removing the screws located in the bottom of the
door opening.
• Find the pressure tap located at the lower right
hand corner of the unit on the Right hand side of
a plumbing "Tee". The pressure tap is a 1/8" pipe
plug with a hex head.
• Remove the pressure tap plug and replace with
the tting for a gas pressure meter, slack tube or
manometer.
• Attach your meter.
• The pressure regulator is an integral part of the dual
solenoid gas valve. Locate the adjustment screw
on the left hand side. (It has a slotted aluminum
cover cap.)
• Remove the cover cap.
• Open the Gas Shut Off Valve.
• Turn the Main power switch to the COOK position.
• With the burner on, check your meter. The manifold
pressure should be 3.5" W.C. for natural gas and
10" W.C. for propane.
• Check the rating plate to verify gas types and
pressures.
some
• Rotate screw inside, Clockwise to increase
pressure, Counter-clockwise to decrease pressure.
• When the proper pressure is attained, turn the
power switch to the OFF position and close Manual
Shut Off Valve.
• Remove your meter and Fitting. Replace pressure
tap plug. (You may need to add some pipe dope
to the plug to prevent a leak.)
• Turn the power switch to the ON position and open
the Manual Shut Off Valve.
• With a solution of soapy water, check for gas leaks.
Repair any leaks.
• Replace cover cap on gas valve.
• Replace Combustion Cover.
• Replace Control Panel.

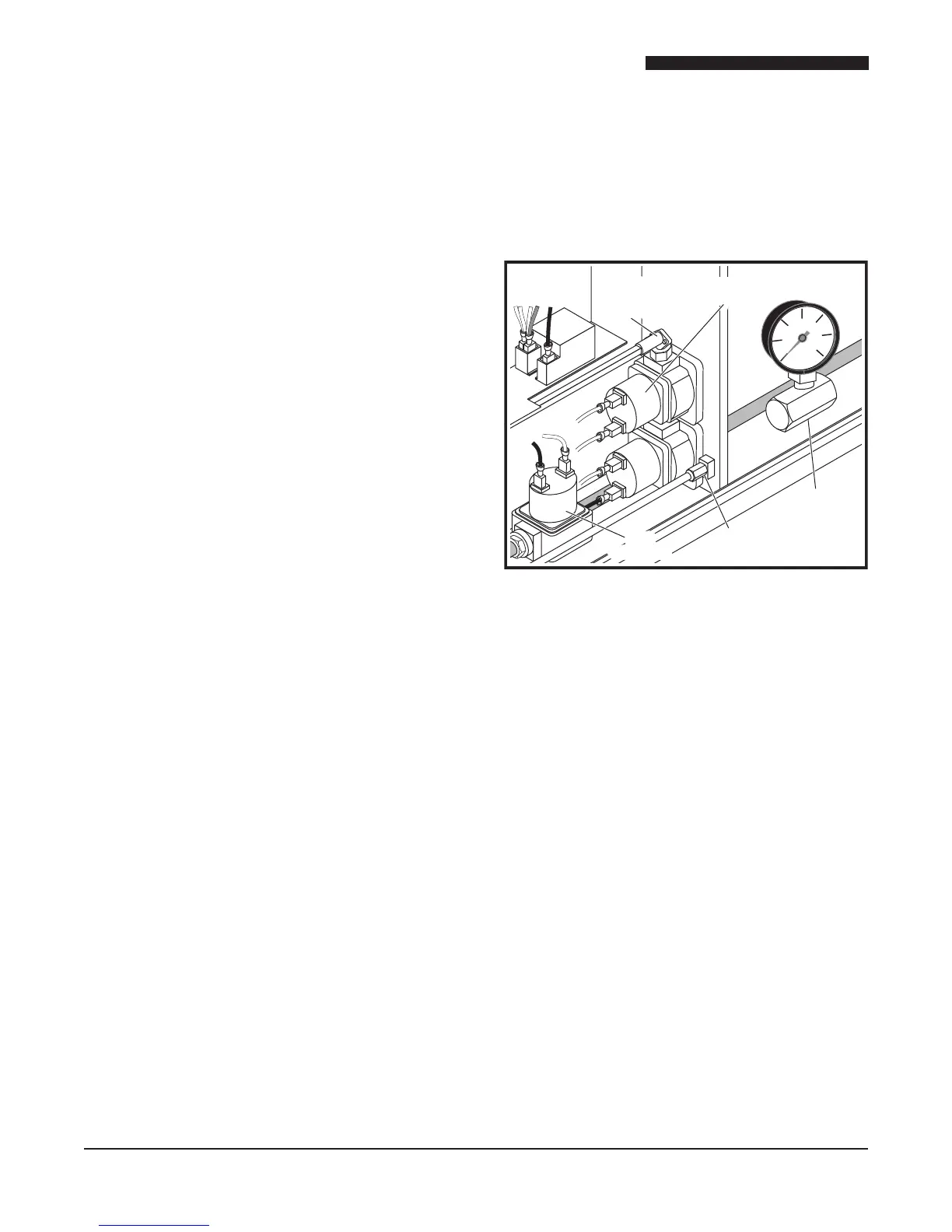

Gas
Valve
Gas
Valve
Gas
Solenoid
Gas
Solenoid
Pilot
Connection
Gas
Pressure
Meter
Gas
Shutoff
Valve
Gas
Shutoff
Valve
3
2
1
0
4
5
6
It is important that the ventilation system be inspected
and/or maintained by Qualied Personnel at least once
each year.
This inspection/maintenance should consist of, but
not be limited to:
• Inspection for blockages or build up which might
interfere with the venting of the oven.
• Repair of such blockages.
• Proper installation of the drafthood or ue guard.
• Inspection of the venting canopy, its drive motors
and belts, etc.
Proper preventive maintenance can reduce your
chances of costly repairs.
