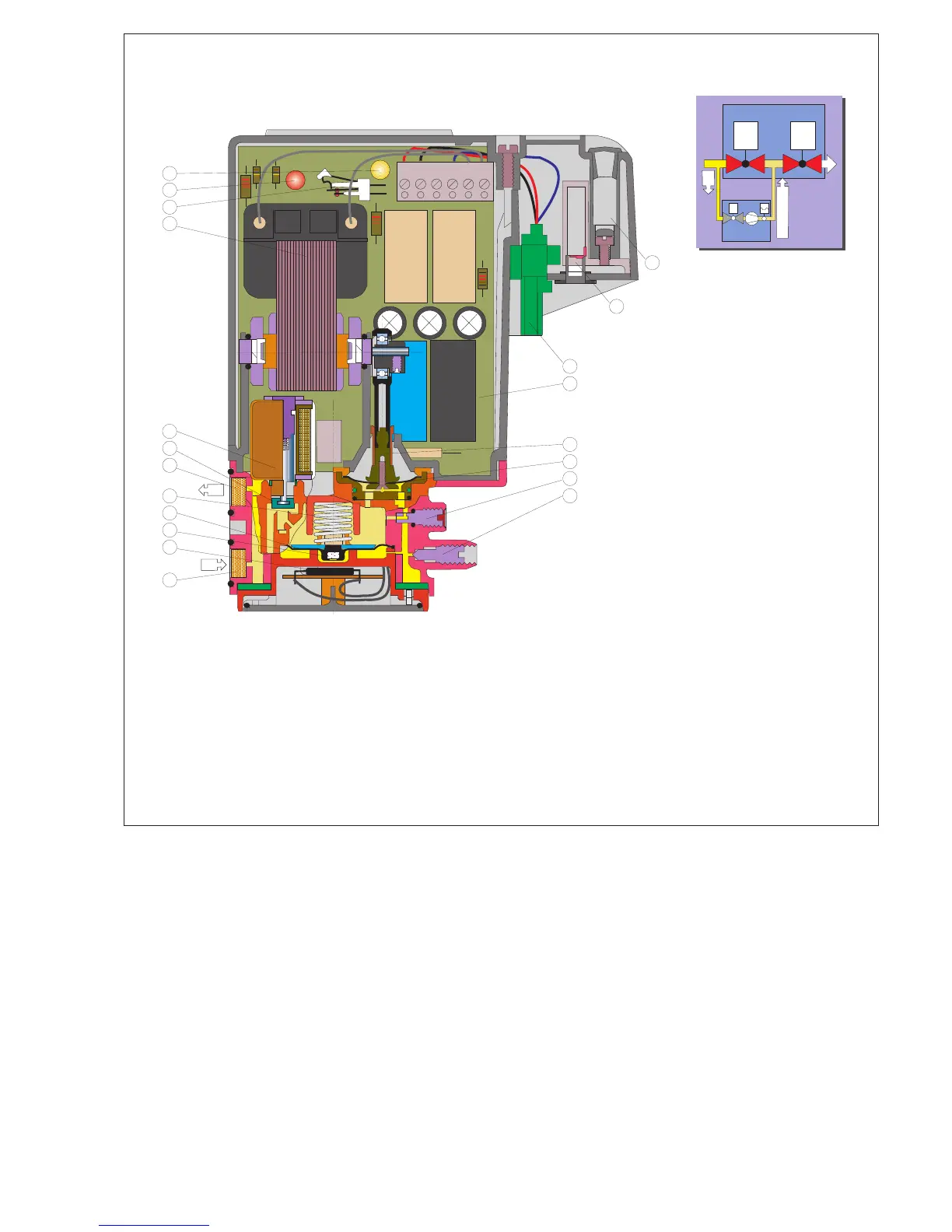

VPS 504 sectional diagram
V1 V2
1
7
8
VPS 504
DMVÉ Series
p
1
p
1
+
20 mbar
V2
4 3 2 1 2 1
p
2
p
1
16
15
14
13
12
6
5
4
3
2
1
7
10
11
8
9
17
5
18
19
1 Hall switch
2 Solenoid
3 Pressure switch diaphragms
4 Compression spring
5 Filter
6 Solenoid valve anchor
7 Solenoid valve coil
8 Pressure pump
9 Unlock switch
10 Fault lamp
11 Operating lamp
12 Test nipple
13 Volume restrictor
14 Pump diaphragm
15 Pump linkage
16 PCB
17 Plug connection
18 Equipment fuse
19 Spare fuse
