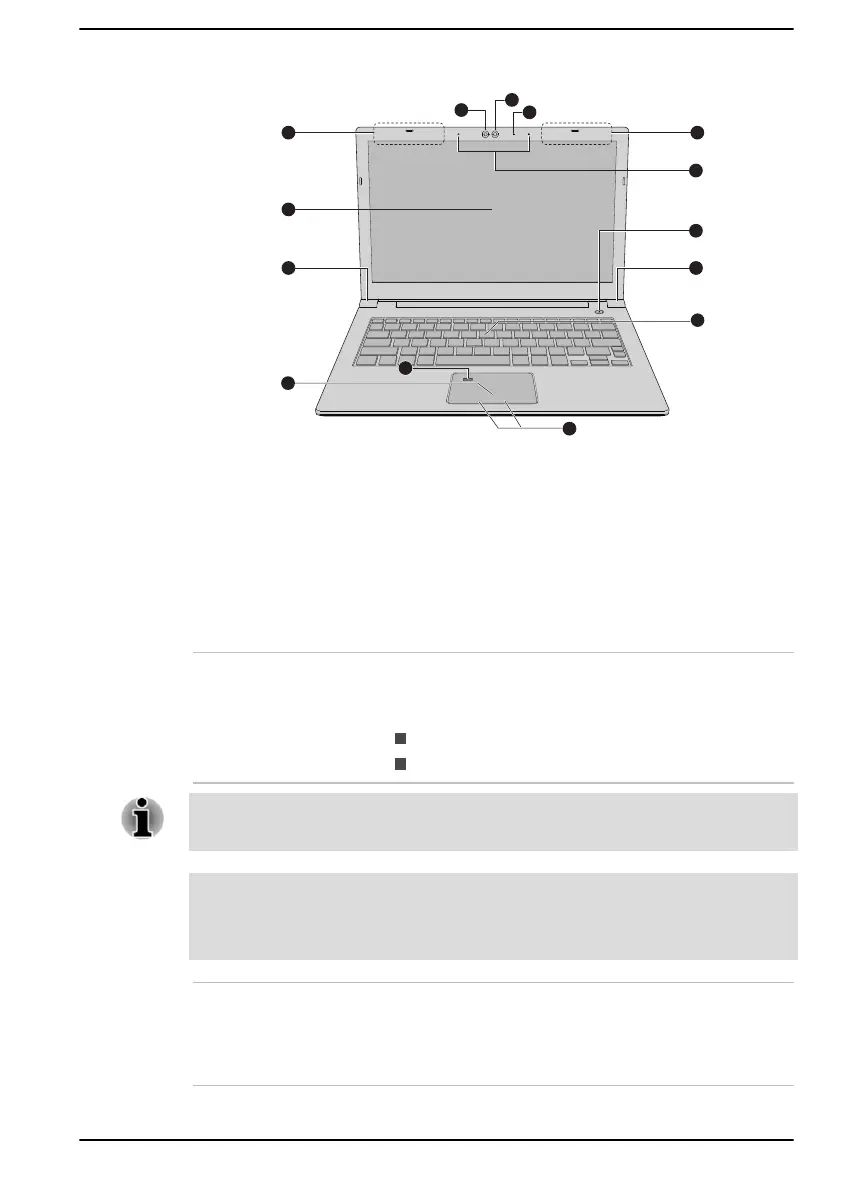

Figure 3-6 The front of the computer with the display panel open
1. Wireless communication antennas
(not shown)
7. Display hinges
2. Infrared LED* 8. Power button
3. Web Camera* 9. Keyboard
4. Web Camera LED* 10. Touch Pad
5. Microphones* 11. Touch Pad control buttons
6. Display screen 12. Fingerprint Sensor*
* Provided with some models.
Product appearance depends on the model you purchased.
Wireless
communication
antennas
Depending on the configuration of your
computer, one of the following antennas are built-
in:
Wireless LAN/Bluetooth
®
Wireless WAN/Wireless LAN/Bluetooth
®
Do not cover the wireless communication antennas area with any metal
objects, otherwise the wireless function might not work.
Legal Footnote (Wireless LAN)
For more information regarding Wireless LAN, refer to the Legal Footnotes
section.
Infrared LED The Infrared LED blinks when Windows Hello
Face is operating.
Only models which support face recognition
feature are equipped with the Infrared LED.
