Operator'sManual
CS3814, CS3816, CS4116 Chainsaws
PARTS BREAKDOWN

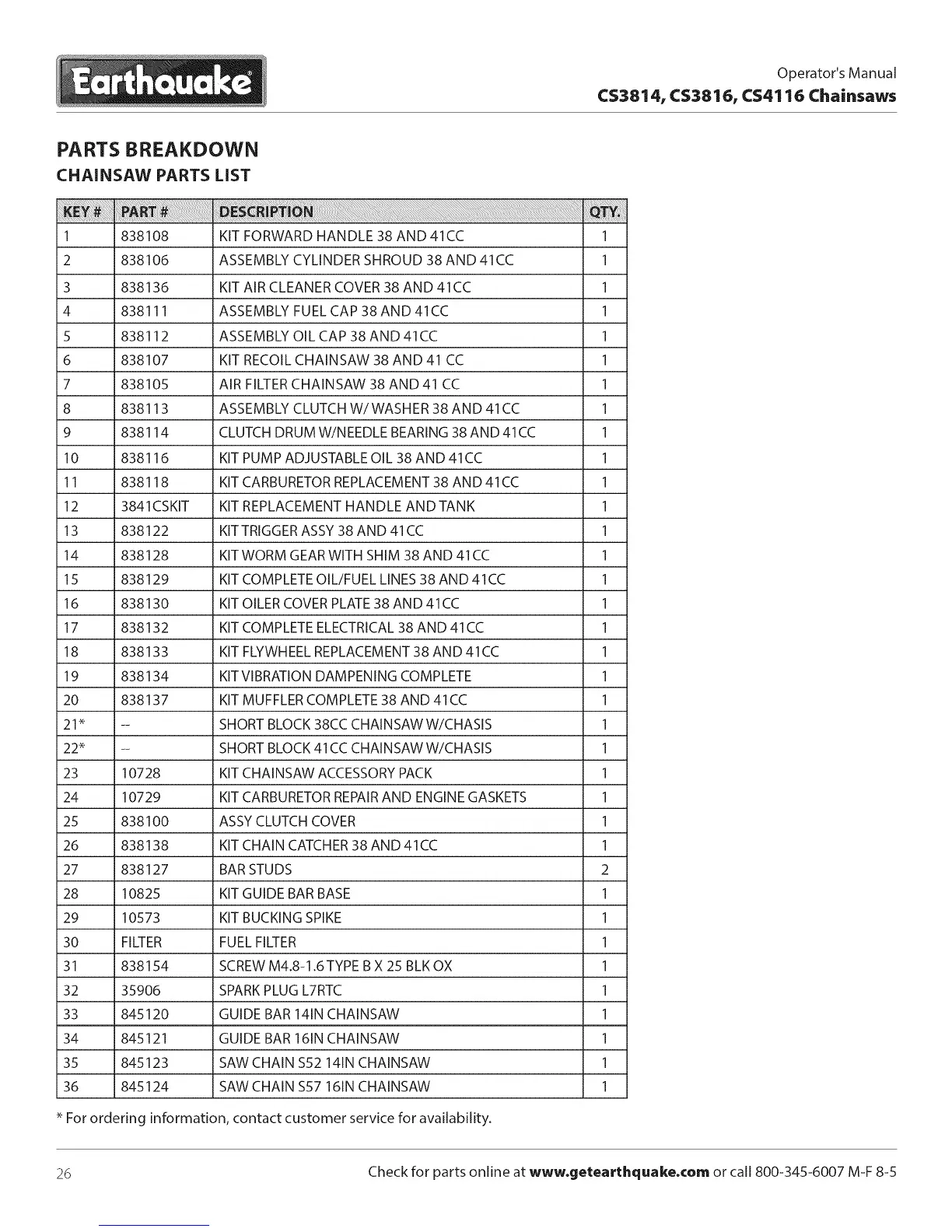

CHAINSAW PARTS LIST
1 838108 KIT FORWARD HANDLE 38 AND 41CC 1
2 838106 ASSEMBLY CYLINDER SHROUD 38 AND 41CC 1
3 838136 KIT AIR CLEANER COVER 38 AND 41CC 1
4 838111 ASSEMBLY FUEL CAP 38 AND 41CC 1
5 838112 ASSEMBLY OIL CAP 38 AND 41CC 1
6 838107 KIT RECOIL CHAINSAW 38 AND 41 CC 1
7 838105 AIR FILTER CHAINSAW 38 AND 41 CC 1
8 838113 ASSEMBLY CLUTCH W/WASHER 38 AND 41CC 1
9 838114 CLUTCH DRUM W/NEEDLE BEARING 38 AND 41CC 1
10 838116 KIT PUMP ADJUSTABLE OIL 38 AND 41CC 1
11 838118 KIT CARBURETOR REPLACEMENT 38 AND 41CC 1
12 3841CSKIT KIT REPLACEMENT HANDLE AND TANK 1
13 838122 KIT TRIGGER ASSY 38 AND 41CC 1
14 838128 KIT WORM GEAR WITH SHIM 38 AND 41CC 1
15 838129 KIT COMPLETE OIL/FUEL LINES 38 AND 41CC 1
16 838130 KIT OILER COVER PLATE 38 AND 41CC 1
17 838132 KIT COMPLETE ELECTRICAL 38 AND 41CC 1
18 838133 KIT FLYWHEEL REPLACEMENT 38 AND 41CC 1
19 838134 KITVIBRATION DAMPENING COMPLETE 1
20 838137 KIT MUFFLER COMPLETE 38 AND 41CC 1
21" -- SHORT BLOCK 38CC CHAINSAW W/CHASIS 1
22* -- SHORT BLOCK 41CC CHAINSAW W/CHASIS 1
23 10728 KIT CHAINSAW ACCESSORY PACK 1
24 10729 KIT CARBURETOR REPAIRAND ENGINE GASKETS 1
25 838100 ASSY CLUTCH COVER 1
26 838138 KIT CHAIN CATCHER 38 AND 41CC 1
27 838127 BAR STUDS 2
28 10825 KIT GUIDE BAR BASE 1
29 10573 KIT BUCKING SPIKE 1
30 FILTER FUEL FILTER 1
31 838154 SCREW M4.8-1.6 TYPE BX 25 BLKOX 1
32 35906 SPARKPLUG L7RTC 1
33 845120 GUIDE BAR 14IN CHAINSAW 1
34 845121 GUIDE BAR 16IN CHAINSAW 1
35 845123 SAW CHAIN $52 141N CHAINSAW 1
36 845124 SAW CHAIN $57 16IN CHAINSAW 1
* For ordering information, contact customer service for availability.
26 Check for parts online at www.getearthquake.¢om or call 800-345-6007 M-F 8-5
