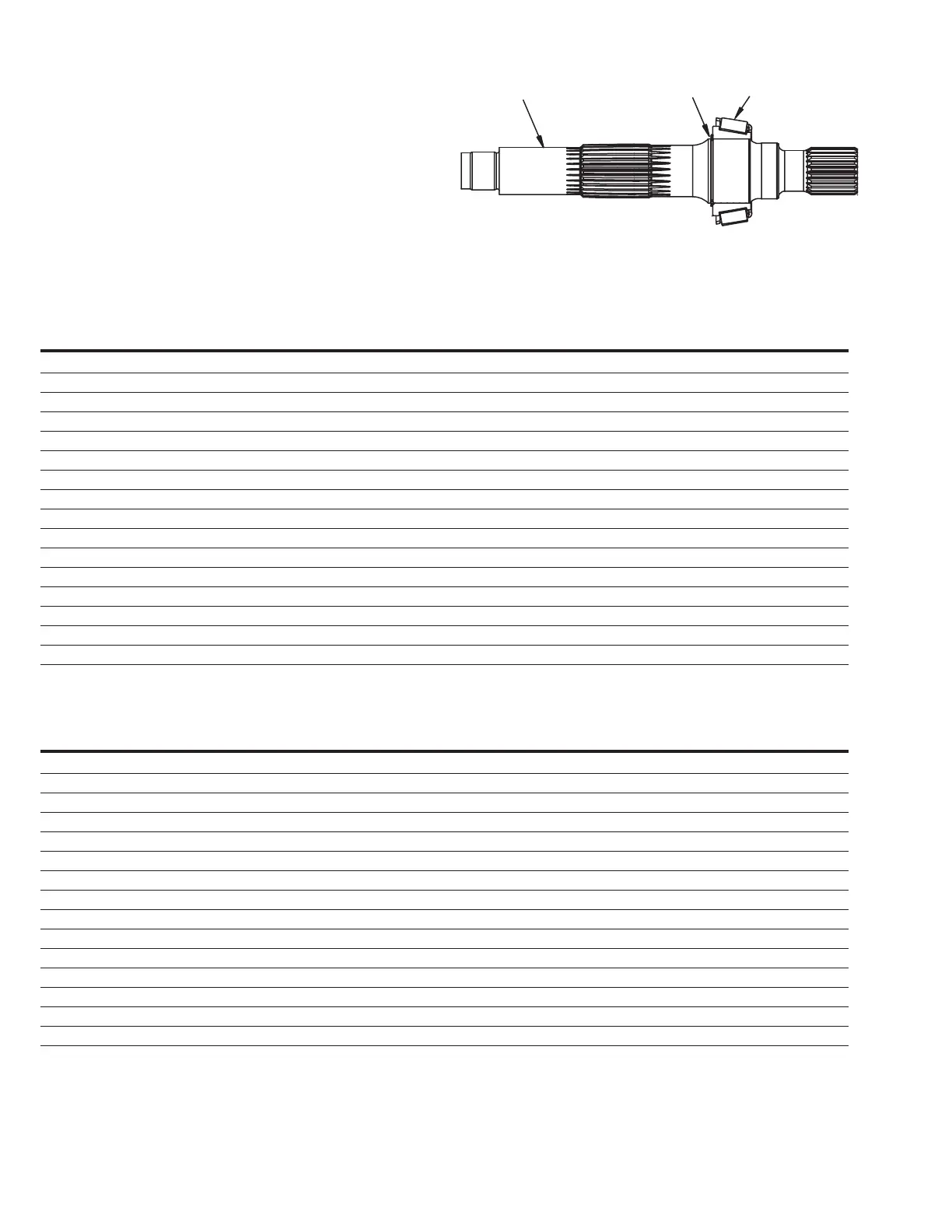

Table 2.0 Output Drive Shaft Assembly For Motors XX33-XXX (Lip Seal Design)
Models 3333-3933-4633
SHAFT
BEARING RETAINING
ASSEMBLY SHAFT CONE RING DESCRIPTION
112459-000 112458-000 103227-000 103222-188 23 Tooth, 16/32 Pitch Spline
112463-000 112462-000 103227-000 103222-188 20 Tooth, 16/32 Pitch Spline (3/8-24) UNF x [.75] DP
112465-000 112464-000 103227-000 103222-188 21 Tooth, 16/32 Pitch Spline
112467-000 112466-000 103227-000 103222-188 14 Tooth, 12/24 Pitch Spline
112480-000 112479-000 103227-000 103222-188 14 Tooth, 12/24 Pitch Spline, Speed Sensor
112482-000 112481-000 103227-000 103222-188 21 Tooth, 16/32 Pitch Spline, Speed Sensor
112498-000 112497-000 103227-000 103222-188 1.5 Diameter Straight with [.3750] X [2.5] Square key
112500-000 112499-000 103227-000 103222-188 19 Tooth, 16/32 Pitch Spline
112504-000 112503-000 103227-000 103222-188 1.375 Diameter Tapered W/ [.375] X [1.00] Square key
112506-000 112505-000 103227-000 103222-188 14 Tooth, 12/24 Pitch Spline (3/8-24) UNF x [.75] DP
112508-000 112507-000 103227-000 103222-188 23 Tooth, 16/32 Pitch SplinePitch Spline (3/8-24) UNF x [.75] DP
112510-000 112509-000 103227-000 103222-188 19 Tooth, 16/32, Pitch Spline, Speed Sensor
112519-000 112518-000 103227-000 103222-188 20 Tooth, 16/32, Pitch Spline, Speed Sensor
112521-000 112520-000 103227-000 103222-188 1.5 Diameter Straight W/ [.3750] X [2.5] Square key, (3/8-24) UNF x [.75] DP
112525-000 112524-000 103227-000 103222-188 1.5 Tapered with [.375] X [1.00] Square key
114289-000 114288-000 103227-000 103222-188 21 Tooth, 16/32 Pitch Spline (M10 x 1.5 threaded hole)
MODELS 5433-6433
SHAFT BEARING RETAINING
ASSEMBLY SHAFT CONE RING DESCRIPTION
112484-000 112483-000 103808-000 103222-200 14 Tooth, 12/24 Pitch Spline
113201-000 113201-000 103808-000 103222-200 23 Tooth, 16/32 Pitch Spline
113338-000 113337-000 103808-000 103222-200 21 Tooth, 16/32 Pitch Spline
113344-000 113343-000 103808-000 103222-200 23 Tooth, 16/32, Pitch Spline, Speed Sensor
113346-000 113345-000 103808-000 103222-200 23 Tooth, 16/32 Pitch Spline (3/8-24) UNF x [.75] DP
113348-000 113347-000 103808-000 103222-200 1.375 Diameter Tapered W/ [.375] X [1.00] Square Key
113350-000 113349-000 103808-000 103222-200 1.5 Diameter Straight W/ [.3750] X [2.5] Square Key
113352-000 113251-000 103808-000 103222-200 21 Tooth, 16/32, Pitch Spline, Speed Sensor
113356-000 113355-000 103808-000 103222-200 14 Tooth 12/24 Pitch Spline, Speed Sensor
113358-000 113357-000 103808-000 103222-200 1.5 Diameter Straight W/ [.3750] X [2.5] Square Key, (3/8-24) UNF x [.75] DP
113360-000 113359-000 103808-000 103222-200 21 Tooth, 16/32 Pitch Spline (3/8-24) UNF x [.75] DP
113362-000 113361-000 103808-000 103222-200 [1.500] Diameter Straight W/ [.3750] X [2.5] Square Key, Speed Sensor
113364-000 113363-000 103808-000 103222-200 21 Tooth, 16/32 Pitch Spline W/ (M10 x 1.5 threaded hole)
113811-000 113810-000 103808-000 103222-200 14 Tooth, 122/24 Pitch Spline (3/8-24) UNF x [.75] DP
114816-000 114815-000 103808-000 103222-200 19 Tooth, 16/32 Pitch Spline
6 EATON Series 1 Heavy Duty Hydrostatic Fixed Displacement Motors Parts and Repair E-MOPI-TS002-E September 2004
Shaft
Retaining Ring
Bearing Cone
Parts
Drive Shaft
(Item 1)
