1B131006EN
Page 8
Effective 07/2017
1-4 OUTLINES AND DIMENSIONS
Breaker Identification
A B C D E
240 VCP-W, 270 VCP-W & 270 VCP-WC
10 14 16.25 34.80 35.22
50/350, 50/350C, 150/1000, 150/1000C, 150/63,
3000A VCP-W, VCPW-SE,VCP-WC & VCP-W
K=1>=50kA
Except those immediately below
10 12 13.63 29.94 31.44 ALL
All Other VCP-W,VCPW-SE & VCP-W K=1<=40kA
including 50/25C & 150/75C, 1200A
10 12 13.63 29.81 29.44

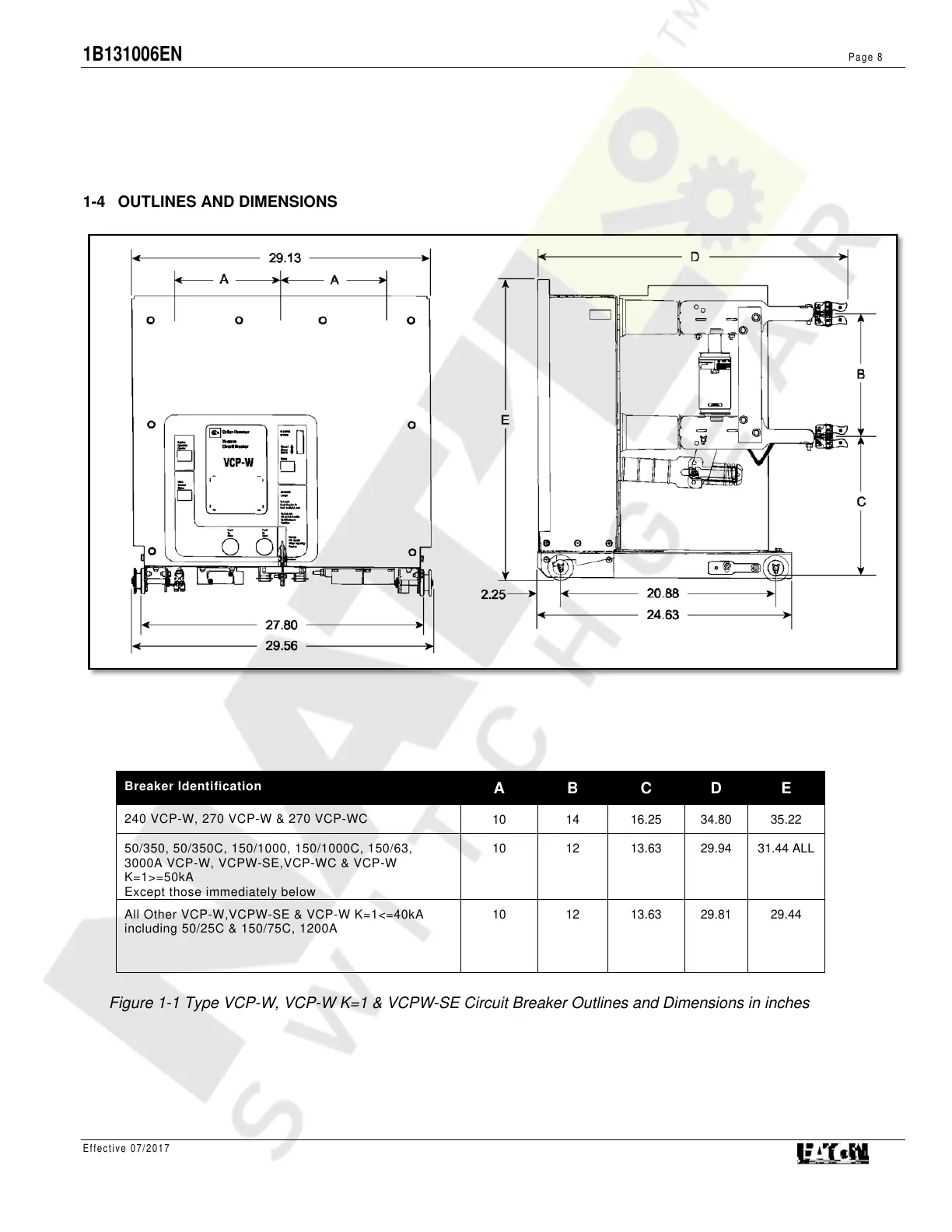

Figure 1-1 Type VCP-W, VCP-W K=1 & VCPW-SE Circuit Breaker Outlines and Dimensions in inches
Courtesy of NationalSwitchgear.com
