Eaton 5P 1550i User Manual

2. Presentation

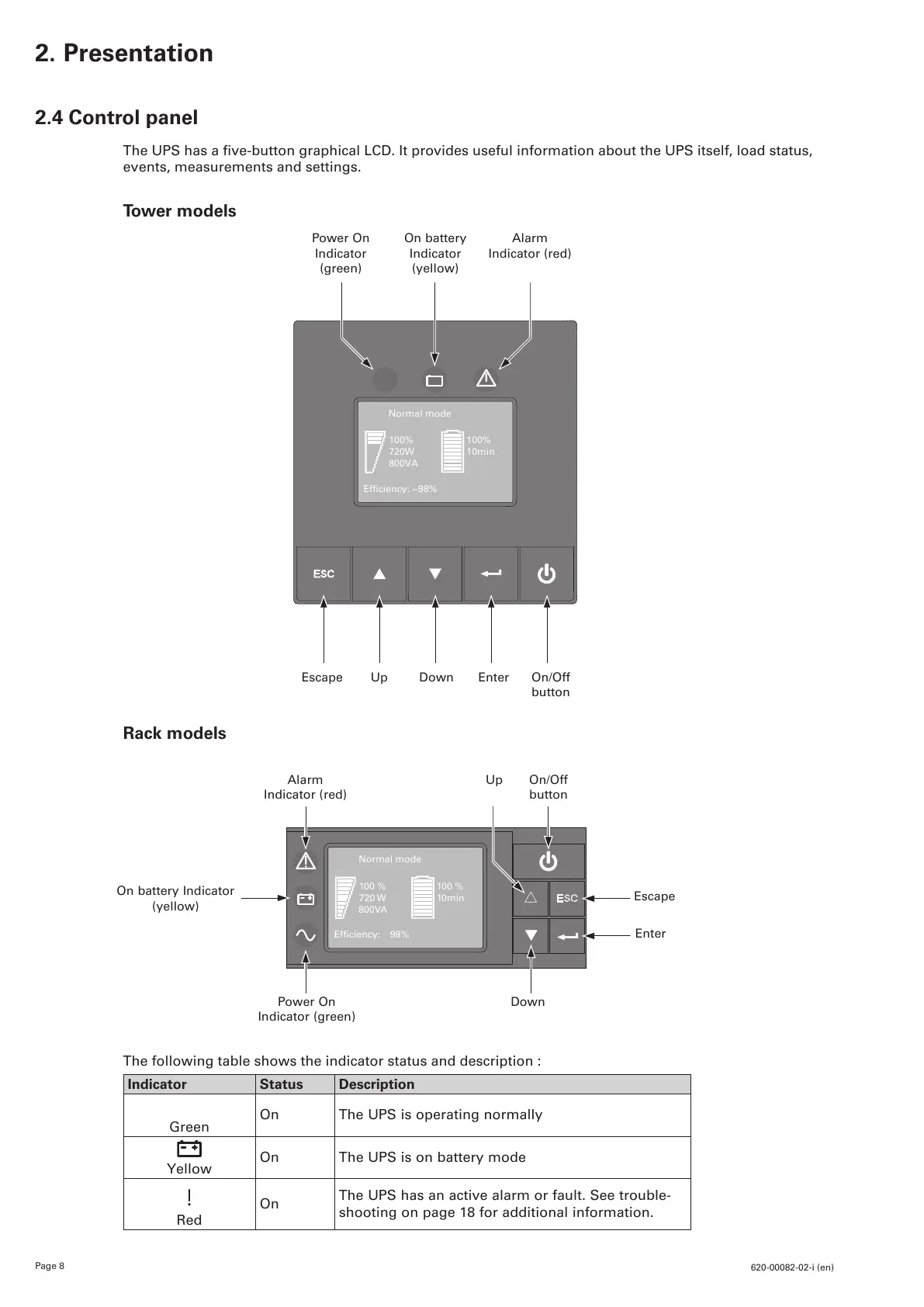

2.4 Control panel
The UPS has a ve-button graphical LCD. It provides useful information about the UPS itself, load status,
events, measurements and settings.
Tower models
Power On
Indicator
(green)
On battery
Indicator
(yellow)
Alarm
Indicator (red)
Normal mode
100%
10min
100%
720W
800VA
Efficiency: ~98%
Escape Up Down Enter On/Off
button
Rack models
Alarm Up On/Off
Indicator (red) button
Normal mode
100%
10min
100%
720 W
800VA
Efficiency: 98%
On battery Indicator
(yellow)
Power On
Indicator (green)
Down
Enter
Escape
The following table shows the indicator status and description :
Indicator Status Description
Green
On The UPS is operating normally
Yellow
On The UPS is on battery mode
Red
On
The UPS has an active alarm or fault. See trouble-
shooting on page 18 for additional information.
Page 8
620-00082-02-i (en)
