Pole mounting
The pole-mounting equipment consists of two C-shaped
brackets that attach the recloser to the pole. Refer to Figure
11.
Item
Dimensions per model
VSA 12/12B/16 /20 VSA20A
A 616 (24.25) 705 (27.75)
B 819 (32.25) 908 (35.75)
C 406 (16) 483 (19)
D 292 (11.5) 318 (12.5)
All dimensions are mm (inches).
Dimensions shown are approximate.
Model kg (lbs)
VSA 12/12B/16/20 272 (600)
VSA20A 381 (840)

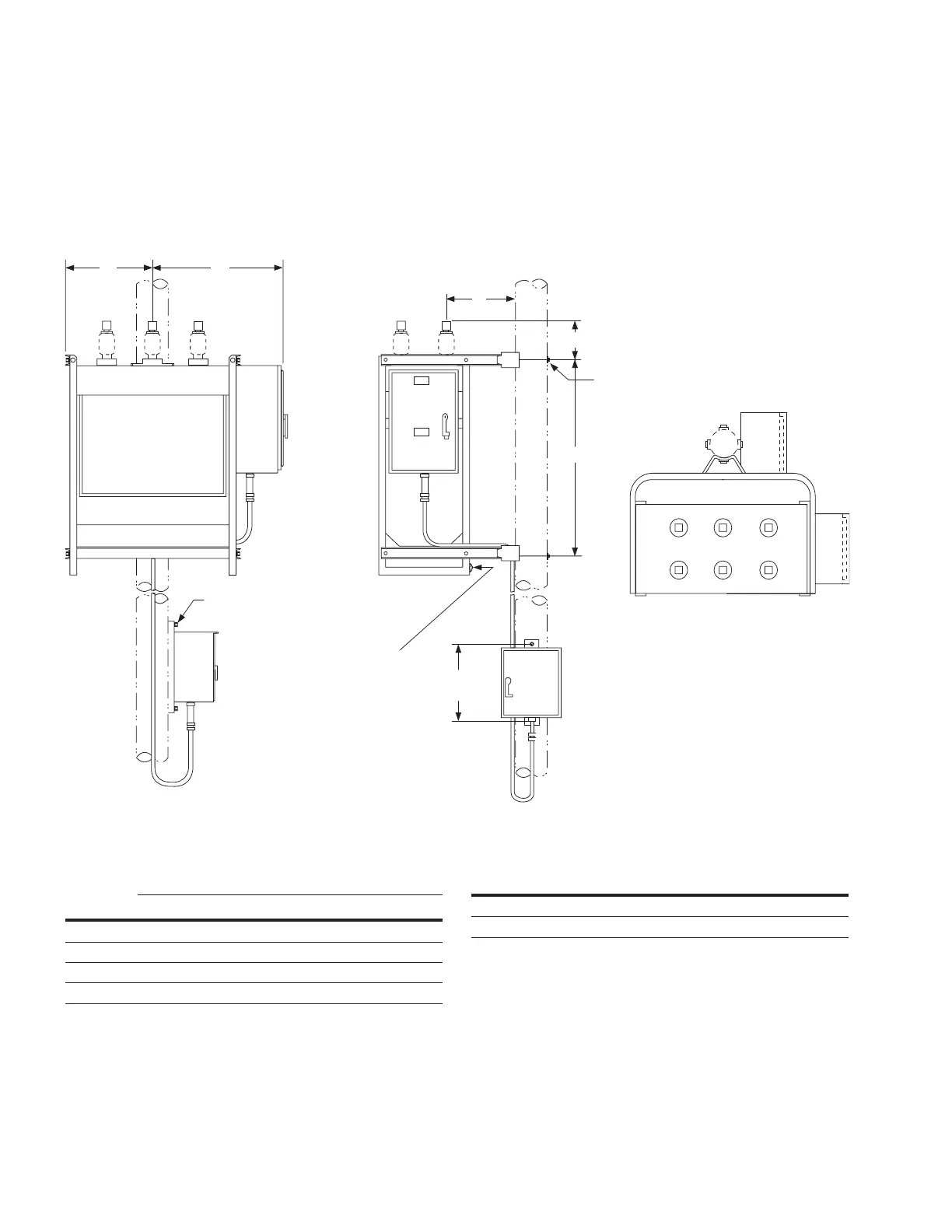

Figure 11. Outline dimensions and weights with single-pole mounting hanger accessory (recloser and mounting
frame only).
A
Control
Operator
Cabinet
B
5/8 mounting hardware (2)
not furnished
C
47
D
20-1/8
Mounting
Grounding
Connector
2/0 - 250 MCM
3/4 Mounting Hardware (2)
not furnished
Operator
Cabinet
Electronic
Control
Pole-mounting
Frames:
VSA12/12B/16/20
KA56 VS
VSA20A
KA52 VSM
