Eaton 600 A 25 kV class PUSH-OP Maintenance Instructions

Type VSA12, VSA16 and VSA20/800 maintenance instructions
26MAINTENANCE INSTRUCTIONS MN280064EN October 2017
Decals and labels (Figure 27)
Item no. Description Catalog number
Qty. per
assy.
1 Nameplate, 12KA KP1428VS 1
Nameplate, 16KA KP1289VS 1
Nameplate, 20KA KP1430VS 1
2 Machine screw,
rd hd, #6-32 x 3/8, brass
K721325106037A 2
3 Washer KP2090A39 2
4 Flatwasher, #6, st stl K900215006000A 2
5 Stop nut, elastic KP2020A6 2
6 Decal KP1373ME 1
7 Decal KP1071VS-2 1
Item no. Description Catalog number
Qty. per
assy.
8 Decal KP1071VS-1 1
9 Decal KP1209VSM 1
10 Decal KP1208VSM 1
11 Decal KP1210VSM 1
12 Label KRW441V1 1
13 Decal KP1164M 1
14 Decal KP1165M 1
15 Manual trip plate KP1242VSM 1
16 Self tapping screw,
rd hd 1/4 x 3/16, st stl
K801715004018A 2
VIEW A-A
VIEW
A-A
FRONT VIEWLEFT SIDE VIEW
1
2
3
4
5
7
8
9
10
14
29
30
24
25
26
27
28
31
32
33
35
36
34
22
23
21
42
18
19
20
15
16
17
12
13
11
6
47
48
49
46
50
51
56
57
58
54
55
59
60
61
62
41
42
44
45
43
38
37
39
40
52
53

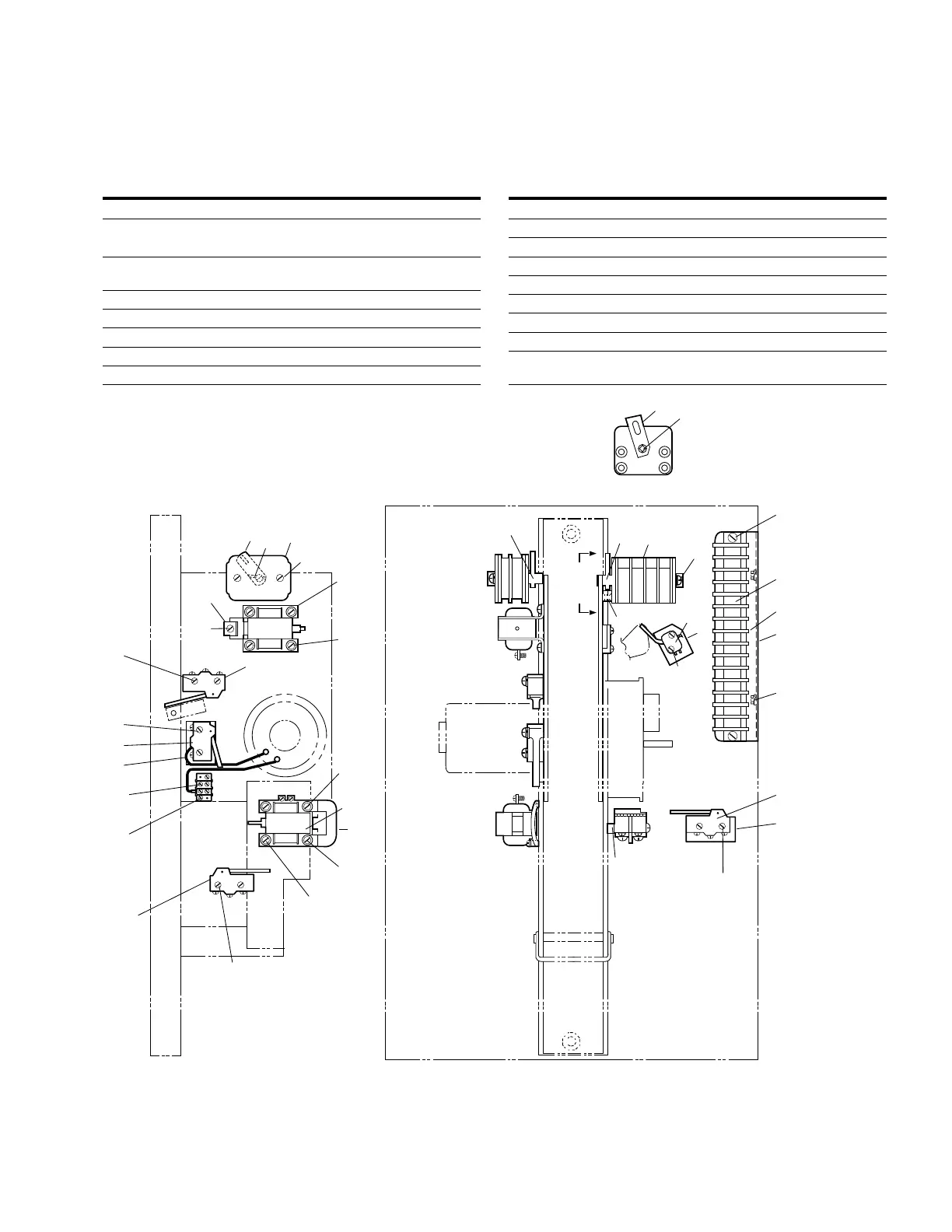

Figure 28. Operating mechanism electrical parts
