Eaton 600 A 25 kV class PUSH-OP Assembly/Installation Instructions

Catalog data MN650002EN
Effective February 2019
Deadbreak apparatus connectors
Product information
Introduction
Eaton terminates high volt age underground cables to
deadfront ap pa ra tus such as transformers, switches,
and switchgear with its Cooper Power™ series 600 A,
35 kV Class BOL-T™ deadbreak connectors. They are
fully shielded, submersible, and meet the requirements
of IEEE Std 386™-2006 standard – Separable Insulated
Connector Systems. 600 A deadbreak connectors are fully
interchangeable with all other manufacturers that also
certify compliance with IEEE Std 386™-2006 standard.
The BOL-T connector is rated for 900 A when used with all
copper current carrying components.
Read this manual first
Read and understand the contents of this manual and follow
all locally approved procedures and safety practices before
installing or operating this equipment.
Additional information
These instructions cannot cover all details or variations
in the equipment, procedures, or process described nor
provide directions for meeting every possible contingency
during installation, operation, or maintenance. For additional
information, contact your representative.
Acceptance and initial inspection
Each deadbreak connector is in good condition when
accepted by the carrier for shipment. Upon receipt, inspect
the shipping container for signs of damage. Unpack the
deadbreak connector and inspect it thoroughly for damage
incurred during shipment. If damage is discovered, file a
claim with the carrier immediately.
Handling and storage
Be careful during handling and storage of the deadbreak
connector to minimize the possibility of damage. If the
deadbreak connector is to be stored for any length of time
prior to installation, provide a clean, dry storage area.
Standards
ISO 9001 Certified Quality Management System
Insulating Plug with Cap
T-body
Unthreaded Connector
(Compression or Shear
Bolt)
Cable
Adapter
Neutral Wire
All associated apparatus must be de-energized during
any hands-on installation or maintenance.
The 600 A BOL-T Connector System is designed to be
operated in accordance with normal safe operating
procedures. These instructions are not intended to
supersede or replace existing safety and operating
procedures. The elbow connector should be installed
and serviced only by personnel familiar with good
safety practices and the handling of high-voltage
electrical equipment.
Optional Capacitive Test Point Operating Instructions:
Use only voltage indicating instruments specifically
designed for test points. Use of conventional voltage
sensing devices may provide false “No Voltage”
indications.
The test point must be dry and free of contaminant’s
when checking for voltage. After indication is taken:
clean, dry, and lubricate the test point cap with silicone
grease and assemble to the test point.
The capacitive test point is not sufficiently accurate,
nor is it intended for, actual voltage measurements or
phasing operations.
A reading of no voltage from the test point should
not be the only indication of a de-energized circuit
obtained before touching the connector. Other
procedures can include direct conductor voltage testing
or grounding using a live-line tool.

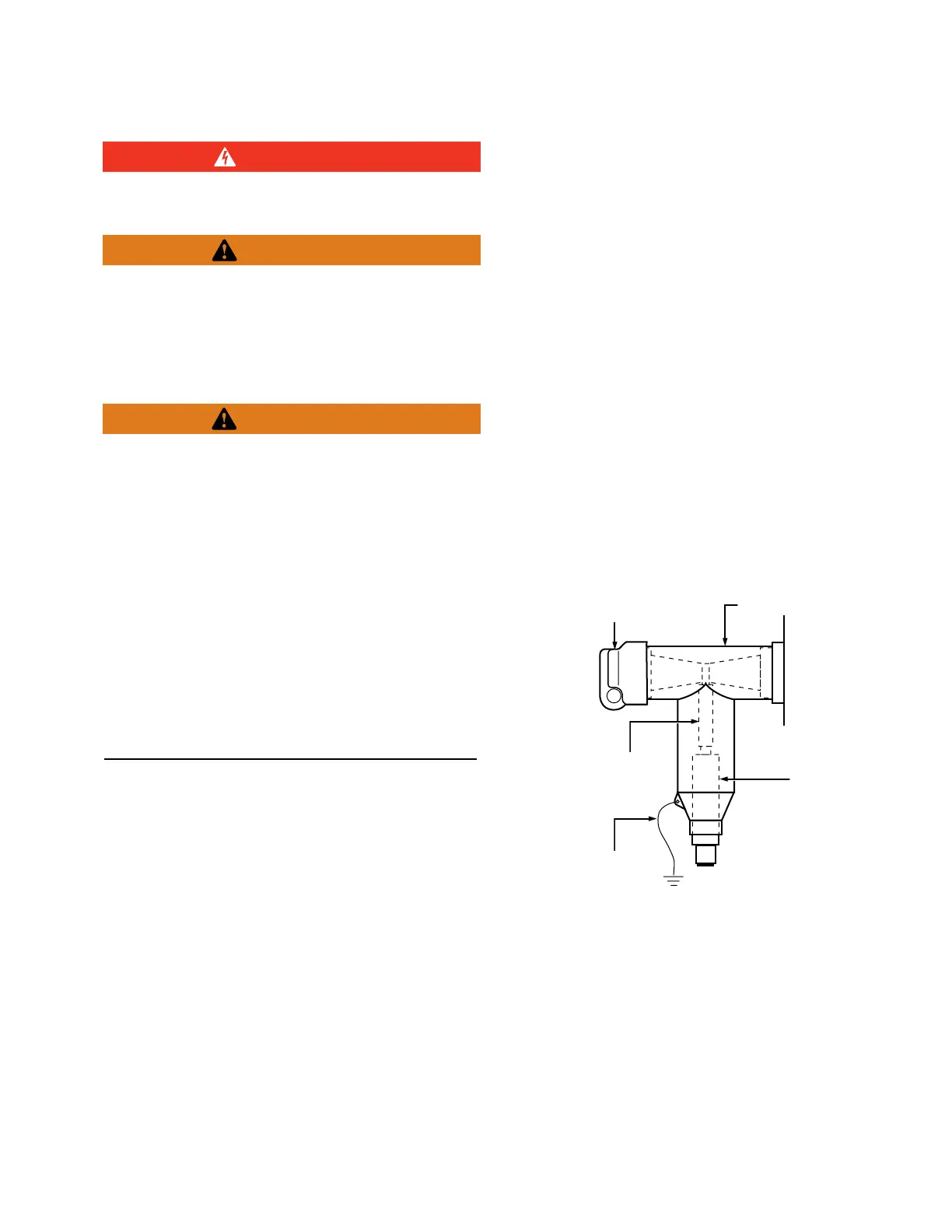

Figure 1. Line illustration of 35 kV 600 A BOL-T
connector.
DANGER
WARNING
WARNING
1
600 A 35 kV class BOL-T connector assembly installation instructions MN650002EN February 2019
