Battery Upgrade Instructions for 93E (20–60 kVA) P-164000967—Rev 01 1
CChhaapptteerr 11 IInnttrroodduuccttiioonn
11..11 IInnttrroodduuccttiioonn
Upgrade kit P-106000220 facilitates replacing one existing two-row battery tray assembly with two single-row
battery assemblies.
The replacement trays contain nine batteries each, such that it takes two single-row trays to complete one
string. Each single-row battery tray has one circuit.
Each kit (P-106000220) includes two single-row battery trays and two harness adapters. Only one harness
adapter is needed for the installation; the second harness adapter is a spare.

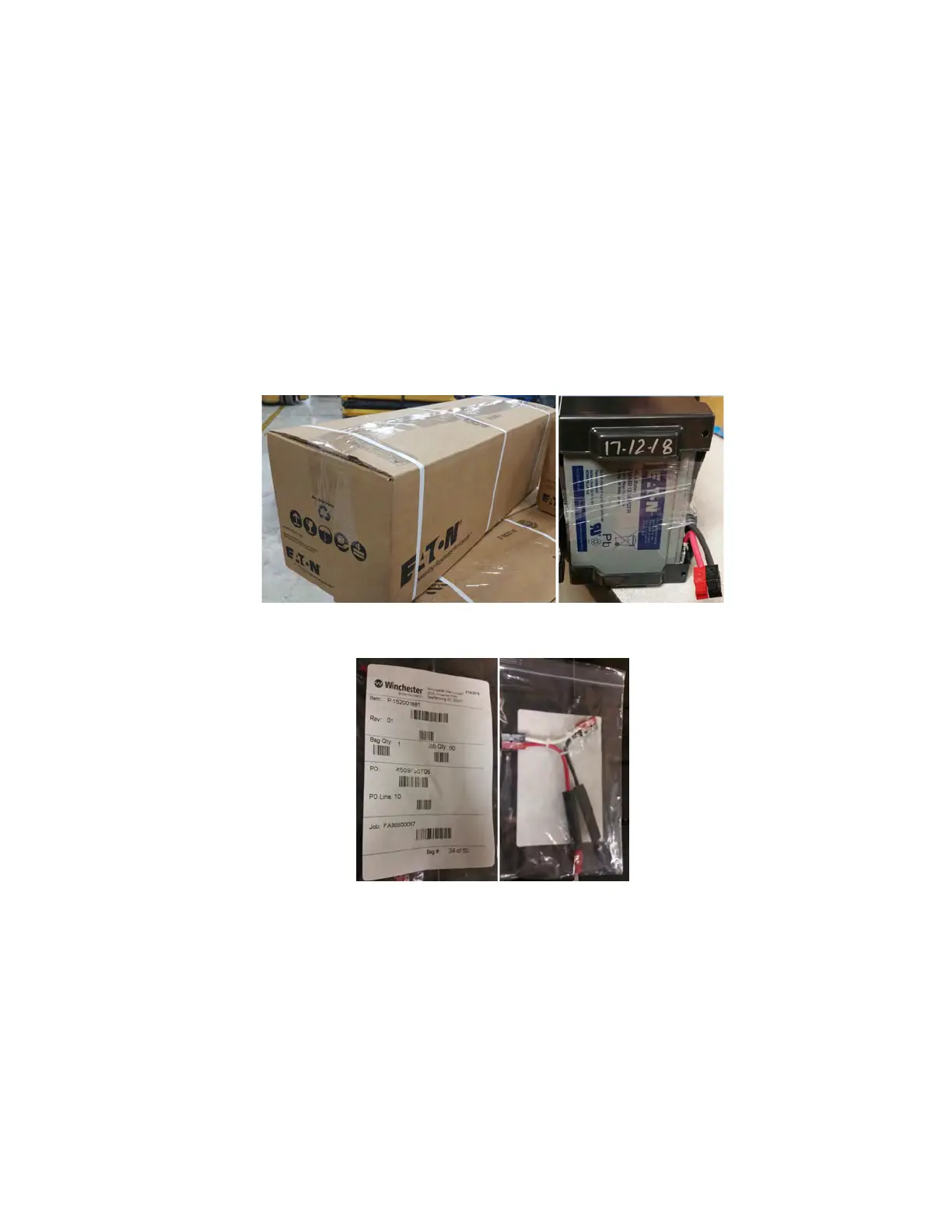

Figure 1. Upgrade Kit P-106000220 (Two Cartons) Includes Two Single-Row Battery Trays and Two
Wiring Harness Adapters
Figure 2. Wiring Harness Adapter P-152001881
