80 Eaton 93PM Emergency Lighting UPS (50 kW, 480V Three and Four-Wire UL 924) Installation and Operation Manual P-164000569—Rev 03

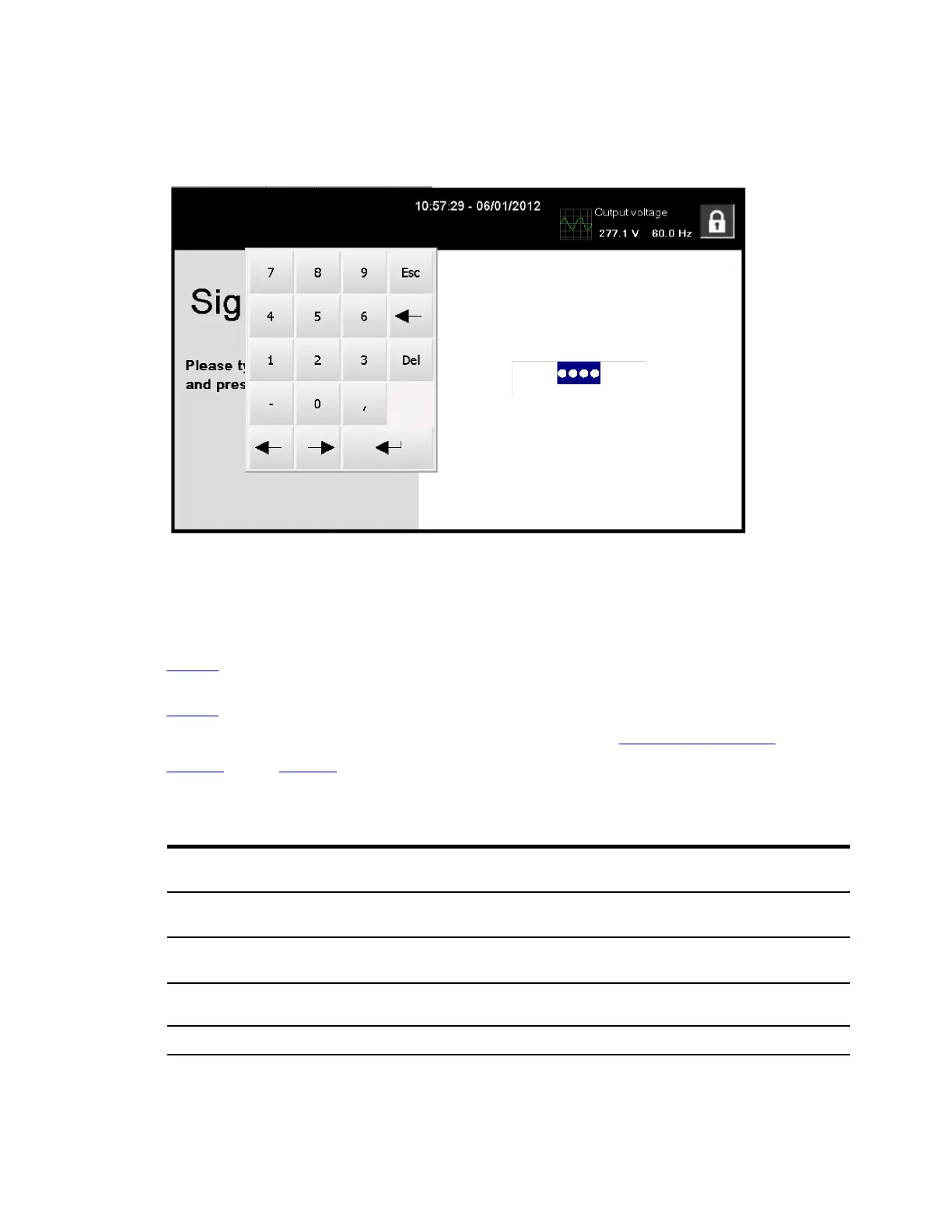

Figure 58. Sign In Keypad
77..22..88 SSyysstteemm CCoonnttrroollss
Tap the CONTROLS tab on the main menu navigation bar to display the Controls screen. Double conversion
operation, transfer to bypass, shutdown, and charger control commands are controlled through this screen. In
addition, the screen displays the current status of the UPS.
Table 17 describes the control functions and provides instructions to access and use the command menu
screens.
Table 18 lists the typical System Status Screen Messages that are displayed during UPS operation.
For UPS operating instructions using the System Controls, see paragraph 7.3 Single UPS Operation.
Figure 59 through Figure 63 show the major control screens.
Table 17. Controls Menu Operation
Function Subfunction
Operation
System
Controls
The CONTROLS tab on the main menu navigation bar displays the
System Controls screen.
System Status GO ONLINE starts the UPS in Double Conversion mode or transfers the
UPS to Double Conversion mode from Bypass mode.
Bypass GO TO BYPASS starts the UPS in Bypass mode or transfers the UPS
to Bypass mode from Double Conversion mode.
Charger TURN ON CHARGER/TURN OFF CHARGER sets the battery charger
on or off.
Battery Test RUN BATTERY TEST starts the battery test.
UPS Operating Instructions
