Eaton 9PX 6K SP User Manual

Page 21
9PX-6K-SP_EN
ENGLISH
5. Power cable connection
5.1 Installation requirements
Recommended protective devices and cable cross-sections

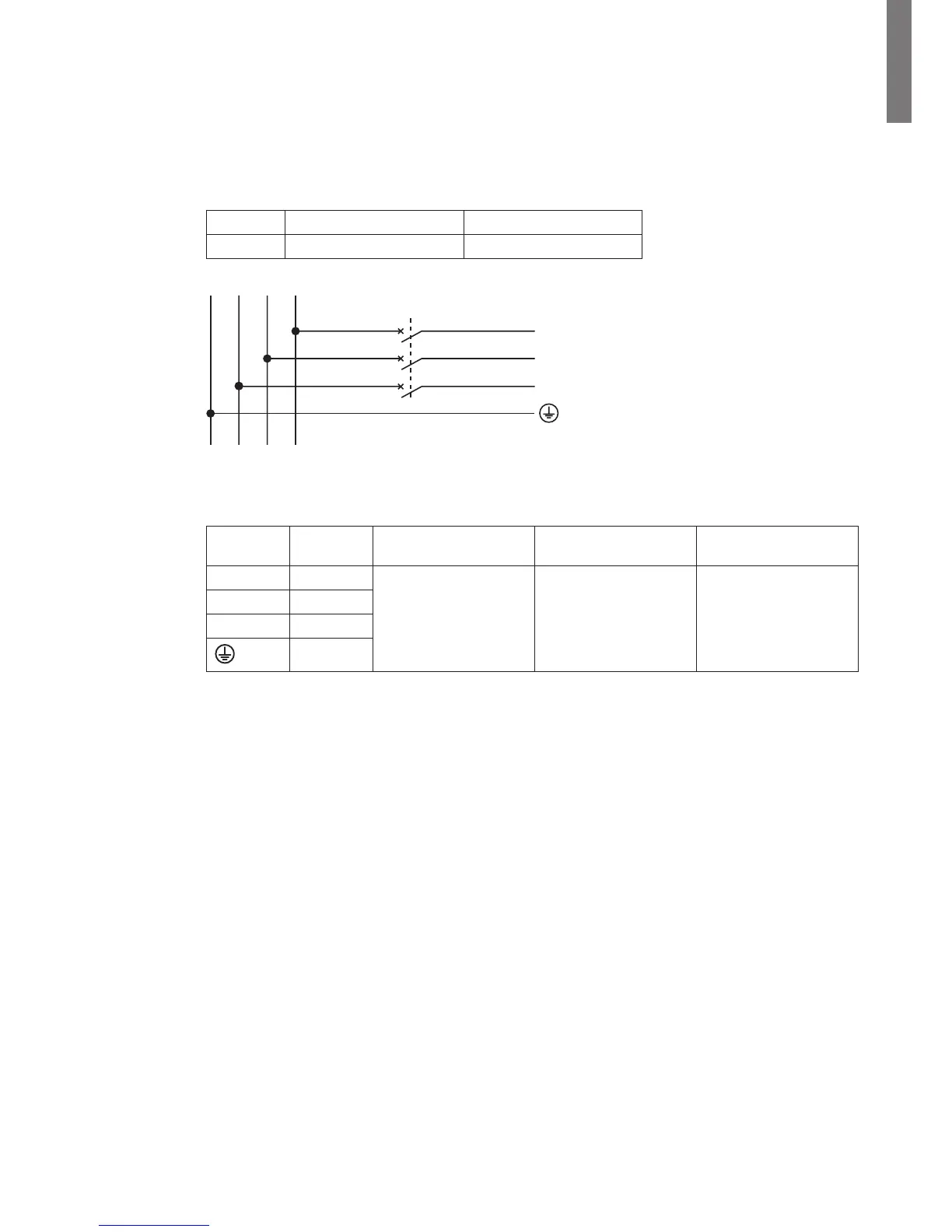

1. Recommended upstream protection
UPS power rating Upstream circuit breaker
9PX 6K SP 6000VA 30A
3 pole circuit breaker
utility
NL1GL2
L1
N
L2
to UPS Input AC source
2. Recommended cable cross-sections
Terminal
position
Wire
function
Terminal wire
size rating
Minimum input
wire size
Tightening
torque
L1 Phase 8-5 AWG (10-16 mm
2
) 8 AWG (194°F)
10 mm² (90°C)
18 lb in / 2.03 Nm
L2 Phase
N Neutral
Ground
Copper wire, solid or stranded.
