Eaton Durant AMBASSADOR 57601-402 User Manual

7

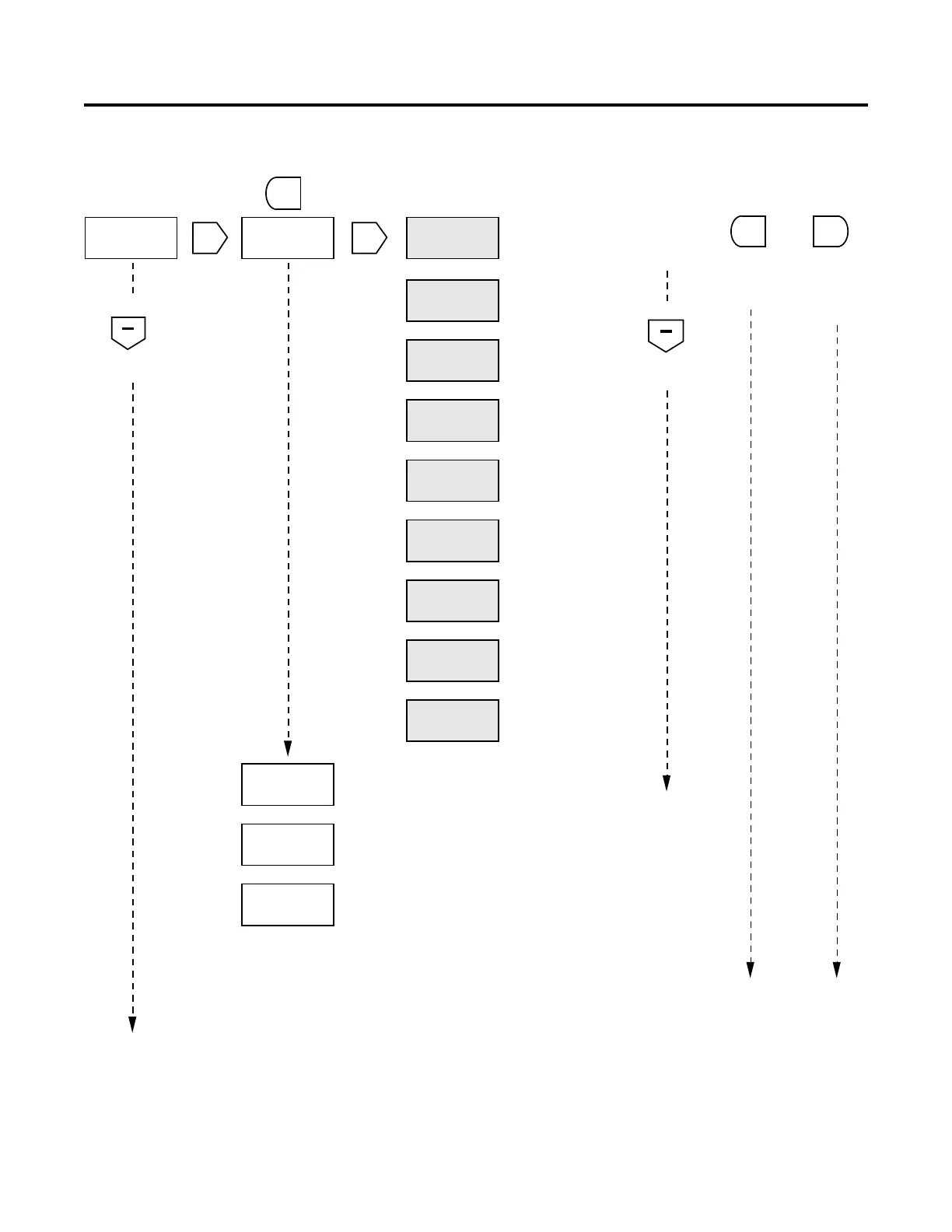

PROGRAMMING CONTROL INPUTS
See pages 10-11 for detailed description of
programming options.
MAIN MENU SUB MENU EDIT MENU
Data field flashes
INPUT 1
DISABLED
SEL
PROGRAM
INPUTS
SEL
Define input function from the
list provided. Repeat for
INPUT 2, INPUT 3, INPUT 4.
INPUT 1
LOCK ALL
INPUT 1
OUT CTRL
INPUT 1
RS C EDG
INPUT 1
RS C LVL
INPUT 1
RS B EDG
INPUT 1
RS T EDG
INPUT 1
STOP CNT
INPUT 1
LOCK PGM
INPUT 2
DISABLED
INPUT 3
DISABLED
INPUT 4
DISABLED
Output Control
Reset Counter,
Edge triggered
Reset Counter,
Level sensitive
Reset Batch,
Edge triggered
Reset Totalizer,
Edge triggered
Count Inhibit
Lock Program
mode.
Lock Program &
Preset edit mode
Repeated as above for INPUT 1.
Repeated as above for INPUT 1.
Repeated as above for INPUT 1.
PROGRAM
OUTPUTS
press
to return
one menu
level
press
to enter
data and
return one
menu level
press
to exit to
main menu
press
to scroll
down
press
to scroll
down
ENT
EXIT
INPUT 1
DISABLED
EXIT
