Eaton Ellipse ECO 650 User Manual

4
614-06803-00

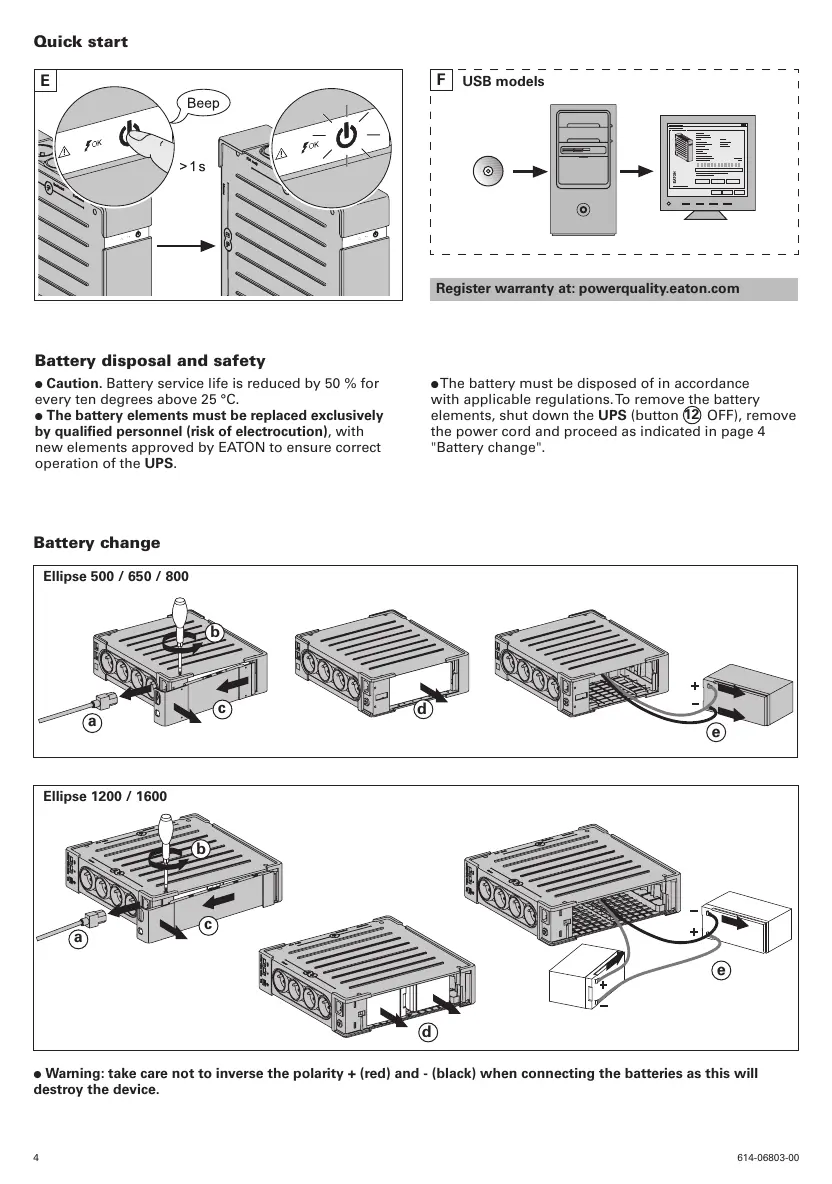

Quick start
E
F
Register warranty at: powerquality.eaton.com
USB models
Battery change
l Warning: take care not to inverse the polarity + (red) and - (black) when connecting the batteries as this will
destroy the device.
a
b
c
d
e
a
b
c
d
e
Ellipse 500 / 650 / 800
Ellipse 1200 / 1600
Battery disposal and safety
l Caution. Battery service life is reduced by 50 % for
every ten degrees above 25 °C.
l The battery elements must be replaced exclusively
by qualified personnel (risk of electrocution), with
new elements approved by EATON to ensure correct
operation of the UPS.
l The battery must be disposed of in accordance
with applicable regulations. To remove the battery
elements, shut down the UPS (button
12
OFF), remove
the power cord and proceed as indicated in page 4
"Battery change".
614-06803-00.indd 4 10/12/2010 11:15:08

Eaton Ellipse ECO 650 Specifications

General

Power Rating	650 VA
Output Voltage	230V
USB Port	Yes
Surge Protection	Yes
Waveform Type	Stepped approximation to a sinewave
Output Power Capacity	400 W
Battery Type	Sealed lead-acid
Number of Outlets	4
Topology	Line-interactive
Communication	USB port
Efficiency	Typical 95%
Frequency Range	50/60 Hz
Typical Recharge Time	4-6 hours
Operating Temperature	0 to +40°C
Relative Humidity	0-95% non-condensing
Standards	IEC 62040-3
Safety Approvals	CE
Outlets	4 IEC outlets
