Instruction Book
Page 2
Effective: May 2006
I.B. 2C12060H08
For more information visit: www.EatonElectrical.com
1-2 SAFETY FEATURES
Magnum DS, DSX and DSL circuit breakers and associ-
ated drawout equipment are manufactured with built-in
interlocks and safety related features. They are provided
to reduce hazards to operating personnel and provide
proper operating sequences.
MAGNUM DS, DSX AND DSL CIRCUIT BREAKERS
ARE ROBUST AND ARE PROVIDED WITH SAFETY
FEATURES. NEVERTHELESS, THE VOLTAGES,
CURRENTS AND POWER LEVELS AVAILABLE IN
AND AROUND THIS EQUIPMENT WHEN IT IS IN
OPERATION ARE EXTREMELY DANGEROUS AND
COULD BE FATAL. UNDER NO CIRCUMSTANCES
SHOULD INTERLOCKS AND OTHER SAFETY FEA-
TURES BE MADE INOPERATIVE, AS THIS MAY
RESULT IN DEATH, BODILY INJURY OR PROPERTY
DAMAGE.
1-3 SAFETY PRACTICES
To protect personnel associated with the installation,
operation and maintenance of this equipment, the fol-
lowing practices must be followed:
Table 1.1 Magnum DS/DSX Ratings at 240, 480, 600 volts
!
WARNING
A
B
C
D
E
A

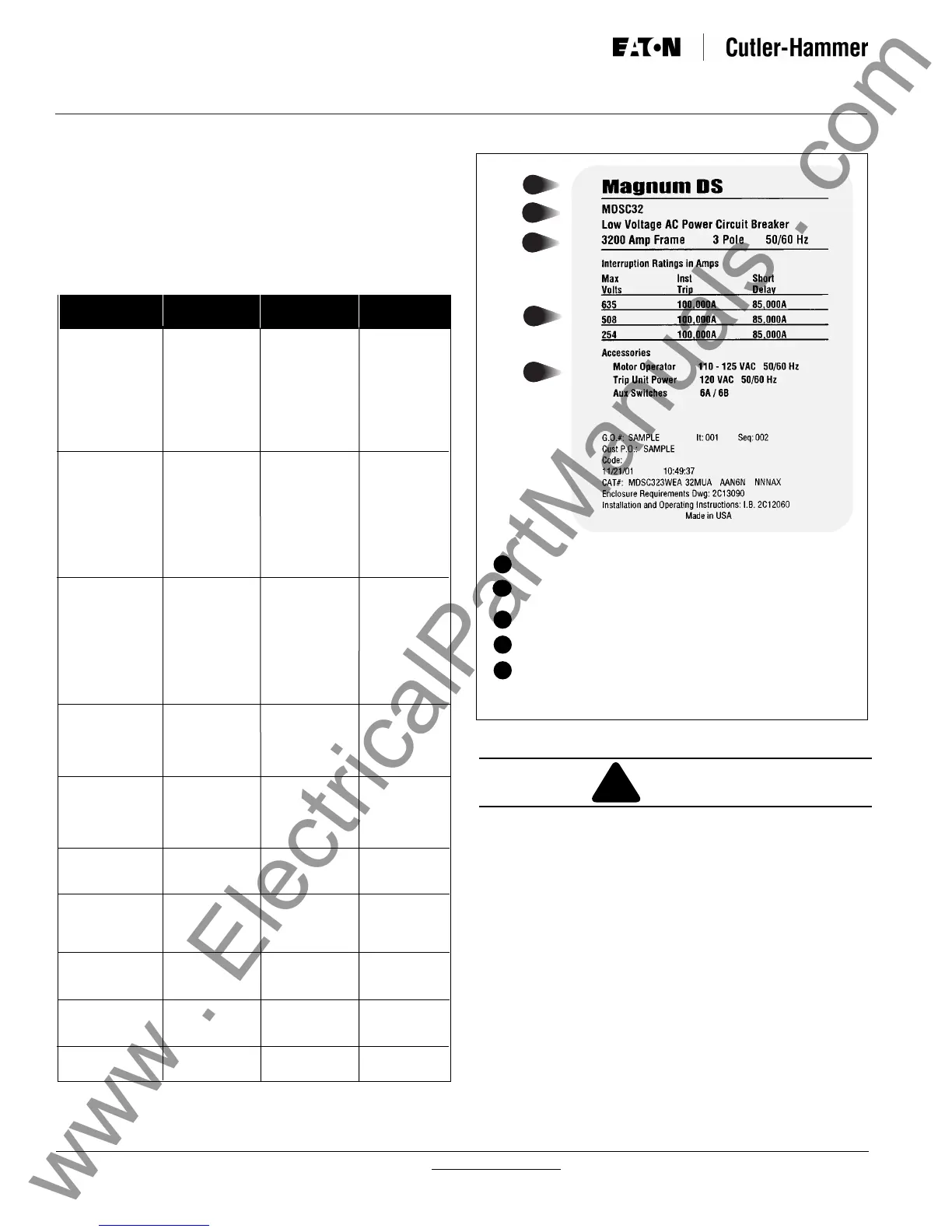

Figure 1-2 Typical Magnum DS (MDS) Nameplate
Low voltage power circuit breaker family name
Breaker family designation number
C
Breaker frame size in amperes
D
Interrupting capacity rating
E
Factory Equipped Accessories
Maximum Breaker Interrupting Short Time
Amperes Designation Rating Rating
800 MDN-408 42 kA 42 kA
MDN-508 50 kA 50 kA
MDN-608 65 kA 65 kA
MDS-X08 200 kA (240v, 480v.) 30 kA
MDS-408 42 kA 42 kA
MDS-508 50 kA 50 kA
MDS-608 65 kA 65 kA
MDS-808 85 kA 85 kA
MDS-C08 100 kA 85 kA
1200 MDN-412 42 kA 42 kA
MDN-512 50 kA 50 kA
MDN-612 65 kA 65 kA
MDS-X12 200 kA (240v, 480v.) 30 kA
MDS-412 42 kA 42 kA
MDS-512 50 kA 50 kA
MDS-612 65 kA 65 kA
MDS-812 85 kA 85 kA
MDS-C12 100 kA 85 kA
1600 MDN-416 42 kA 42 kA
MDN-516 50 kA 50 kA
MDN-616 65 kA 65 kA
MDS-X16 200 kA (240v, 480v.) 30 kA
MDS-416 42 kA 42 kA
MDS-516 50 kA 50 kA
MDS-616 65 kA 65 kA
MDS-816 85 kA 85 kA
MDS-C16 100 kA 85 kA
2000 MDS-520 50 kA 50 kA
MDS-X20 200 kA (240v, 480v.) 30 kA
MDS-620 65 kA 65 kA
MDS-820 85 kA 85 kA
MDS-C20 100 kA 85 kA
2500 MDS-525 50 kA 50 kA
MDS-X25 200 kA (240v, 480v.) 50 kA
MDS-625 65 kA 65 kA
MDS-825 85 kA 85 kA
MDS-C25 100 kA 85 kA
3000 MDS-630 65 kA 65 kA
MDS-830 85 kA 85 kA
MDS-C30 100 kA 85 kA
3200 MDS-X32, 3N 200 kA (240v, 480v.) 50 kA
MDS-632 65 kA 65 kA
MDS-832 85 kA 85 kA
MDS-C32 100 kA 85 kA
4000 MDS-X40 200 kA (240v, 480v.) 50 kA
MDS-840, 84N 85 kA 85 kA
MDS-C40, C4N 100 kA 100 kA
5000 MDS-X50 200 kA (240v, 480v.) 50 kA
MDS-850, 85N 85 kA 85 kA
MDS-C50, C5N 100 kA 100 kA
6000 MDS-860, 86N 85 kA 85 kA
MDS-C60, C6N 100 kA 100 kA
B
