CL-7 control in Howard Industries control box
Table 7. Kit Parts Identification
Item Description Part Number Qty
1 CL-7 PRA wiring harness,
Siemens/Howard control
A64316200F 1
2 Right Faceplate E0003X00G29 1
3 Latch E0003X00G31 1
4 Shoulder screw 0800071110Z 2
5 SS flat washer, #6 0800019079Z 2
6 Lock Nut, 6-32 hex 0800071115Z 1
7 Left hinge bracket E0003X00G32 1
8 Hinge E0003X00G47 2
9 SS machine screw, 6-32X0.38 0800071090Z 4
10 SS Lock washer, #6 0800070916Z 4
11 Ground lead E0003X00G160 1
12 Adhesive cable-tie anchors 0800069825Z 2
13 Cable tie 0800011079Z 2
Required tools

Screwdriver (standard)

Screwdriver (Phillips head)

3/8-Inch nut driver or combination wrench

5/16-Inch nut driver or combination wrench
ote:N Verify all kit items are present before beginning
installation procedure.
Installation procedure
Follow these instructions to install the CL-7 PRA on a
voltage regulator manufactured by Howard Industries.
1. Remove existing control per manufacturer‘s
requirements. Retain the hinge pins and terminal block
wing-nuts.
ote:N If the Howard Industries style wiring harness
(Figure 41), hinge bracket and latch bracket
(Figure 43) have already been installed on the
control, proceed to Step 14.
ote:N The Howard Industries harness may be equipped
with two wires colored white and white/blue with
two-terminal connectors as shown in Figure 41. The
wires are for connection to the CL-7 control general
purpose inputs (GPIs). The wires can be used for
analog voltage reduction or other programmable
functionality. See document MN225003EN, CL-7
Voltage Regulator Control Installation, Operation, and
Maintenance Instructions for more information on
the GPIs.

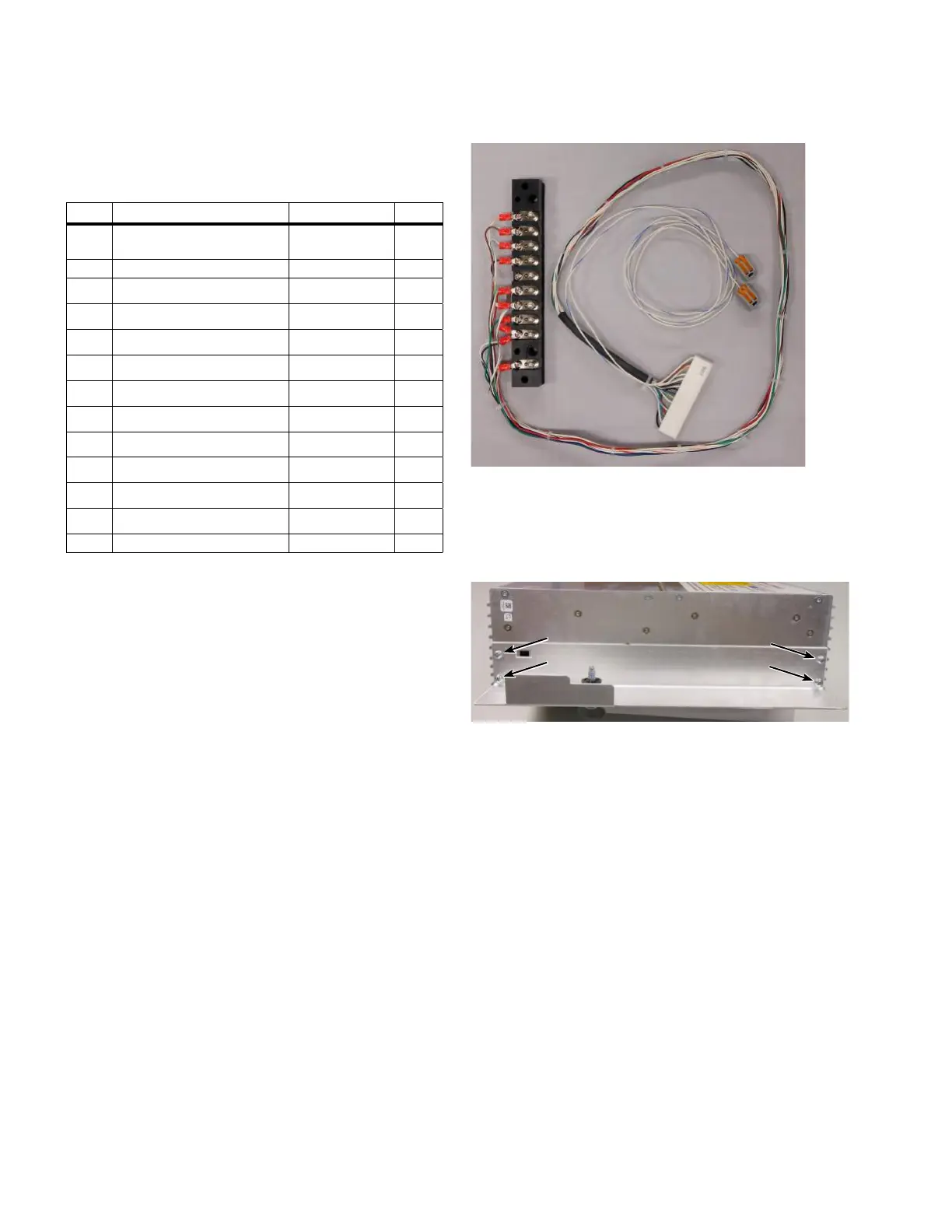

Figure 41. Item 1, Howard Industries wiring harness for
the CL-7 control
2. Using a screwdriver, remove the four screws to
uninstall the existing latch bracket from the left side of
the CL-7 control; retain the screws. See Figure 42.
Figure 42. Removal of latch bracket from CL-7 control
3. Install the left hinge bracket (Item7) using the screws
retained from the last step. See Figure 43.
4. Install the hinges (Item8) using the provided screws
and washers, (Items9 and 10). See Figure 43.
16
CL-7 Control Panel Retrofit
InstallatIon InstructIons MN225018EN April 2018
