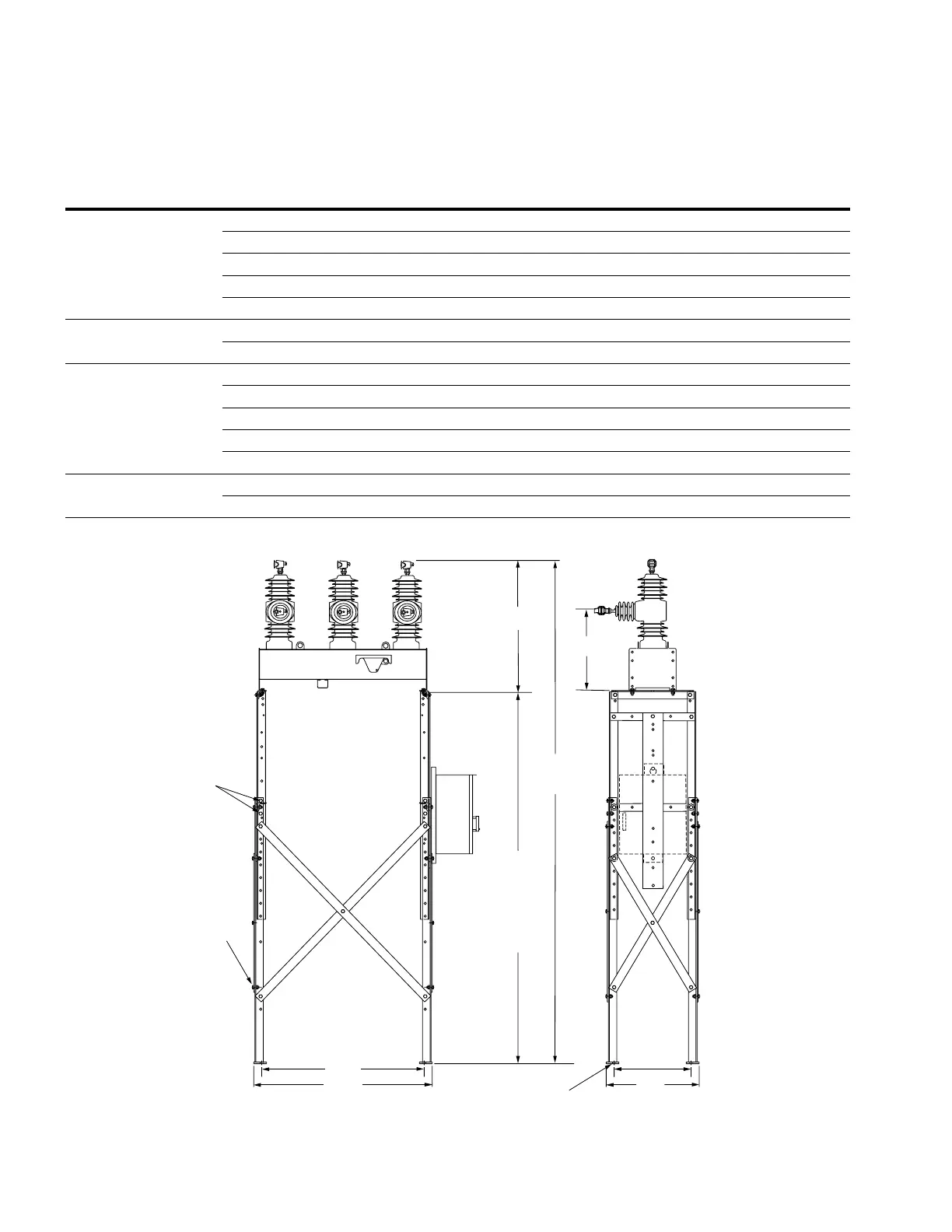

Figure 1. Substation mounting dimensions for NOVA recloser, DAS switch, VCS-3 switch, and TVS sectionalizer.
2216
(87.25)
adjustable to
2826
(111.25)
in
76 (3)
increments
1060
(41.75)
965
(38)
457
(18)
552
(21.75)
19 (0.75)
Mounting Hole (4)
B
O
P
E
N
C
A
Step 1
Items 9, 13,
and 14
Step 1
Items 9, 13,
and 14
Installation dimensions
ote:N All dimensions are mm (inches). Dimensions shown are approximate.
UNIT TYPE Rating
A
(at minimum height) B C
NOVA Recloser 15 kV (110 kV BIL) 3124 (123) 908 (35.75) 508 (20)
15 kV (125 kV BIL) 3180 (125.25) 964 (38) 564 (22.25)
27 kV (125 kV BIL) 3180 (125.25) 964 (38) 564 (22.25)
27 kV (150 kV BIL) 3279 (129) 1063 (41.75) 663 (26)
38 kV 3279 (129) 1063 (41.75) 663 (26)
DAS Switch
without CT
15 kV 3067 (120.75) 851 (33.5) 508 (20)
27 kV 3128 (123.25) 911 (36) 569 (22.5)
DAS Switch
with CT
15 kV (110 kV BIL) 3124 (123) 908 (35.75) 508 (20)
15 kV (125 kV BIL) 3180 (125.25) 964 (38) 564 (22.25)
27 kV (125 kV BIL) 3180 (125.25) 964 (38) 564 (22.25)
27 kV (150 kV BIL) 3279 (129) 1063 (41.75) 663 (26)
38 kV 3279 (129) 1063 (41.75) 663 (26)
VCS-3 Switch 15 kV 3067 (120.75) 851 (33.5) 508 (20)
27 kV 3128 (123.25) 911 (36) 569 (22.5)
2 SUBSTATION FRAME KNOVA59-1 AND KNOVA59-3 ASSEMBLY AND INSTALLATION INSTRUCTIONS MN280043EN January 2016
