LAS/VAS Auxiliary Section Assembly and Installation | Service Procedures TRSM0940
LAS/VAS Auxiliary Section Assembly and Installation
Special Instructions
None
Special Tools
PVC pipe (4-3/8" tall x 4" diameter)

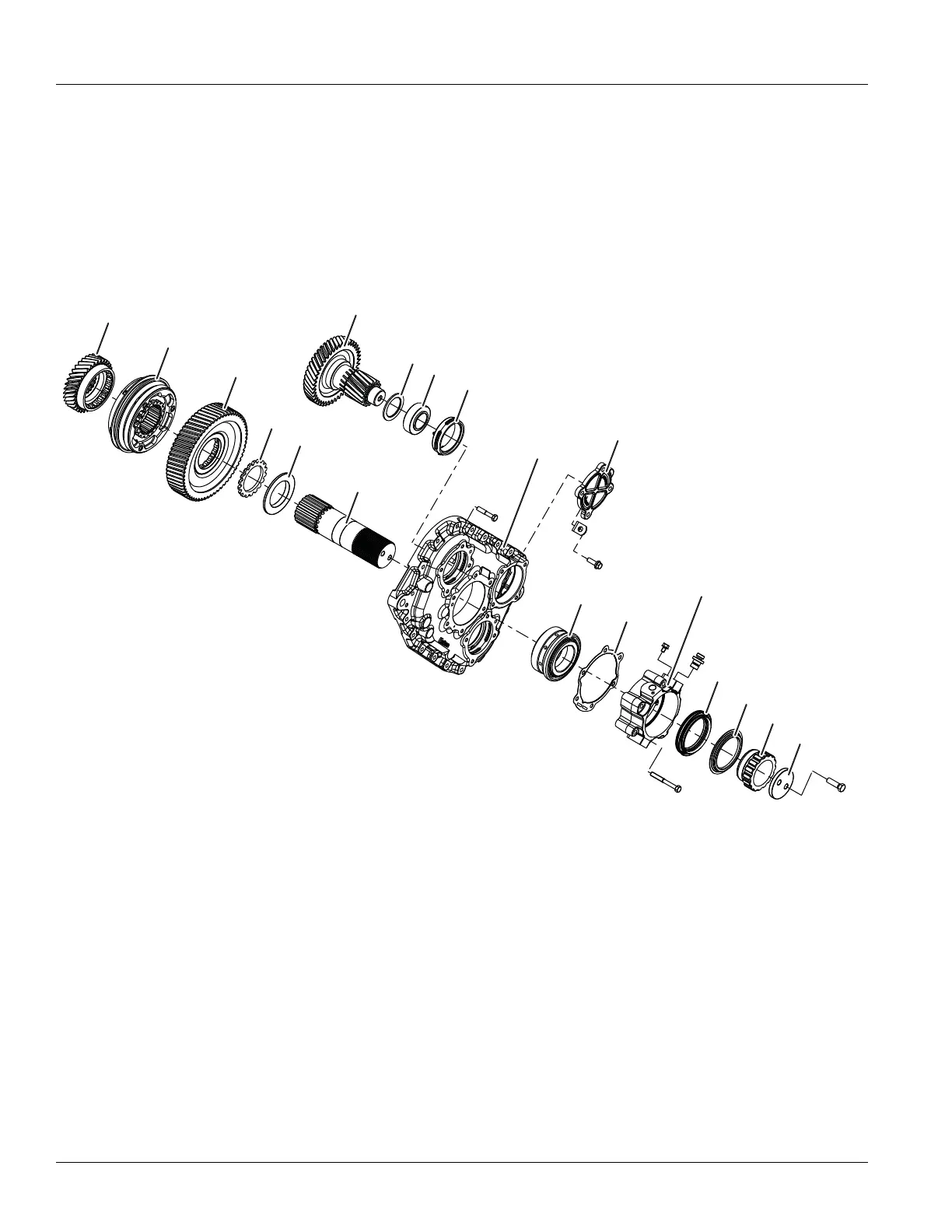

Component Identification
1. Auxiliary Drive Gear
2. Synchronizer Assembly
3. Reduction Gear
4. Washer
5. Spacer
6. Auxiliary Main Shaft
7. Auxiliary Counter Shaft
8. Spacer
9. Bearing
10. Race
11. Auxiliary Case
12. Auxiliary Counter Shaft Cover
13. Auxiliary Main Shaft Bearing Set
14. Gasket
15. Bearing Cover
16. Seal
17. Dust Shield
18. Speed Rotor Assembly
19. Output Yoke Retainer Flange
4
1
2
3
5
6
7
8
9
10
12
13
14
16
17
18
19
11
15
