TRSM0940 Service Procedures | LAS/VAS Auxiliary Section Assembly and Installation
LAS/VAS Auxiliary Section Assembly

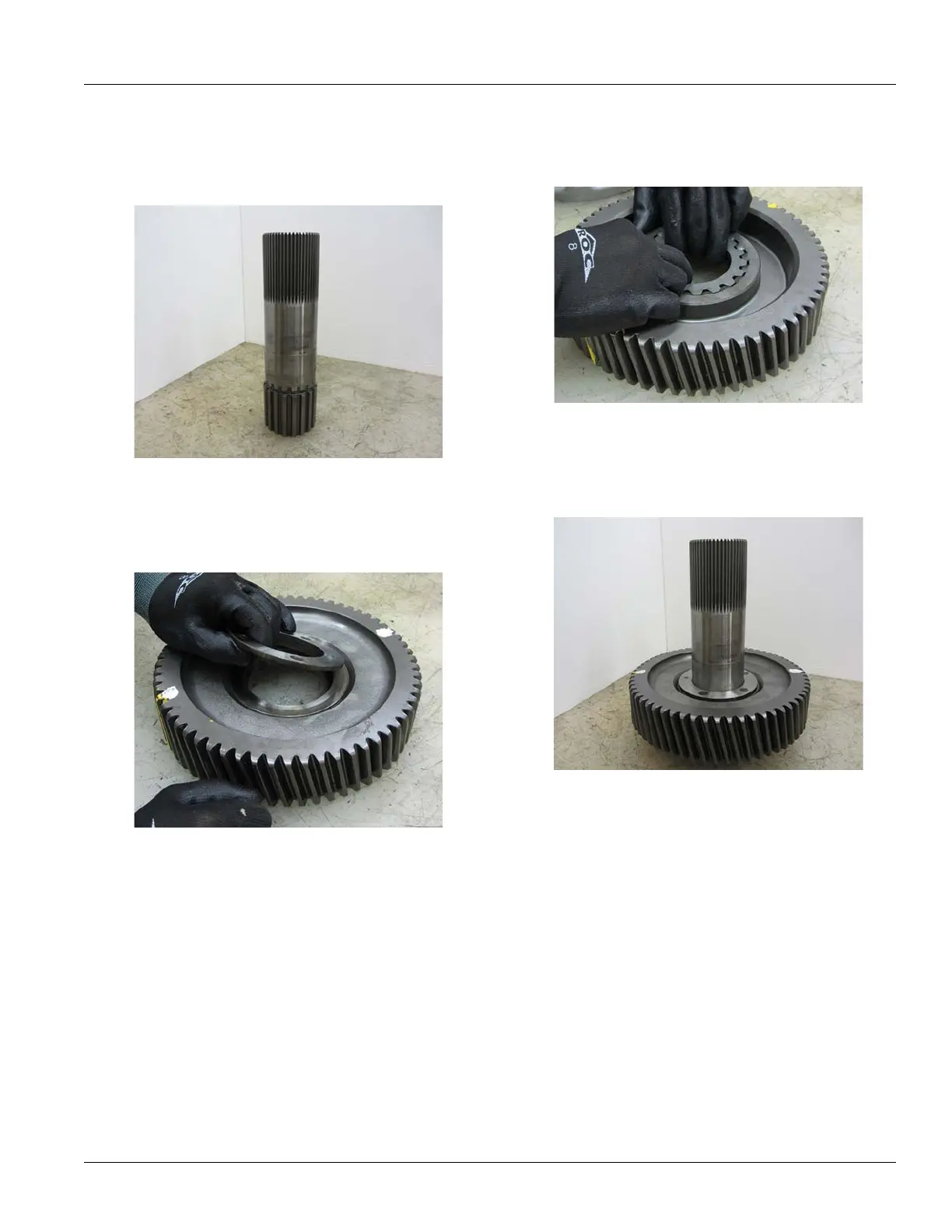

1. Place Output Shaft on bench with yoke end facing up.
2. Install the stepped washe
r onto the backside of the
Auxiliary Reduction Gear.
3. Install the splined spac
er into the clutching teeth of the
Auxiliary Reduction Gear.
4. Install
the Auxiliary Reduction Gear onto the Output
Shaft with the clutching teeth facing down.
