Ebyte E32-433T30D User Manual

Bhe Chengdu Ebyte Electronic Technology Co,Ltd E32-433T30D user manual

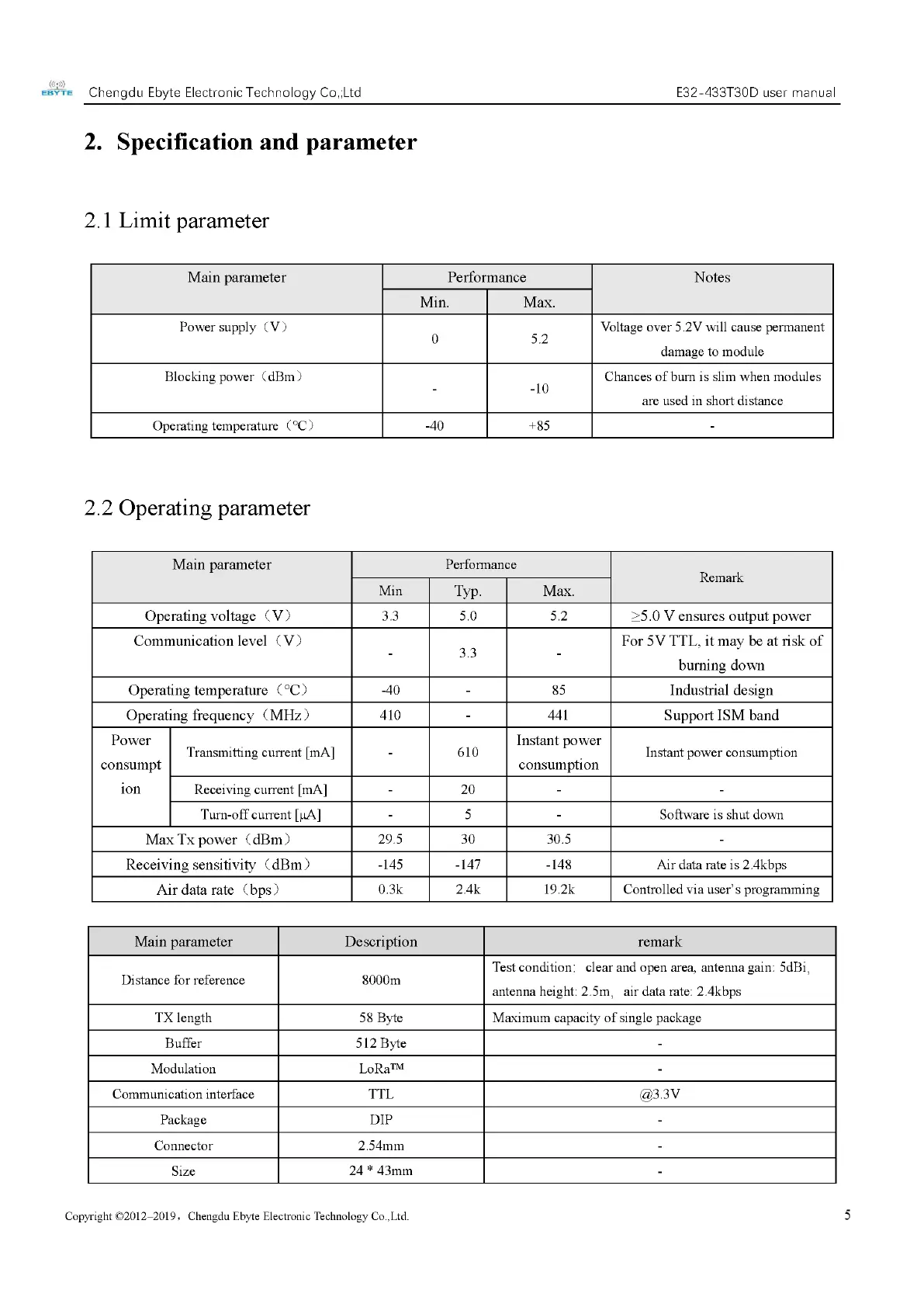

2. Specification and parameter
2.1 Limit parameter
Main parameter Performance Notes
Min. Max.
Power supply (V) Voltage over 5.2V will cause permanent
0 5.2
damage to module
Blocking power (dBm> Chances of burn 1s slim when modules
are used in short distance
Operating temperature (°C) -40 +85 -
2.2 Operating parameter
Main parameter Performance
Remark
Min Typ. Max.
Operating voltage (V) 33 5.0 52 >5.0 V ensures output power
Communication level (V) ) 33 ) For 5V TTL, it may be at risk of
burning down
Operating temperature (°C) -40 - 85 Industrial design
Operating frequency (MHz) 410 - 441 Support ISM band
Power oo Instant power }
Transmitting current [mA] - 610 . Instant power consumption
consumpt consumption
ion Receiving current [mA] - 20 - -
Turn-off current [uA] - 5 - Software 1s shut down
Max Tx power (dBm> 29.5 30 30.5 -
Receiving sensitivity (dBm) -145 -147 -148 Air data rate is 2.4kbps
Air data rate (bps) 0.3k 24k 19.2k Controlled via user's programming
Main parameter Description remark
Test condition: clear and open area, antenna gain: 5dB1,
Distance for reference 8000m antenna height: 2.5m, air data rate: 2.4kbps
TX length 58 Byte Maximum capacity of single package
Buffer 512 Byte -
Modulation LoRa™ -
Communication interface TTL @3.3V
Package DIP -
Connector 2.54mm -
Size 24 * 43mm -
