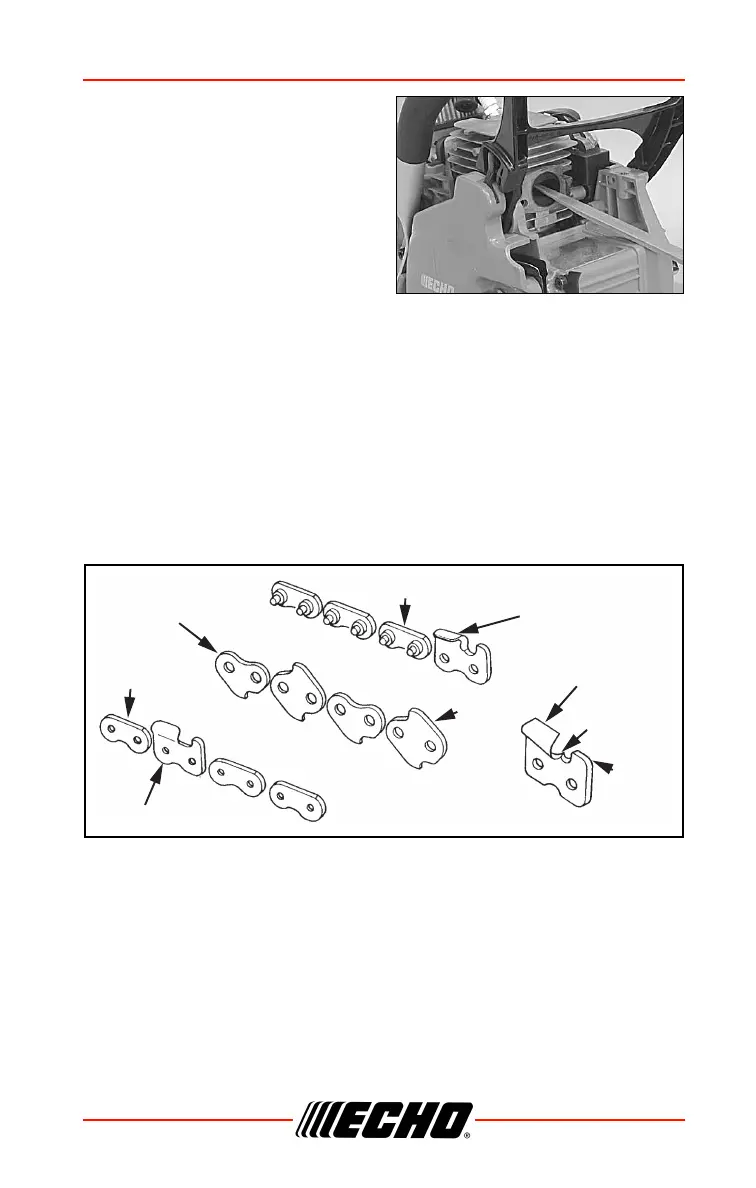

CS-352 MAINTENANCE
X7503275704 49
© 09/20 ECHO Incorporated
4. Use a wood or plastic scraping
tool to clean deposits from
cylinder exhaust port.
5. Install muffler. Tighten muffler
mounting bolts (or nuts) to
7 - 9 N•m (60- 80 in•lbf).
6. Install cylinder cover and attach
spark plug lead.
7. Start engine, and allow unit to
warm up at idle for several
minutes.
8. Stop engine, and re-tighten mounting bolts (or nuts) to 7 - 9 N•m
(60-80 in•lbf).
9. Install guide bar and chain. Adjust chain tension.
10. Start engine and check for exhaust leaks between muffler and cylinder
head. Stop engine if leak is found and correct problem before operating
chain saw.
Setting The Saw Chain
Important points for proper maintenance of saw chain:
Keep the cutters sharp at all times.
Keep the left and the right cutters properly aligned.
Note that blunt or irregular cutters will result in poor cutting performance,
increased vibration of chains and premature breakage of the saw chain.
Tie Strap
Right Hand Cutter
Drive Link
Preset Tie Strap
Left Hand Cutter
Top
Plate
Side
Plate
Depth
Gage
Guard
Link
