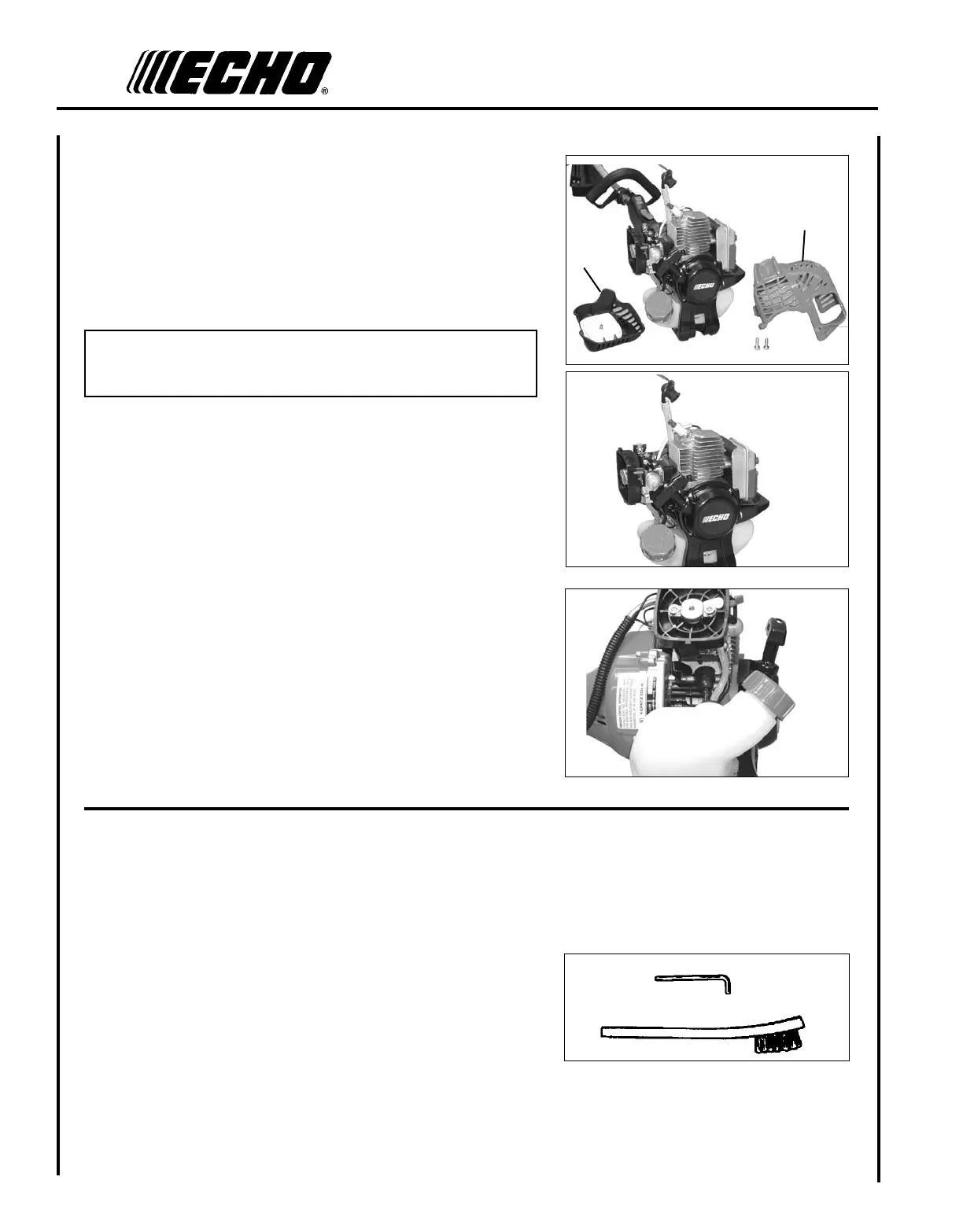

1. Remove spark plug lead.
2. Remove air cleaner cover.
3. Remove 2 engine cover screws and engine cover (B).
(1 machine screw - handle side)
(1 tapping screw - starter side)
IMPORTANT
DO NOT use a metal scraper to remove dirt from the cylinder ns.
4. Use brush to remove dirt from the cylinder ns.
5. Remove ignition wires from clip for cleaning.
6. Remove grass and leaves from the grid between the recoil starter
and fuel tank.
7. Assemble components in reverse order.
e X h a u s t s y s t e m
Spark Arrestor Screen
Level 2.
Tools Required: T27 Torx L-Wrench, Soft Metal Brush
Parts Required: Spark Arrestor Screen, Gasket
