10
Before you start
Assembly
Loop handle version

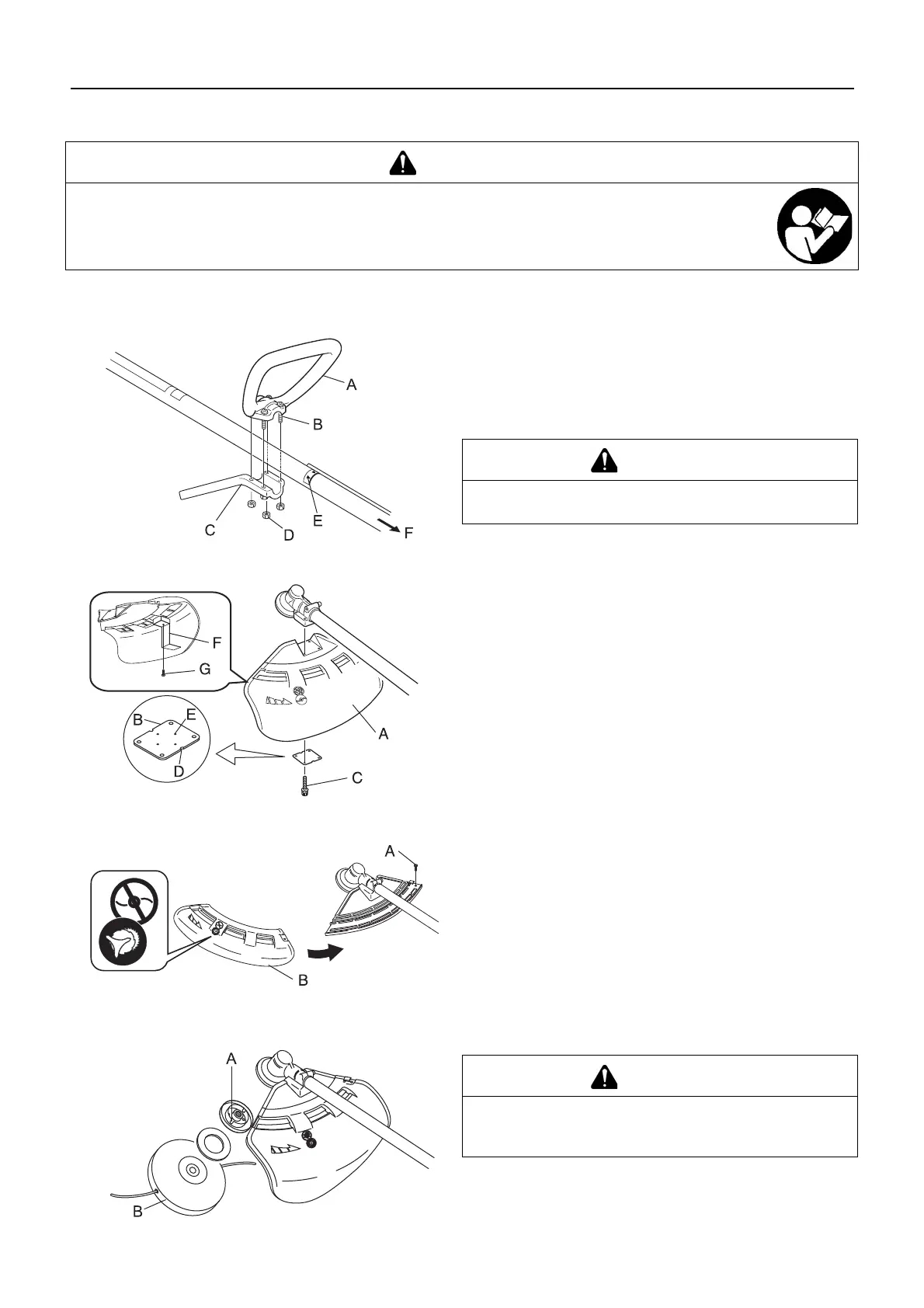

Loop handle assembly
Assemble loop handle (A) and bracket (C) to drive shaft assem-
bly.
Position handle in comfortable operating position and tighten
Bolts (B).
Installation of shield
1. Fit bracket (A) to mounting portion of angle transmission and
fix the bracket by holding fitting plate (B) pressed from be-
neath and tighten 4 bolts (M5×25) (C) lightly.
2. Get notches (D) and convexes of fitting plate (E) to face cor-
responding convexes and concaves of bracket, and fix
bracket tightening 4 bolts (M5×25) securely.
3. Fit cut off knife (F) to the shield for nylon line cutting head us-
ing screw (5×12) (G).
Method to change shield
There are two types of shields : namely one used exclusively
for nylon line cutting head and another one used exclusively
for metal blade. When metal blade is used, use the shield for
metal blade.
1. Remove bolt (M5×20) (A) on the right side of the shield and
slide the shield to the left and remove it. Put shield of another
type (B) into groove and slide it to the right until it stops and
be sure to fasten with the removed bolt (M5×20).
Installing nylon line cutting head
1. Insert locking tool into a hole located on the right side of an-
gle transmission while forcing retainer spring to the left side.
2. Insert locking tool further into blade retainer fixing slot (A) to
fix output shaft.
WARNING
Read the operator's manual carefully to ensure that you assemble the product correctly.
Using a product that has been incorrectly assembled could lead to an accident or serious injury.
E: Arrow F: To engine
CAUTION
Install the handle so that it does not hide any of the
safety decals.
CAUTION
Fix output shaft securely using locking tool in order to
prevent it form rotating when nylon cutting head is
mounted.
