24
4. Remove grass and leaves from the grid between the recoil starter
and fuel tank.
5. Position cover over muffler, and secure with three (3) screws.
6. Connect spark plug lead to spark plug.

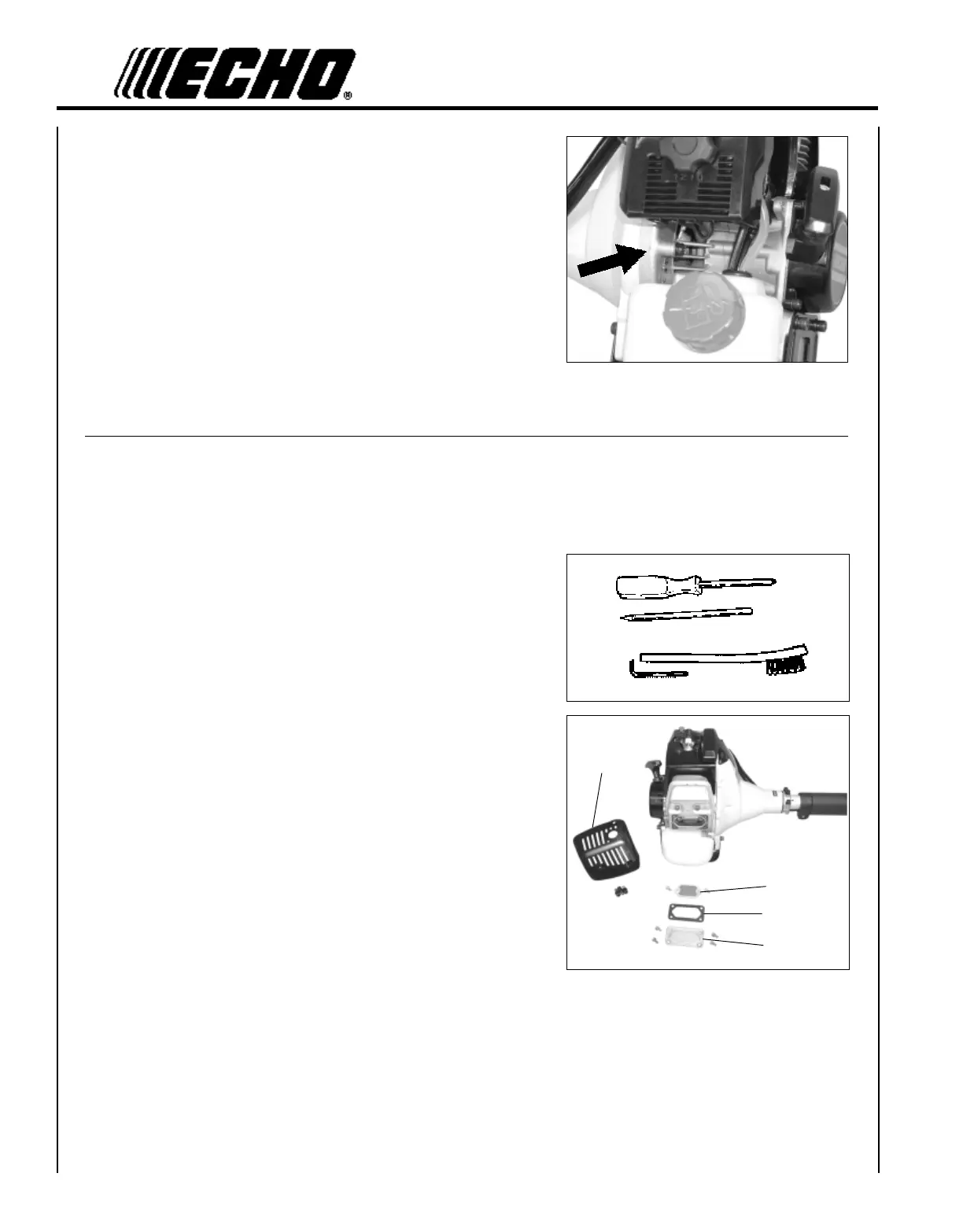

EXHAUST SYSTEM
Spark Arrestor Screen
Level 2.
Tools Required: Cross Head Screwdriver, Soft metal brush, Wooden
carbon scraper, 4 mm Hex Wrench
Parts Required: Screen P/N 14590555730
Gasket P/N 14586655730
1. Remove three (3) screws from muffler cover (A) and remove.
2. Remove screen holder (B), gasket (C) and screen (D) from muffler
body.
3. Clean carbon deposits from muffler components.
4. Replace screen if it is cracked, plugged or has holes burned
through.
5. Reassemble in reverse order of removal. Make sure screen is
positioned properly before tightening screws.
B
C
D
A
To Next Page
