ECR Dunkirk PWB-4D User Manual

23
FOR USE WITH
NATURAL GAS ONLY
REPAIR PARTS
NOTE: Actual gas valve may look
different than gas valve shown

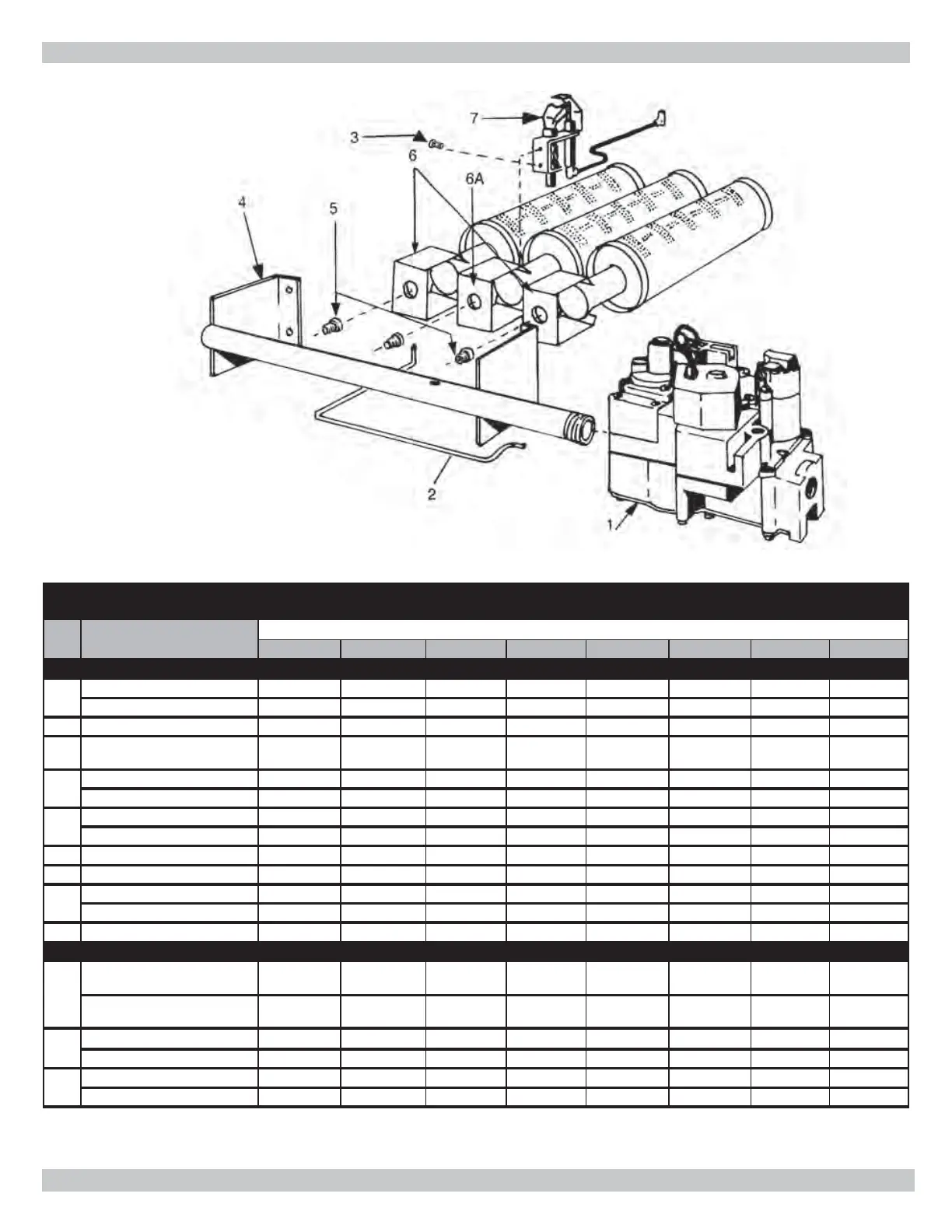

BURNER & MANIFOLD PARTS
This is a repair parts list – NOT a packing list!
KEY
NO.
DESCRIPTION
PART NUMBERS FOR
2 Section 3 Section 4 Section 5 Section 6 Section 7 Section 8 Section 9 Section
Electronic Intermittent Ignition (Shown)
1
24 Volt Gas Valve, Nat. 14662052 14662052 14662052 14662052 14662058 14662058 14662058 14662058
24 Volt Gas Valve, LP 14662062 14662062 14662062 14662062 14662059 14662059 14662059 14662059
2 Pilot Tube W/Fittings 43300201 43300201 43300201 43300201 43300201 43300201 43300200 43300200
3
10-32 x 1/2” Slotted Hex Head
Screws
14695307 14695307 14695307 14695307 14695307 14695307 14695307 14695307
4
Gas Manifold - Nat. 14616032 14616033 14616034 14616035 14616013 14616014 14616015 14616016
Gas Manifold - LP 14616009 14616010 14616011 14616012 14616013 14616014 14616015 14616016
5
*Main Burner Orifi ce - Nat. 14615041 14615041 14615041 14615041 14615042 14615042 14615042 14615042
*Main Burner Orifi ce - LP 14615043 14615043 14615043 14615043 14615043 14615043 14615043 14615043
6 Main Burner Less Pilot Bracket** - - - 14615532 14615532 14615532 14615532 14615532 14615532 14615532
6A Main Burner with Pilot Bracket 14615531 14615531 14615531 14615531 14615531 14615531 14615531 14615531
7
Pilot Burner with Orifi ce, Nat. 14662095 14662092 14662092 14662092 14662092 14662092 14662092 14662092
Pilot Burner with Orifi ce, LP 14662093 14662094 14662094 14662094 14662094 14662094 14662094 14662094
‡ Rollout Shield 42500932 42500933 42500934 42500935 42500936 42500937 42500938 42500939
Alternate Parts for Continuous Pilot - 24 Volt
1
24 Volt Gas Valve Continuous
Pilot - Nat.
14662051 14662051 14662051 14662051 14662060 14662060 14662060 14662060
24 Volt Gas Valve Continuous
Pilot - LP
--- 14695301 14695301 14695301 14695301 14695301 14695301 14695301
7
Pilot Burner - Nat. 14662098 14662098 14662098 14662098 14662098 14662098 14662098 14662098
Pilot Burner - LP --- 14662096 14662096 14662096 14662096 14662096 14662096 14662096
‡
Thermocouple- Nat. 14662037 14662037 14662039 14662039 14662039 14662039 14662036 14662036
Thermocouple- LP
---
14662037 14662039 14662039 14662039 14662039 14662036 14662036
*Requires 1 less than the number of sections.
**Requires 2 less than the number of sections.
‡ Not illustrated.
Quantity is 1 unless otherwise noted.
