ECS B85H3-M3 User Manual

Chapter 2
24
B85H3-M3 USER MANUAL

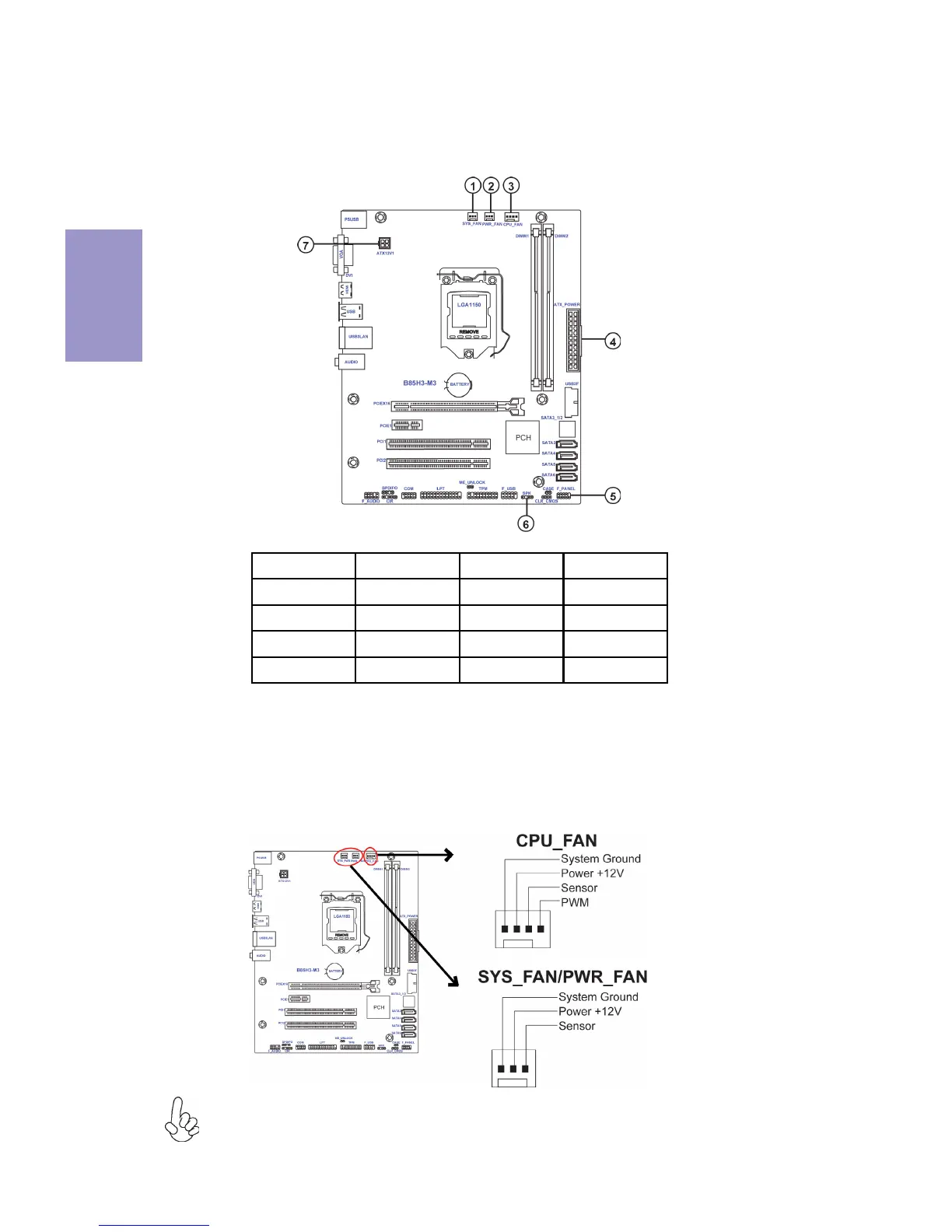

1, 2 & 3. SYS_FAN(System Cooling FAN Power Connector), PWR_FAN(Power
Cooling FAN Power Connector) & CPU_FAN(CPU cooling FAN Power Connector)
After you have installed the motherboard into a case, you can begin connecting the
motherboard components. Refer to the following:
Connect the system cooling fan connector to SYS_FAN.
Users please note that the fan connector supports the CPU cooling fan of 1.1A
~ 2.2A (26.4W max) at +12V.
2-4-7. Connecting Case Components
No. Components No. Components
1 SYS_FAN 5 F_PANEL
2PWR_FAN6 SPK
3CPU_FAN 7 ATX12V1
4ATX_POWER- -
Connect the power cooling fan connector to PWR_FAN.
Connect the CPU cooling fan cable to CPU_FAN
