Chapter 2
BSWI-D2 USER MANUAL
11

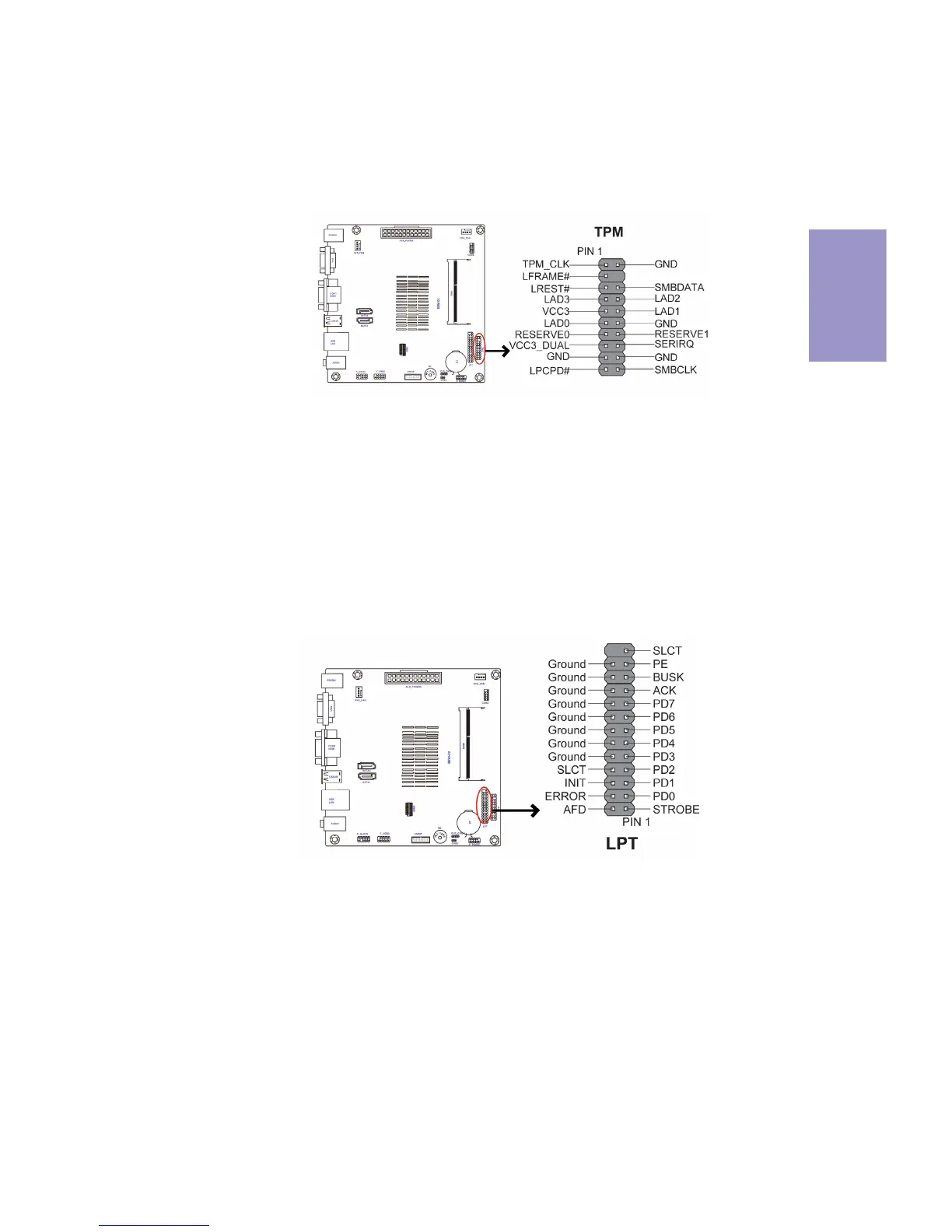

3. LPT
: Onboard P
arallel Port Header
This header can be used t
o connect to the printer
, scanner or other devices.
2. TPM: T
rust
ed Platf
orm Module header
T
ursted Pla
tf
orm Module (TPM) is a publised specification detailing a micr
o contr
ol-
ler that can store secured information, and implementations of that specification.
