Installing the Motherboard

Connecting Case Components

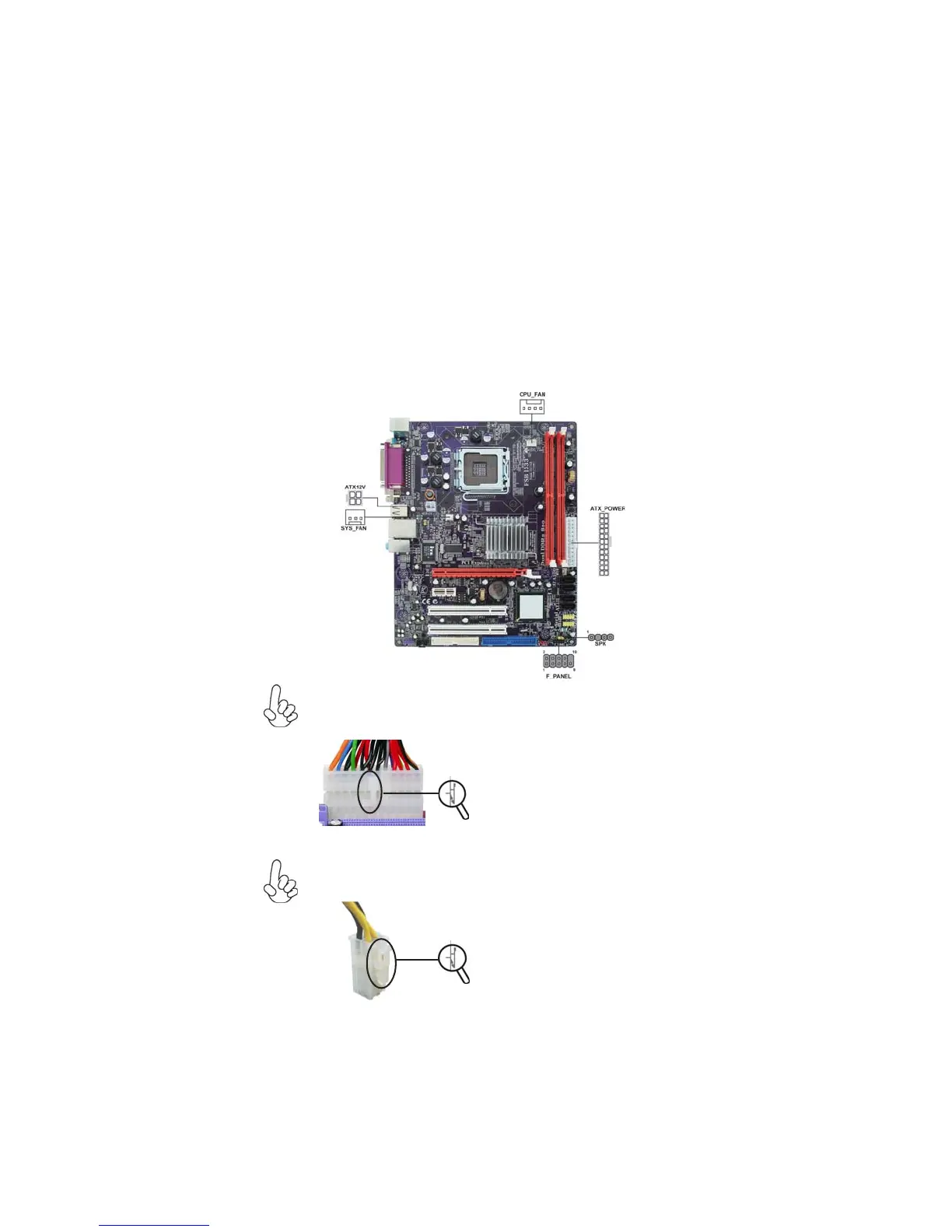

After you have installed the motherboard into a case, you can begin connecting the

motherboard components. Refer to the following:

1 Connect the CPU cooling fan cable to CPU_FAN.

2 Connect the system cooling fan connector to SYS_FAN.

3 Connect the case switches and indicator LEDs to the F_PANEL.

4 Connect the case speaker cable to SPK.

5 Connect the standard power supply connector to ATX_POWER.

6 Connect the auxiliary case power supply connector to ATX12V.

The ATX_POWER 24-pin connector allows you to connect to ATX v2.x

power supply.

With ATX v2.x power supply, users please

note that when installing 24-pin power

cable, the latches of power cable and the

ATX_POWER match perfectly.

Connecting 24-pin power cable

24-pin power cable

The ATX12V power connector is used to provide power to the CPU.

When installing 4-pin power cable, the

latches of power cable and the ATX12V

match perfectly.

Connecting 4-pin power cable

4-pin power cable

Other manuals for ECS G31T-M7

Questions and Answers:

Need help?

Do you have a question about the ECS G31T-M7 and is the answer not in the manual?

General

Number of memory slots	2
Maximum internal memory	4 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
Compatible processor series	Intel Core 2 Duo, Intel Core 2 Quad
S/PDIF out connector	Yes
Number of COM connectors	1
Number of SATA connectors	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Audio chip	VIA VT1708B
Power source type	ATX
Audio output channels	6.1 channels
Motherboard form factor	micro ATX
BIOS type	AMI
BIOS memory size	32 Mbit
