ECS H77H2-M3 User Manual

Chapter 2
24
H77H2-M4 USER MANUAL

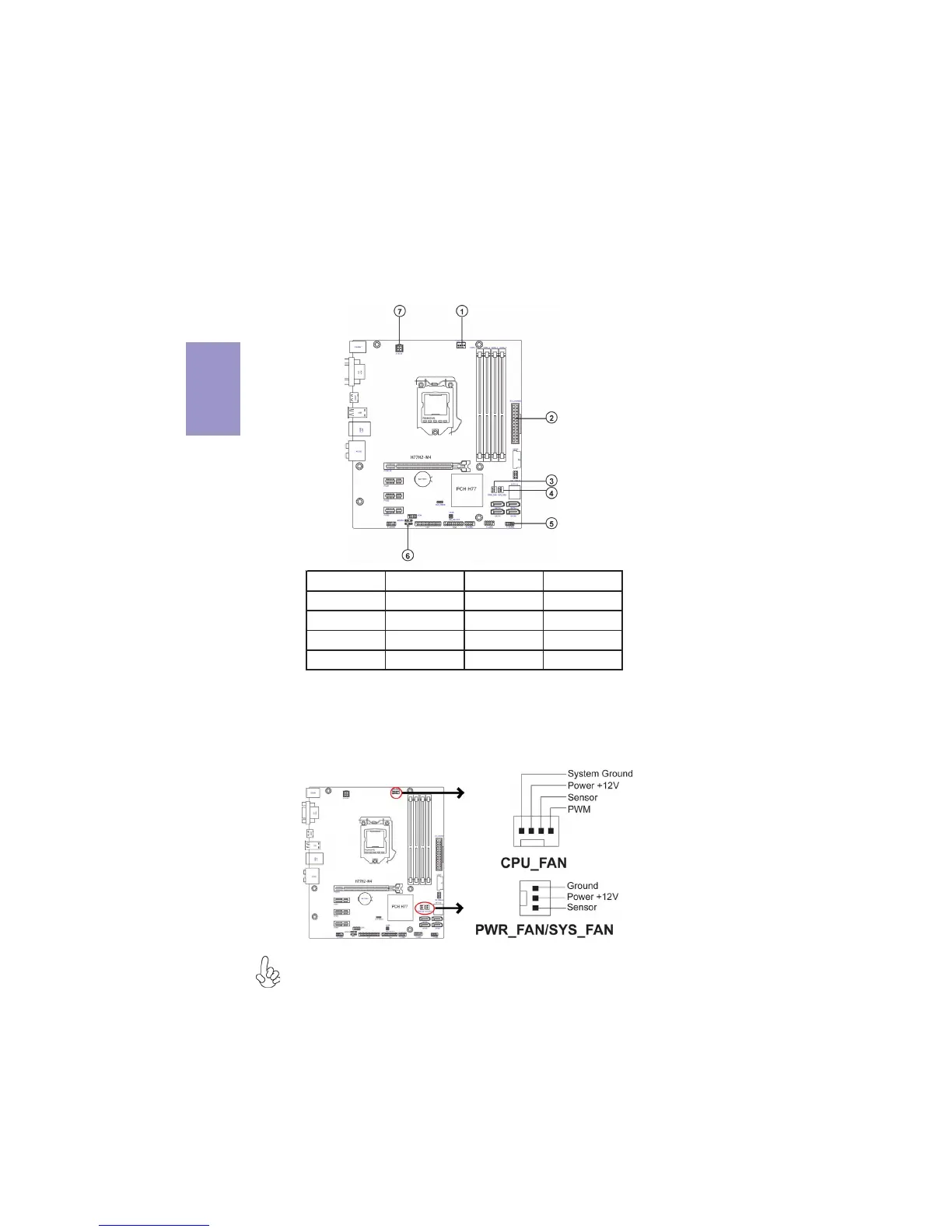

1, 3 & 4. CPU_FAN(CPU cooling FAN Power Connector), PWR_FAN(Power Cool-
ing FAN Power Connector) & SYS_FAN(System Cooling FAN Power Connector)
After you have installed the motherboard into a case, you can begin connecting the
motherboard components. Refer to the following:
Connect the CPU cooling fan cable to CPU_FAN.
Connect the system cooling fan connector to SYS_FAN.
Users please note that the fan connector supports the CPU cooling fan of 1.1A
~ 2.2A (26.4W max) at +12V.
2-4-7. Connecting Case Components
No. Components No. Components
1 CPU_FAN 5 F_PANEL
2ATX_POWER6 SPK
3 PWR_FAN 7 ATX_12V
4SYS_FAN- -
