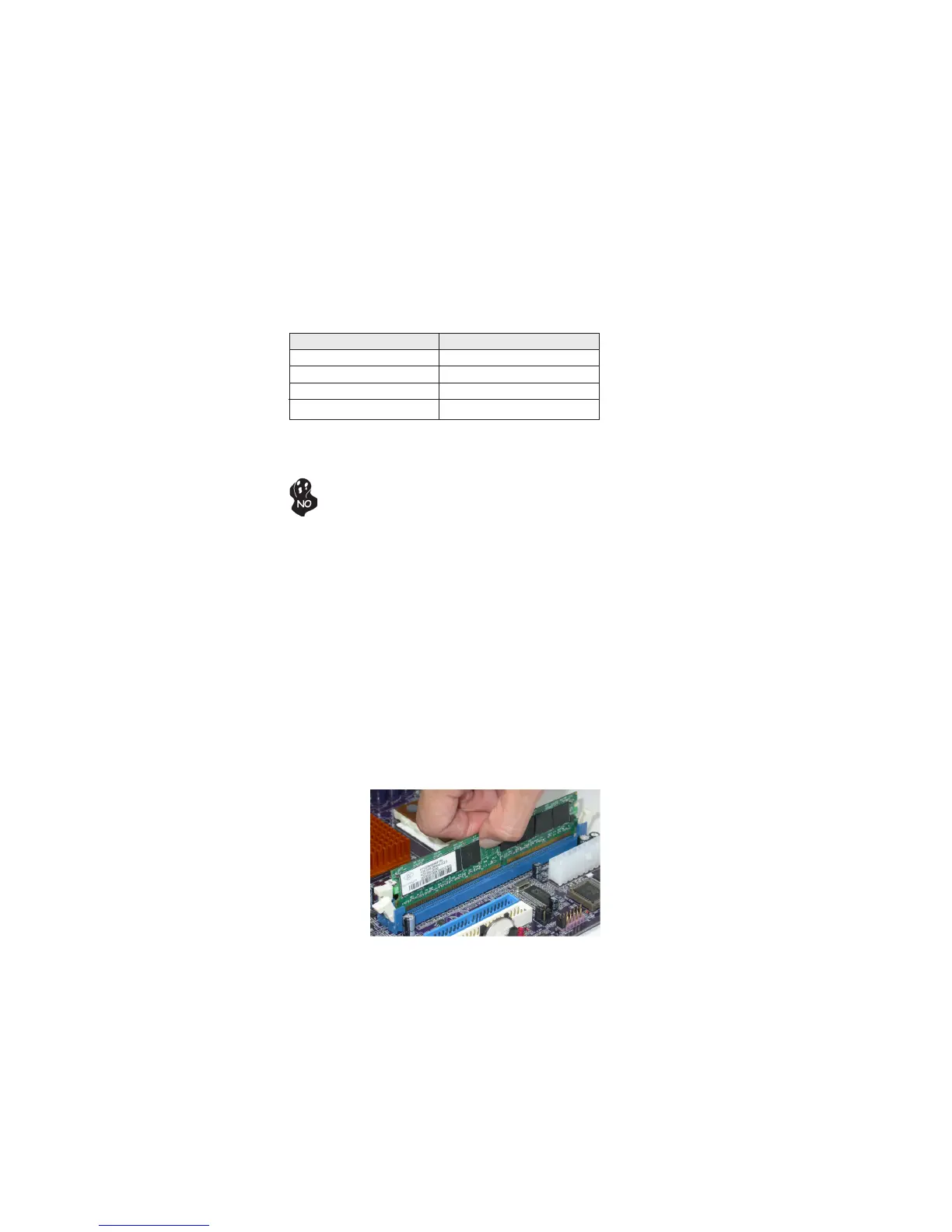

Installing the Motherboard
Installation Procedure
Refer to the following to install the memory modules.
1 This motherboard supports unbuffered DDR2 SDRAM only.
2 Push the latches on each side of the DIMM slot down.
3 Align the memory module with the slot. The DIMM slots are keyed with notches
and the DIMMs are keyed with cutouts so that they can only be installed
correctly.
4 Check that the cutouts on the DIMM module edge connector match the notches
in the DIMM slot.
5 Install the DIMM module into the slot and press it firmly down until it seats
correctly. The slot latches are levered upwards and latch on to the edges of
the DIMM.
6 Install any remaining DIMM modules.
Installing Memory Modules
This motherboard accommodates four 240-pin unbuffered DIMMs and supports DDR2 800
/667/533/400 DDR2 SDRAM. You must install at least one module in any of the four slots.
Each module can be installed with 8 GB of memory; the total memory capacity is 32 GB.
DDR2 SDRAM memory module table
You must install at least one module in any of the two or four slots. Each module can be
installed with 8 GB of memory.
DDR2 533 266 MHz
DDR2 667 333 MHz
DDR2 400 200 MHz
Do not remove any memory module from its antistatic packaging until you
are ready to install it on the motherboard. Handle the modules only by
their edges. Do not touch the components or metal parts. Always wear a
grounding strap when you handle the modules.
DDR2 800 400 MHz
Memory module Memory Bus
