22
Installing the Motherboard
Connecting I/O Devices

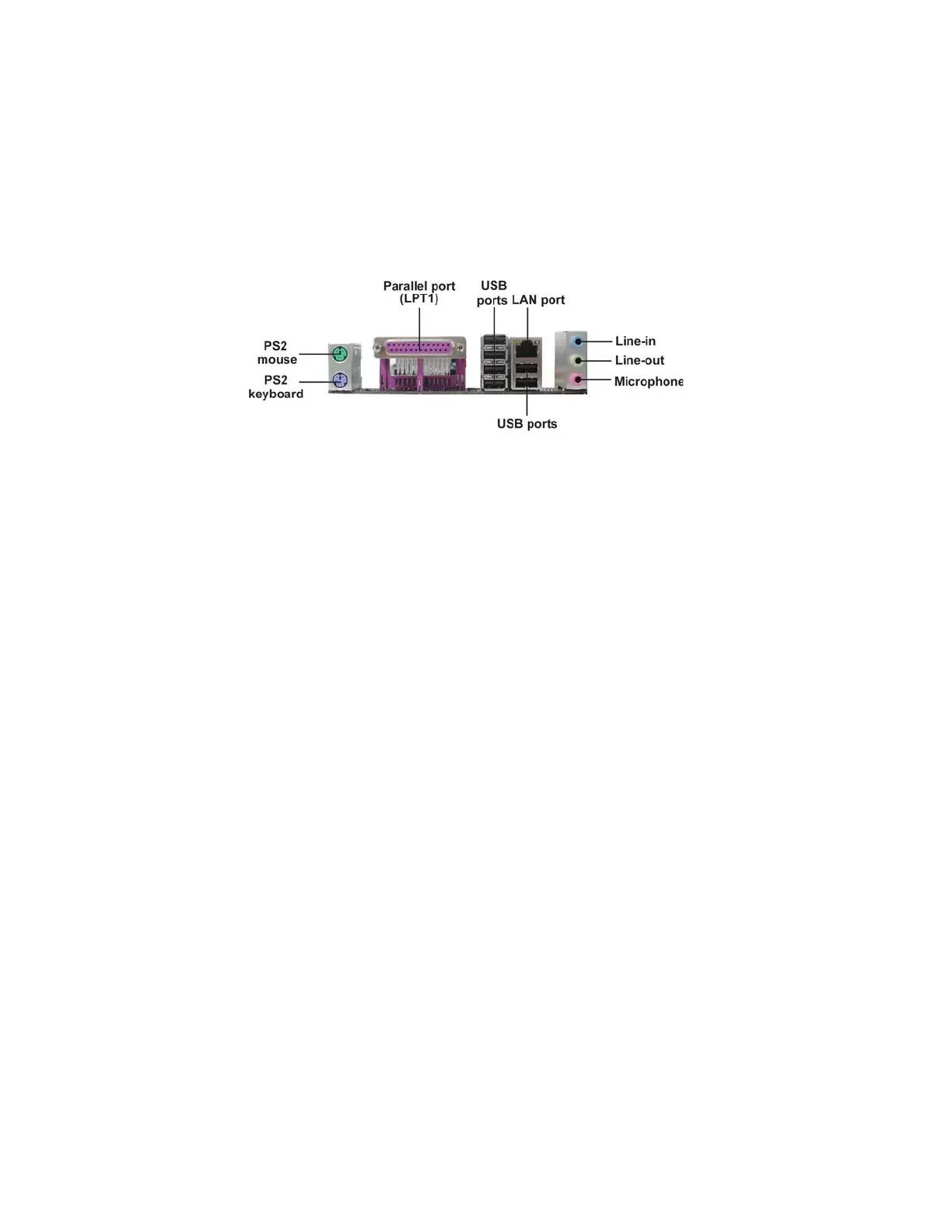

The backplane of the motherboard has the following I/O ports:
Use the upper PS/2 port to connect a PS/2 pointing device.
Use the lower PS/2 port to connect a PS/2 keyboard.
Use the USB ports to connect USB devices.
Audio Ports
LAN Port
USB Ports
PS2 Mouse
PS2 Keyboard
Connect an RJ-45 jack to the LAN port to connect your
computer to the Network.
Parallel Port Use LPT to connect printers or other parallel communica
(LPT1) tions devices.
Use the three audio ports to connect audio devices. The first
jack is for stereo line-in signal. The second jack is for stereo
line-out signal. The third jack is for microphone.
