EemaX EMT1 User Manual

No. Name of Part Qty.
1 Tank Component 1
2 Thermostat 1
3 Temp. Adjust Panel 1
4 Inside Wiring Assembly 1
5 Cross Screws 6
6 Inside Cover 1
7 Bottom Cover 1
8 Indicate Light Cover 1
9 Power Indicate Light 1
10 Support 1 2
11 Support 2 2
12 Thermal Block 1
13 Wire Press Plate 1
14 Heating Element 1
15 Over Heat Limiter 1
16 Heating Element Gasket 1
17 Temp. Control Knob 1
18 Red Circle 1
19 Front Cover 1

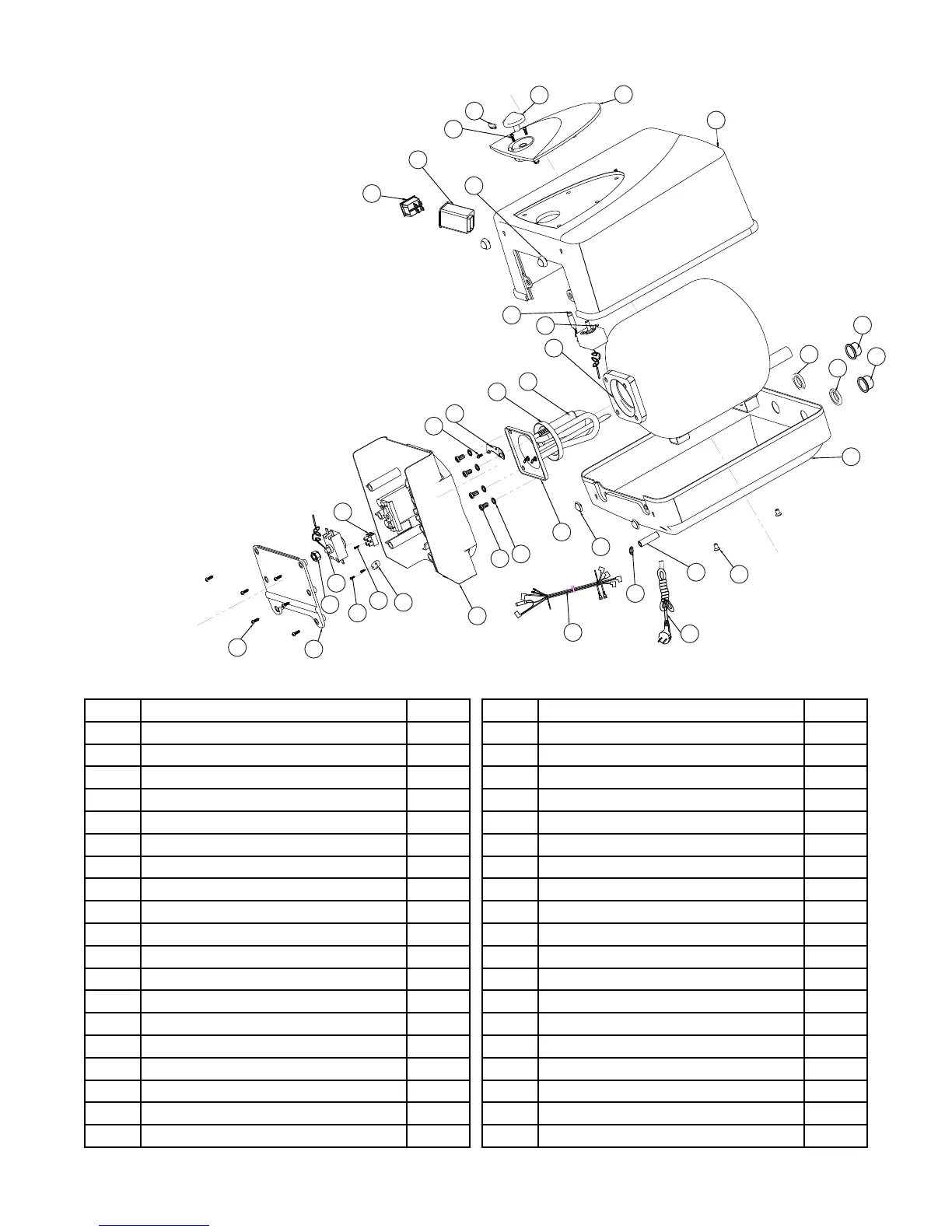

Schematic Disassembly
EMT1 - EMT2.5 - EMT4 - EMT6
Parts List EMT1 - EMT2.5 - EMT4 - EMT6
Page 16
22
9
2
1
7
5
16
33
29
30
12
13
15
34
35
36
23
6
27
14
18
11
32
31
25
37
38
26
20
24
10
8
28
3
21
17
19
4
No. Name of Part Qty.
20 Back Cover 1
21 Power Switch 1
22 Power Switch Box 1
23 Power Cord 1
24 Screw 2
25 Blue Circle 1
26 Power Cord Sheath 1
27 Power Cord Sheath Press 1
28 Cross Screw 2
29 Connect Plate 1
30 Cross Screw 1
31 Flat Gasket 4
32 Copper Screw 4
33 Aluminium Anode Rod 1
34 Bolt 1
35 Cross Screw 1
36 Cross screw 2
37 Red Thread Cover 1
38 Blue Thread Cover 1
