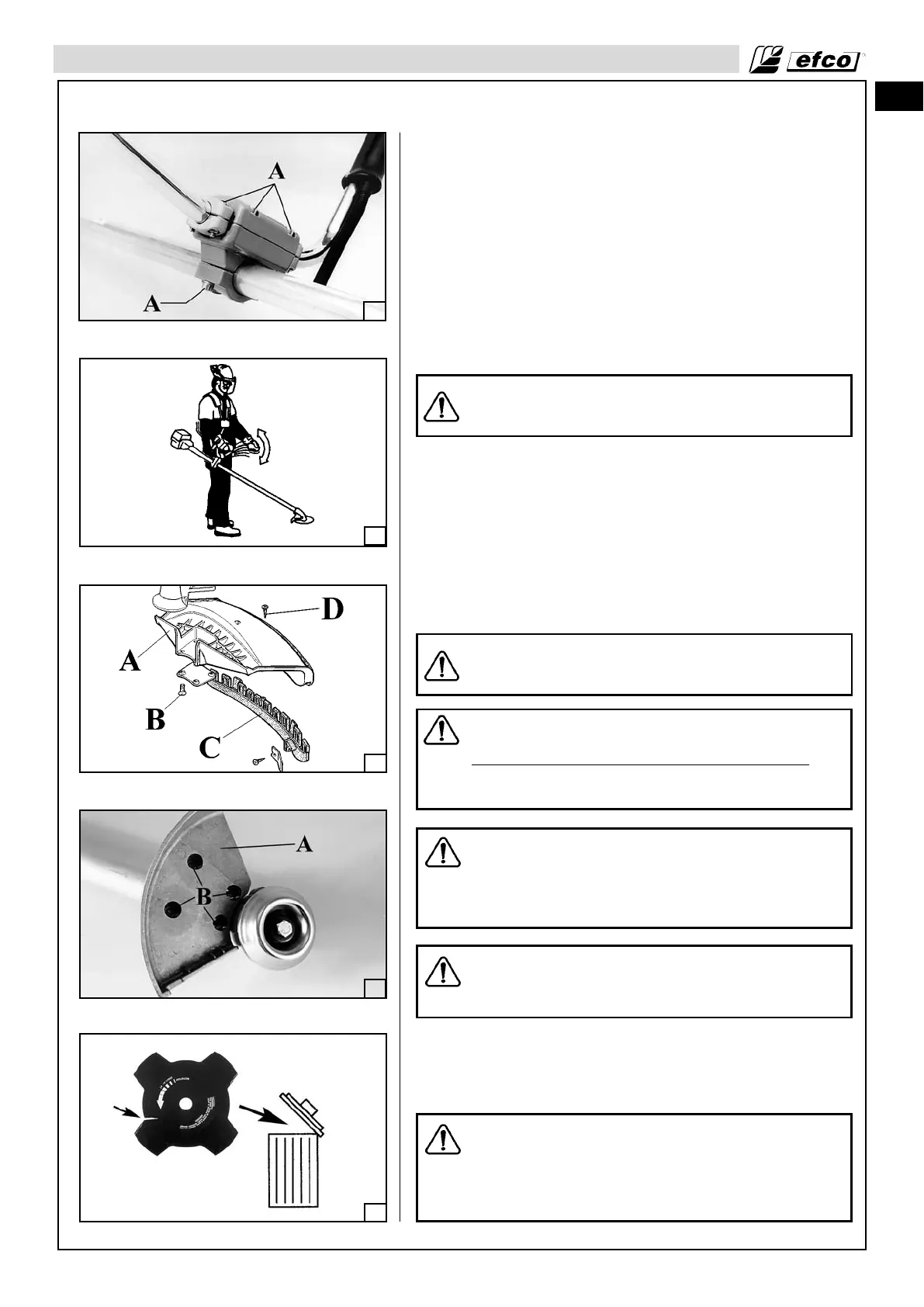

Fitting the handlebar
• Fit the handle bar onto the shaft arm and secure it using screws
(A, Fig.16), washers, and nuts. The handle position is
calculated depending on the requirements of the operator.
• Adjust roughly and tighten the screws slightly.
• Now make a final adjustment, with the machine hanging from
the harness, to obtain the most comfortable working position
(Fig.17). Tighten the screws.
• Make the final adjustment to the right handle and lock it in the
most comfortable position.
WARNING: In mounting the handlebar be careful to
avoid the cables getting twisted.
Fitting the cutting attachment guard
Fitting the safety guard (Fig.18-19)
Fit the blade guard (A) to the shaft arm with screws (B) in a
position allowing the operator to work safely.
NOTE: assemble the trimmer guard (C, Fig.18) when using the
nylon heads. Secure the trimmer guard (C) to the protection
(A) by means of the screw (D).
WARNING: When using discs for wood (22-60 teeth),
always set up metal guard (see Fig.19).
WARNING: Never use a cutting attachment without
an approved guard. See the section on
Recommended cutting attac
hments (Page 10).An
incorrect or faulty guard may lead to serious
personal injury.
WARNING: The deflector provided with your brush
cutter may not protect the operator from all foreign
objects (gravel, glass, wire, etc) thrown by the
rotating cutting attachment.Thrown objects may also
ricochet and strike the operator.
WARNING: Immediately replace a broken or damaged
guard; never try to mount the guard in incorrect
position.
Assembling the cutting attachment
WARNING: When fitting the cutting attachment it is
extremely important that the drive flange engages
correctly in the centre hole of the cutting attachment.
If the cutting attachment is fitted incorrectly it can
result in serious and/or fatal personal injury.
13
16
18
19
20
17
ASSEMBLY
en
